CLASSA 5W/15W/30W
Product ID: ELD1085/ELD1086/ELD1087
Product description
- This series includes ELD1085 single-head 5W, ELD1086 triple-head 15W and ELD1087 five-head 30W anti-glare grille recessed linear spotlights. All models support AC220-240V mains power, equipped with Hongli 1304 premium LED chips and three optional beam angles: 24° narrow spotlight, 36° medium lighting and 50° wide flood light. Each fixture can be embedded into ceiling cutout separately, and multiple units can be spliced seamlessly to form extended long linear light strips. It is widely applied in residential no-main-light ceiling design, shop window display lighting, museum exhibition halls, long corridor wall grazing and cabinet embedded accent lighting. Standardized cutout sizes fit most residential and commercial ceiling construction projects.
- It features professional high color rendering with CRI≥90, and three switchable CCT options (3000K warm white / 4000K natural white / 5000K cool white) to meet demands of atmosphere decoration, daily office work and delicate exhibit display. The reflectors can be customized into pure black, transparent, black-gold, white-gold and other finishes. Each LED is fitted with an individual deep optical baffle to block direct glare and side stray light leakage effectively, avoiding dazzling discomfort and reducing eye strain during long-term indoor use, ideal for exhibition halls, retail stores and studies.
- The thickened integrally die-cast aluminum housing is designed with multiple side heat dissipation holes to build air convection channels, which dissipate concentrated heat from dense multi-LED layout rapidly. It maintains stable temperature under 24/7 nonstop operation, slowing lumen depreciation, color shift and LED burnout to greatly extend service life. Side buckle fastening enables firm installation by pressing the fixture into ceiling cutout, and the light can be pulled down easily for inspection or replacement, saving time and labor during installation and after-sales maintenance.
- With IP44 dustproof and splash-proof protection, it outperforms ordinary IP20 indoor recessed downlights, allowing installation in open kitchens, balcony storage cabinets and dry bathroom areas with slight moisture and dust. It natively supports full set of intelligent lighting protocols including DALI bus dimming, Bluetooth APP group remote control, scene preset memory, D2W dual CCT switching and stepless tunable white. It can connect to building management and smart home systems to realize zoned dimming, timer switch and centralized group linkage control of multiple lights.
- Modular standardized cutout system keeps unified cutout width for single/triple/five-head models, resulting in tiny splicing gaps and continuous neat linear visual effect. CE certified and compliant with international indoor lighting electrical regulations, the minimalist square appearance matches mainstream interior decoration styles including modern, minimalist, light luxury and Italian design. It is qualified for bulk tender procurement of real estate fit-out projects, chain brand stores, cultural art exhibition halls and hotel public area renovation.

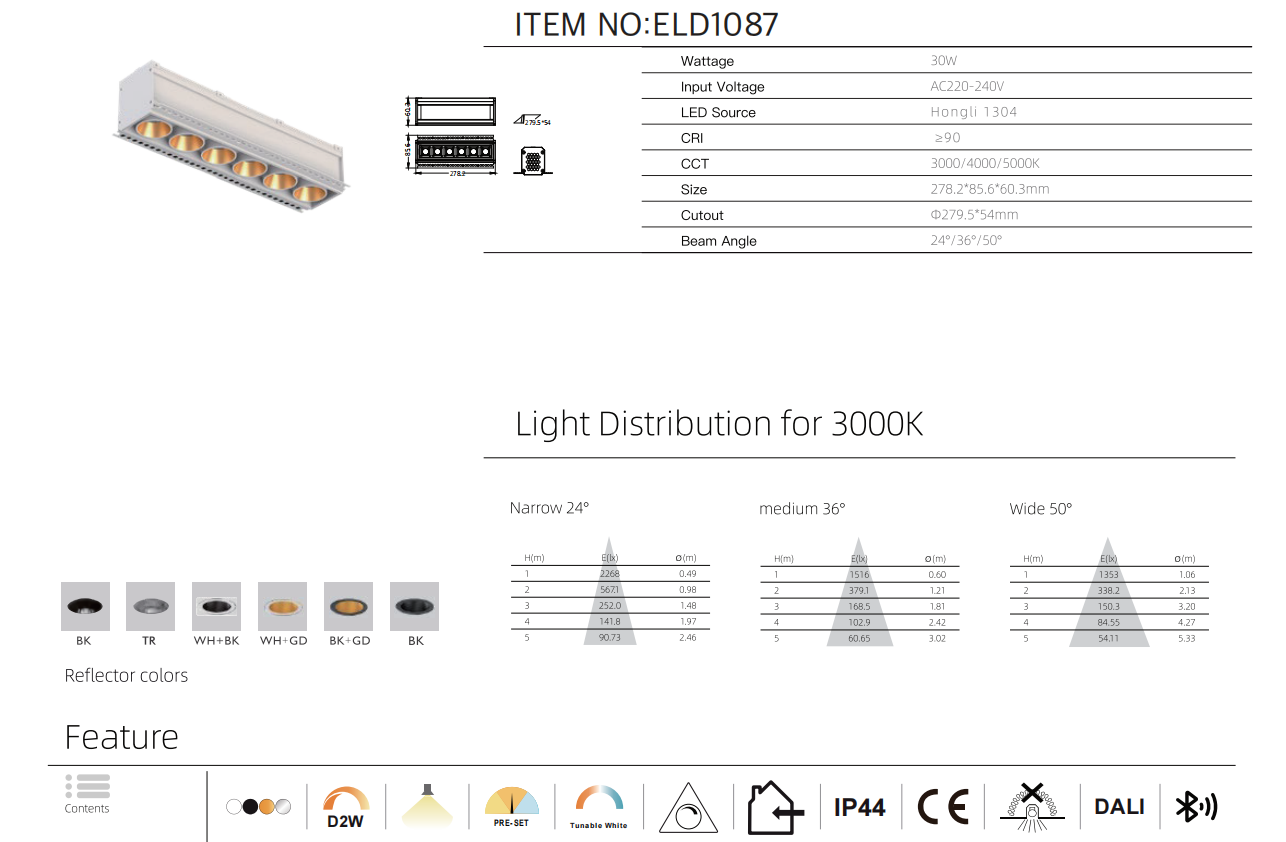

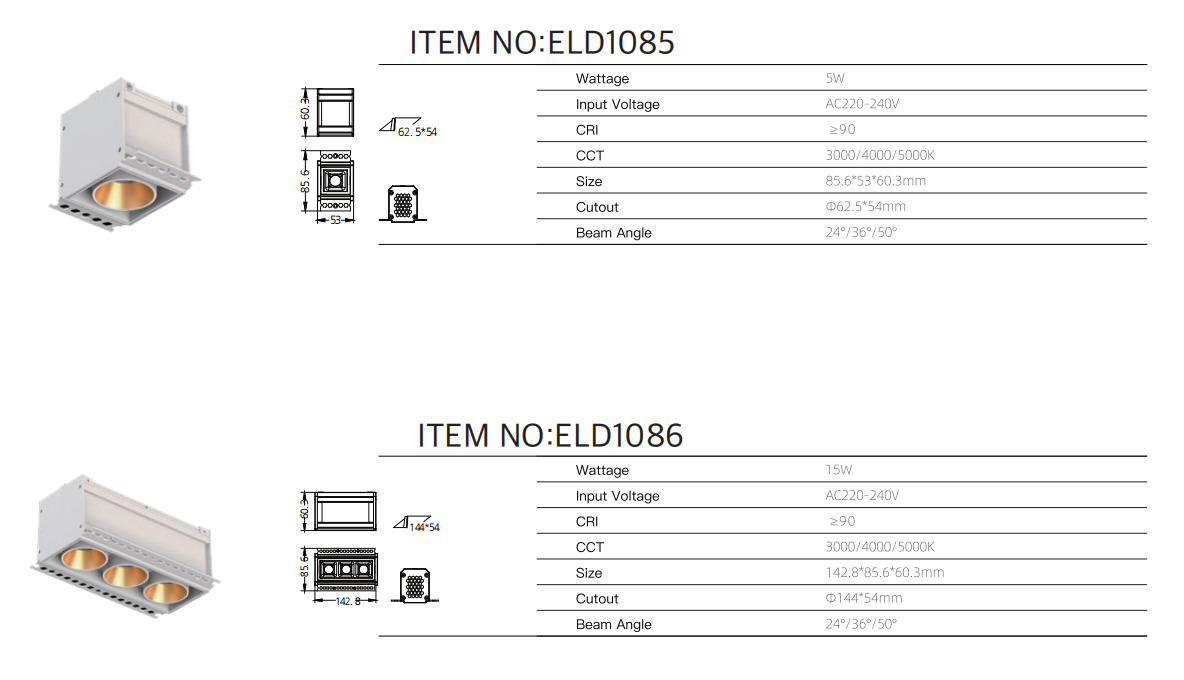

Technical information
