CLASSA 5W/15W/30W
Product ID: ELD1074/ELD1075/ELD1076
Product description

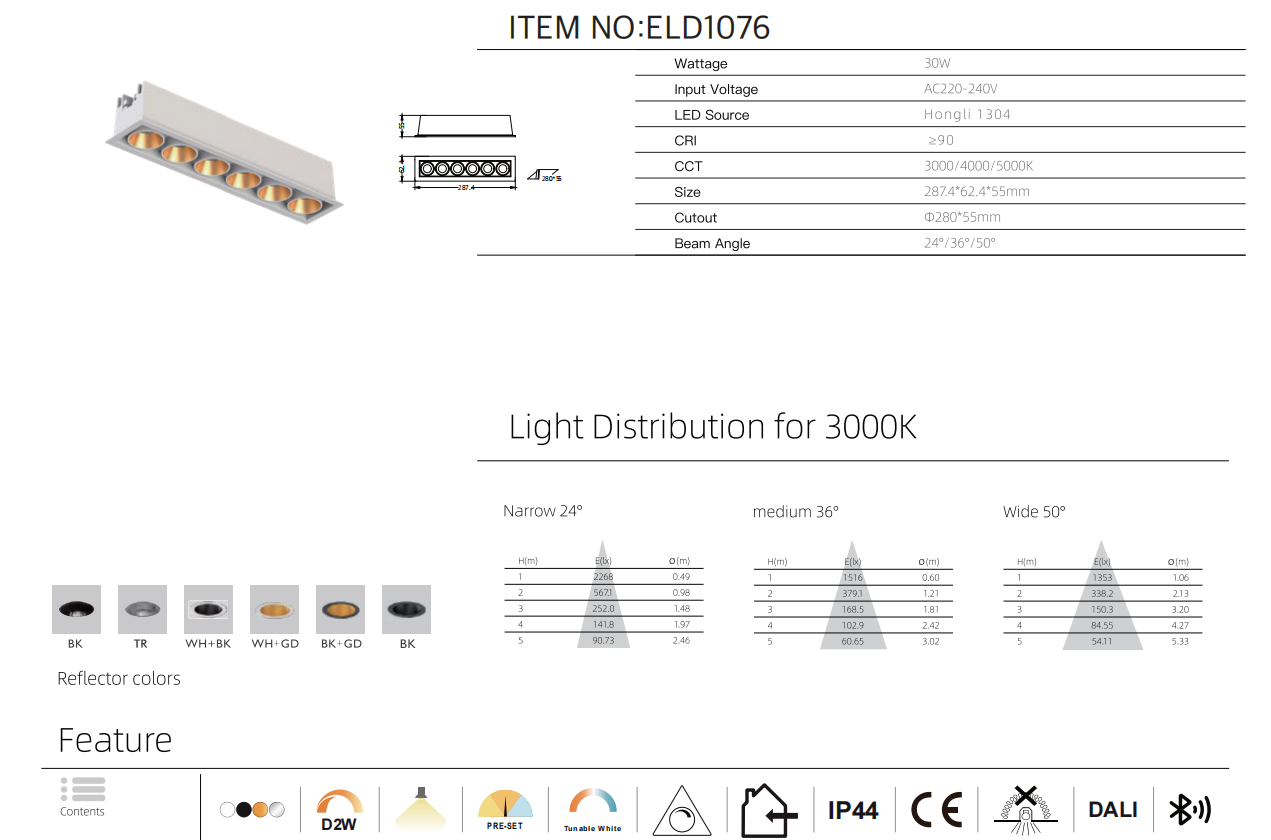

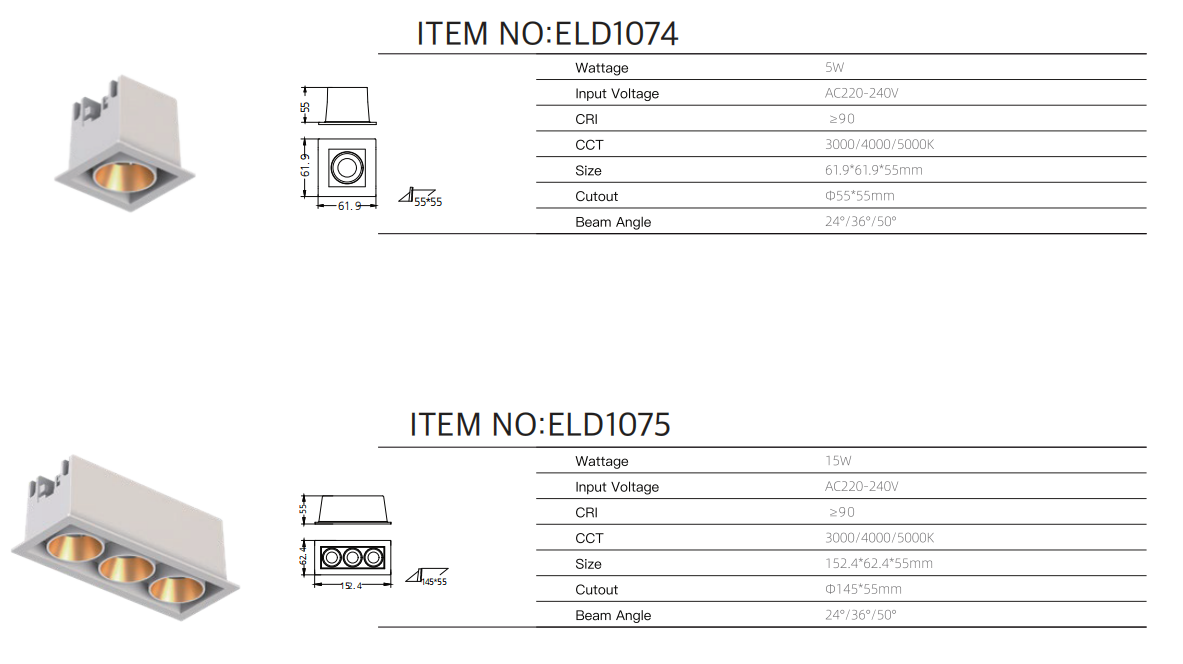

- This series covers ELD1074 single-head 5W, ELD1075 triple-head 15W and ELD1076 five-head 30W recessed linear grille spotlights. All models work with AC220-240V mains power, equipped with Hongli 1304 LED chips and three optional beam angles: 24°/36°/50°. Each fixture can be recessed into ceiling individually, and multiple units can be spliced seamlessly to form long linear light strips. It is widely used in no-main-light ceiling design, shop window display lighting, museum exhibition areas, corridor wall grazing and cabinet embedded lighting, with standardized cutout sizes suitable for residential and commercial ceiling construction.
- It adopts professional high CRI≥90 color rendering with three switchable CCT options (3000K/4000K/5000K) for warm ambient light, neutral task light and cool clear illumination. The reflectors support customized finishes including black-gold, white-gold, pure black and transparent. Each deep reflector realizes precise light control to block direct glare and stray light leakage, avoiding dazzling discomfort and faithfully restoring color & texture of paintings, garments and exhibits to reduce eye strain during long-time lighting.
- The integrally die-cast aluminum housing builds circulating convection heat channels inside the cavity to dissipate concentrated heat from dense LED layout rapidly. It slows lumen depreciation and color shift during 24/7 continuous operation to cut down failure rate and extend service life significantly. Side clip snap-in installation enables fast fixing by pressing into ceiling cutout, and the fixture can be pulled down for maintenance or replacement easily, simplifying on-site installation and after-sales service.
- IP44 dustproof and splash-proof protection outperforms standard IP20 recessed lights, allowing application in open kitchens, balcony cabinets and dry bathroom areas with mild humidity and dust. Full intelligent functions are built in, including DALI bus dimming, Bluetooth APP group control, scene preset memory, D2W dual CCT switching and stepless tunable white. It can be connected to building management and smart home systems to realize zoned dimming, timer scheduling and centralized group management of multiple fixtures.
- Modular standardized design keeps unified cutout width across single/triple/five-head models, leading to tiny splicing gaps and neat linear layout. CE certified and compliant with international indoor lighting electrical standards, the minimalist square outline matches modern, minimalist, light luxury and Italian decoration styles. It is well-suited for bulk tender procurement of real estate fit-out projects, chain retail stores, cultural exhibition halls and hotel public area renovation.
Technical information
