CLASSA 10*2W/15*2W
Product ID: ELD1029/ELD1030
Product description
- This series has two linear recessed grille spotlight models: ELD1029 (10 heads, 20W) and ELD1030 (15 heads, 30W). It works with standard AC220-240V mains power, adopts original OSRAM 3030 LED chips, and supports three optional beam angles: 15° narrow spotlight, 24° medium illumination and 38° wide flood light. Each fixture can be recessed into ceiling separately, or multiple units can be spliced end to end to form ultra-long linear light strips. Widely applied in shop windows, museum exhibition areas, long corridors, living room no-main-light ceiling & wall grazing, and wardrobe linear lighting. The ultra-slim body is perfectly compatible with most shallow ceiling structures.
- It delivers high color rendering with CRI≥90, and supports three switchable CCT modes: 3000K warm ambient light, 4000K natural white and 5000K cool white. It accurately restores the original color and texture of exhibits, garments, paintings and cabinet ornaments. Every LED is equipped with an individual deep anti-glare baffle to effectively block direct glare and side light leakage, avoiding dazzling discomfort during direct viewing and relieving eye strain during long-time indoor activities, which fits museums and retail stores perfectly.
- The integrally die-cast aluminum housing forms a through convection heat channel inside the long cavity to dissipate concentrated heat from dense multi-LED layout rapidly. It maintains stable temperature even under 24/7 nonstop operation, slowing lumen depreciation, color shift and LED burnout to extend service life greatly. Dual side spring clips enable quick snap-in installation by pressing into ceiling cutouts, and the fixture can be pulled down easily for inspection or replacement, simplifying construction and after-sales maintenance.
- With IP44 dustproof and splash-proof rating, it has better moisture and dust resistance than ordinary IP20 indoor downlights, so it can be used in open kitchens, balcony cabinets and dry bathroom areas with slight vapor and dust. It natively supports complete intelligent control protocols including DALI bus dimming, Bluetooth APP group remote control, scene preset memory, D2W dual CCT switching and stepless tunable white. It can be connected to building management and smart home systems to realize zoned dimming, timer switch and group linkage of multiple lights.
- Modular standardized cutout size keeps the same width across all length variants, resulting in tiny splicing gaps and continuous neat linear visual effect. CE certified and compliant with international indoor lighting electrical standards, its minimalist long rectangular appearance matches mainstream interior styles including modern, minimalist, light luxury and Italian design. It is ideal for bulk tender procurement of real estate fit-out projects, chain retail stores, art galleries, cultural exhibition halls and hotel public corridor renovation.

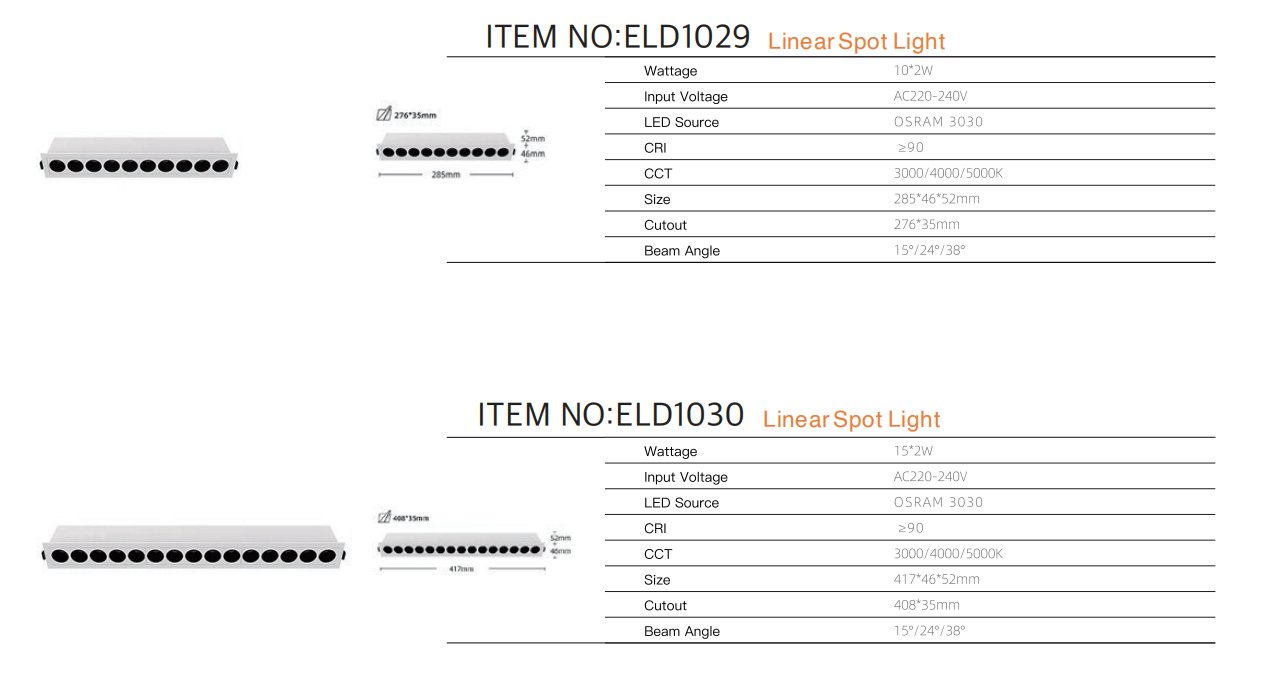

Technical information
