CLASSA 4*2W/5*2W/9*2W
Product ID: ELD1026/ELD1027/ELD1028
Product description
- This series includes ELD1026 (4 heads, 8W), ELD1027 (5 heads, 10W) and ELD1028 (9 heads, 18W) recessed grille spotlights in square and linear shapes. All models support standard AC220-240V mains power, equipped with genuine OSRAM 3030 LED chips and three optional beam angles: 15°/24°/38°. Each unit can be installed separately via ceiling cutout, and multiple fixtures can be spliced seamlessly to form large linear lighting arrays. Widely applied in no-main-light ceiling systems, exhibition cabinets, retail stores, corridor wall grazing and villa accent lighting, the ultra-slim body fits most shallow ceiling structures.
- It features professional high color rendering with CRI≥90, plus three switchable CCT options (3000K warm white / 4000K natural white / 5000K cool white) to meet ambient decoration, daily work and delicate display lighting demands. Each LED is fitted with an individual deep anti-glare baffle to block direct glare and side stray light, eliminating dazzling discomfort during direct viewing and reducing eye strain for long-term use in studies, exhibition halls and retail spaces.
- The integrally die-cast aluminum housing builds circulating convection heat channels inside the cavity to dissipate concentrated heat from multi-LED layout efficiently even inside enclosed ceiling gaps. It slows lumen depreciation and color shift during 24/7 continuous operation to greatly extend service life. Dual side spring clips enable quick snap-in installation, and the fixture can be pulled down easily for inspection or single unit replacement, simplifying construction and after-sales maintenance.
- IP44 dustproof and splashproof protection surpasses standard IP20 recessed downlights, allowing installation in dry bathroom zones, balcony cabinets and open kitchens with mild humidity and dust. Full intelligent control functions are built in, including DALI bus dimming, Bluetooth APP group control, scene preset, D2W dual CCT switching and stepless tunable white. It can connect to building management and smart home systems for zone dimming, timer scheduling and centralized group management of multiple lights.
- Modular standardized cutout design ensures tiny splicing gaps and neat linear layout when combined. CE certified and compliant with international indoor lighting electrical regulations, the minimalist square outline matches modern, minimalist, light luxury and Italian decoration styles perfectly. It is qualified for bulk tender procurement in real estate fit-out projects, chain brand stores, cultural art exhibition halls and hotel guest room renovation.

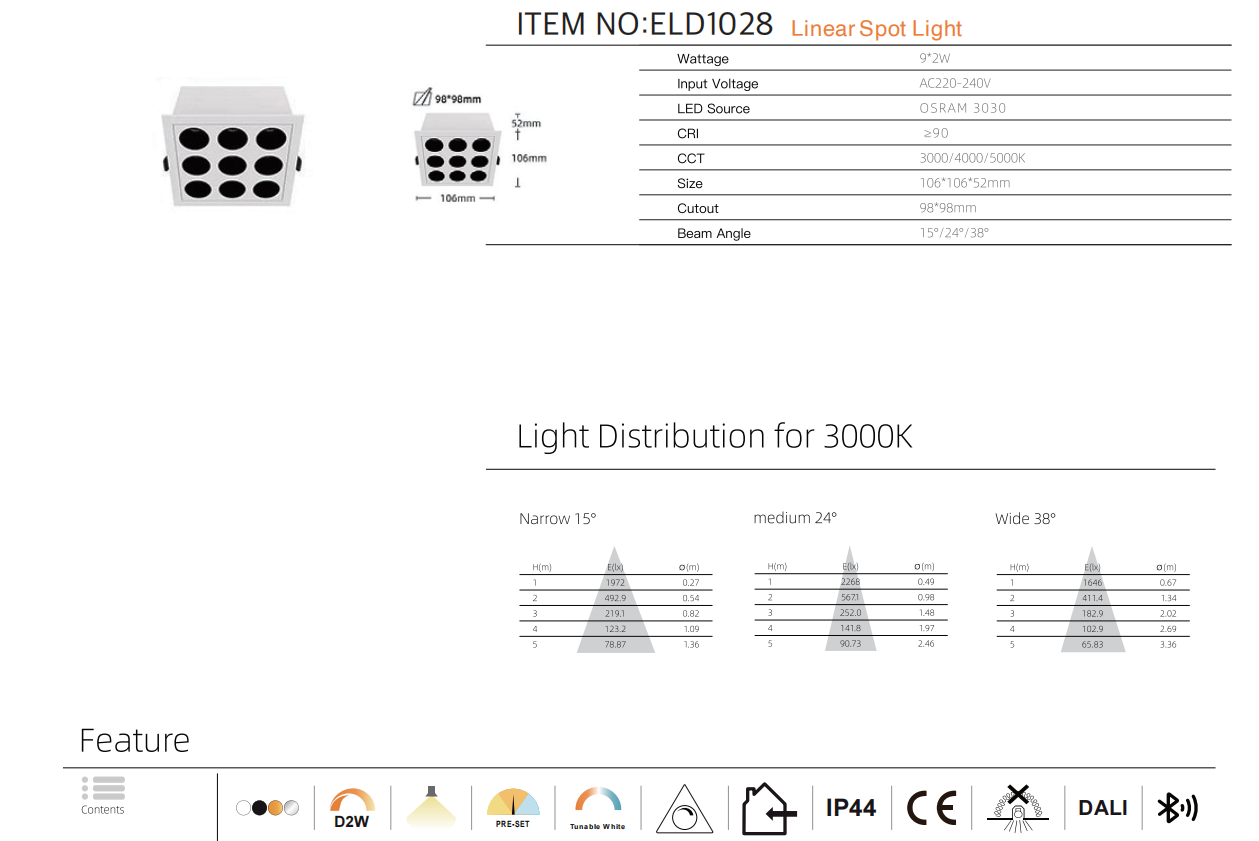

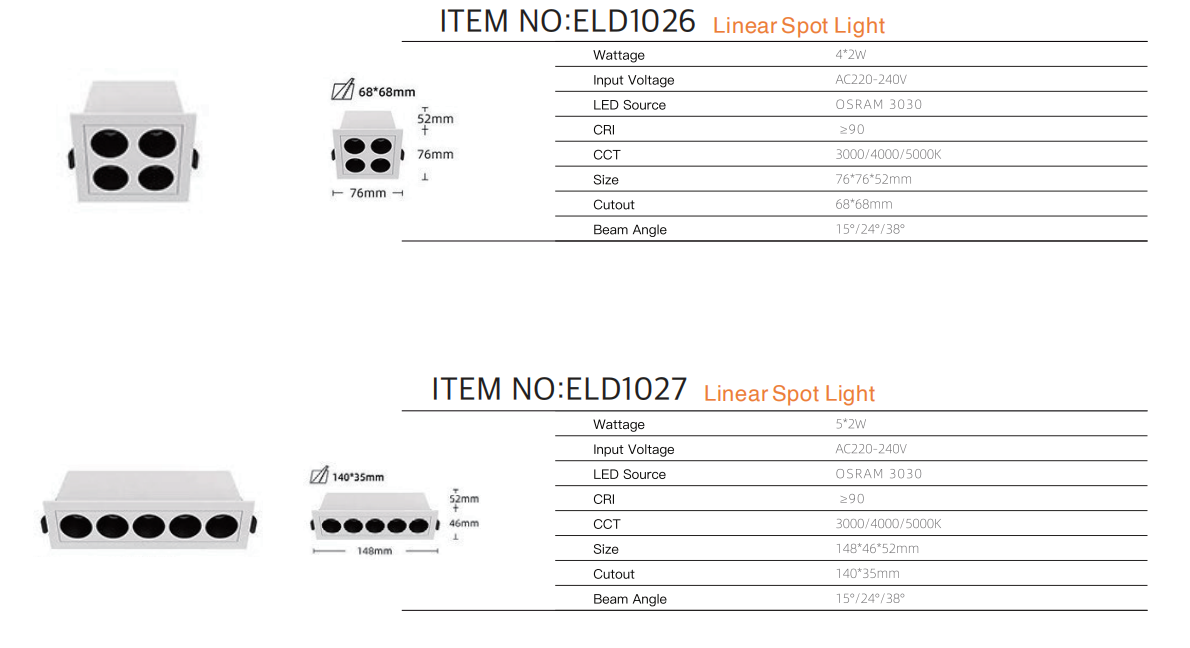

Technical information
