CLASSA 3W/2*2W/3*2W

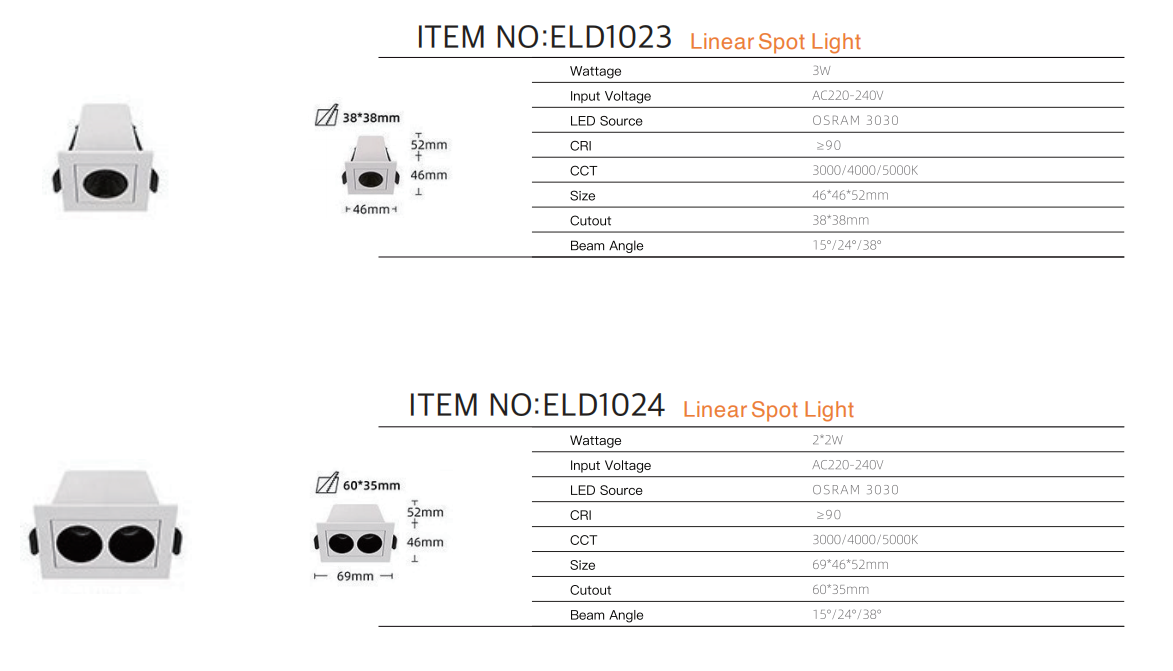

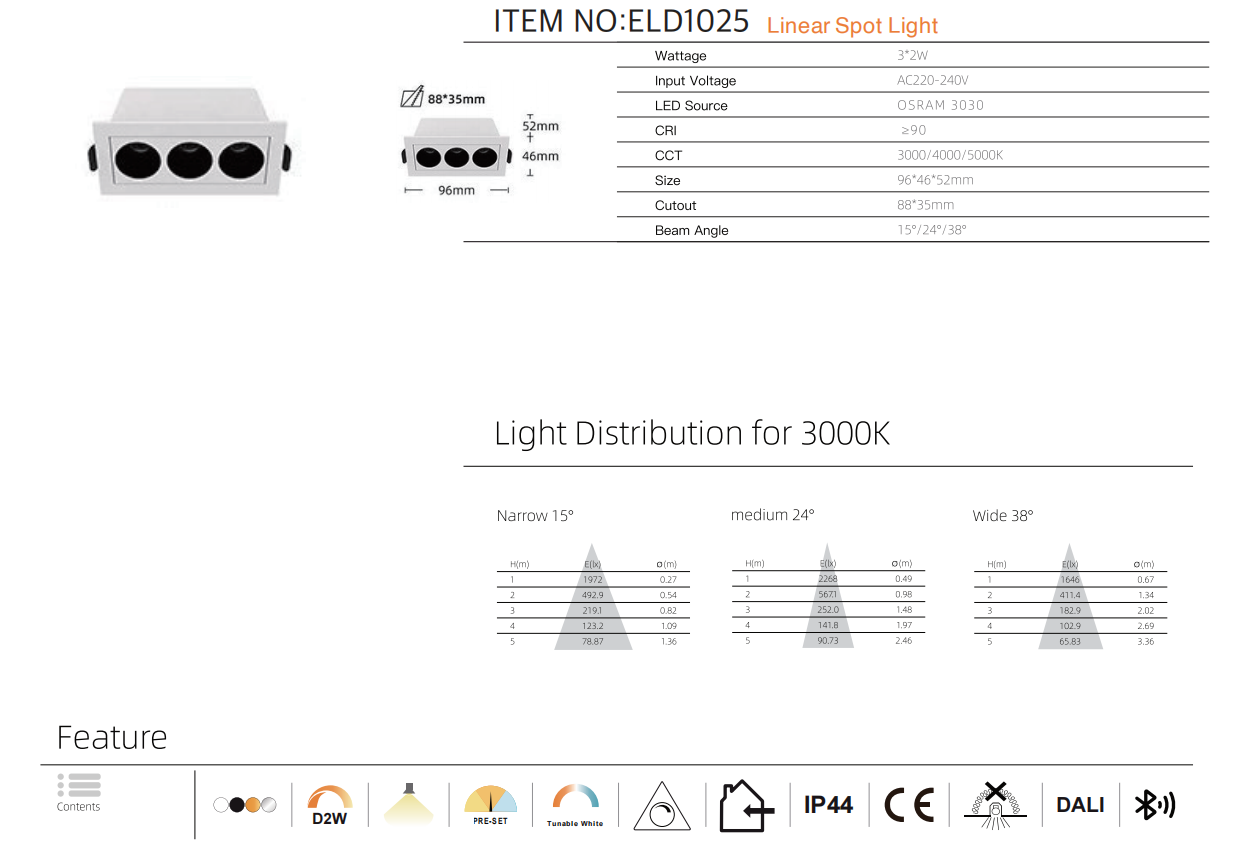

Product ID: ELD1023/ELD1024/ELD1025
Product description
- This series covers three models: single-head ELD1023 (3W), double-head ELD1024 (22W) and triple-head ELD1025 (32W) recessed linear spotlights with standardized cutout sizes and universal AC220-240V input voltage. Equipped with original OSRAM 3030 LED chips and three optional beam angles (15°/24°/38°), they can be used individually or seamlessly spliced into long linear lighting arrays. Ideal for no-main-light ceiling design, wardrobe shelves, wine display cabinets, corridor wall grazing and minimalist commercial decoration, the ultra-slim body fits shallow ceiling structures perfectly.
- With CRI≥90 high color rendering and three switchable CCT options (3000K/4000K/5000K), it delivers warm ambient tone, neutral task light and cool clear illumination to reproduce authentic color and texture of cabinet ornaments, paintings, fabrics and exhibits. The deep recessed anti-glare baffle effectively blocks direct glare and stray light leakage to avoid eye discomfort during direct viewing and improve long-term visual comfort.
- Integrally die-cast aluminum housing with rear convection heat channels dissipates chip heat rapidly even inside enclosed ceiling cavities, slowing lumen depreciation and color shifting during round-the-clock operation to extend service life. Spring clip snap-in installation enables quick fixing by pressing into ceiling cutout, and easy removal for maintenance or replacement with simple downward pull, greatly simplifying on-site construction and after-sales service.
- IP44 dustproof and splash-proof protection outperforms ordinary IP20 indoor downlights, allowing application in dry bathroom areas, balcony cabinets and open kitchens with slight humidity and dust. It natively supports full intelligent functions including DALI bus dimming, Bluetooth APP group control, scene preset, D2W dual CCT switching and tunable white adjustment, which can be integrated into building management and smart home systems for zone dimming, timer scheduling and multi-fixture group management.
- Modular standardized design with progressive cutout dimensions for single/double/triple-head models enables seamless gap-free splicing for neat linear layout. CE certified and compliant with international indoor lighting electrical standards, the minimalist outlook matches modern, minimalist, light luxury and Italian interior styles. It is well-suited for bulk tender procurement of real estate fit-out projects, chain retail stores, cultural exhibition halls and hotel guest room renovation.
Technical information
