CELEBI100S 4W~24W
Product ID: EC2011/EC2012/EC2013
Product description

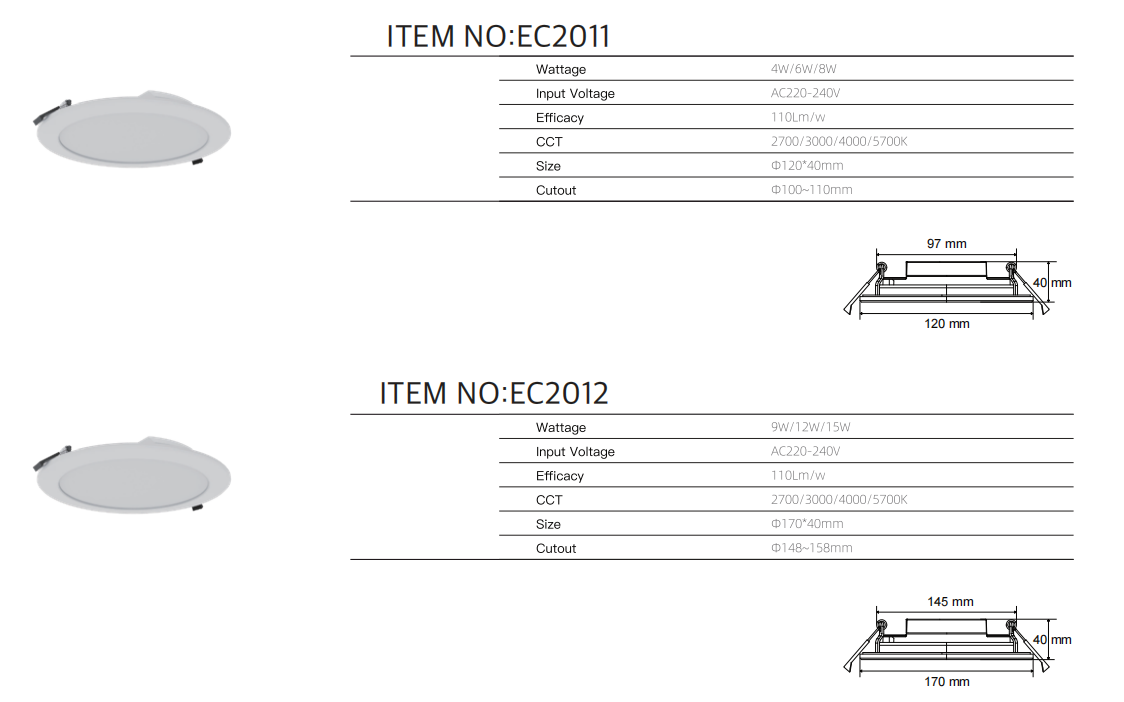

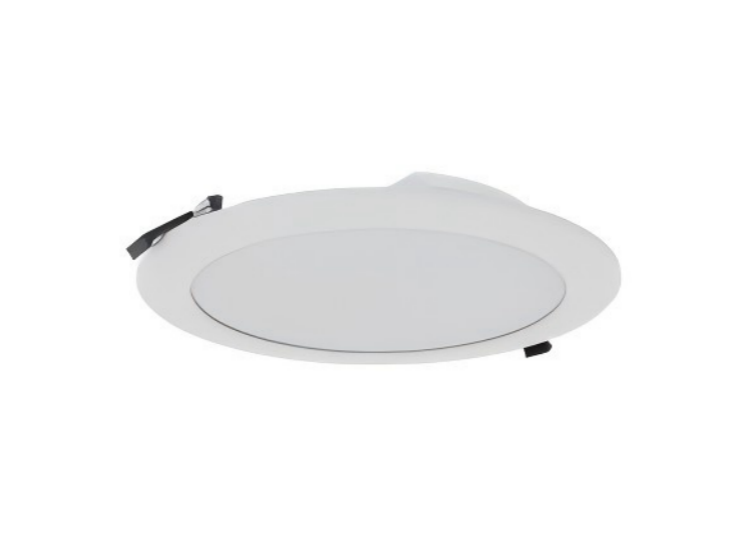

- This series consists of three ultra-slim round recessed anti-glare panel downlights EC2011, EC2012 and EC2013 with complete graded power options: EC2011 4W/6W/8W, EC2012 9W/12W/15W, EC2013 18W/21W/24W. The ultra-thin body is only 40mm thick, suitable for narrow steel keel ceilings and fine decoration ceilings with limited depth. All models work with AC220-240V mains supply. Multiple cutout sizes fit whole-house no-main-light residential design, retail spaces, office corridors, hotel guest rooms and old house renovation with identical pre-drilled holes, offering high compatibility for both new construction and retrofitting projects.

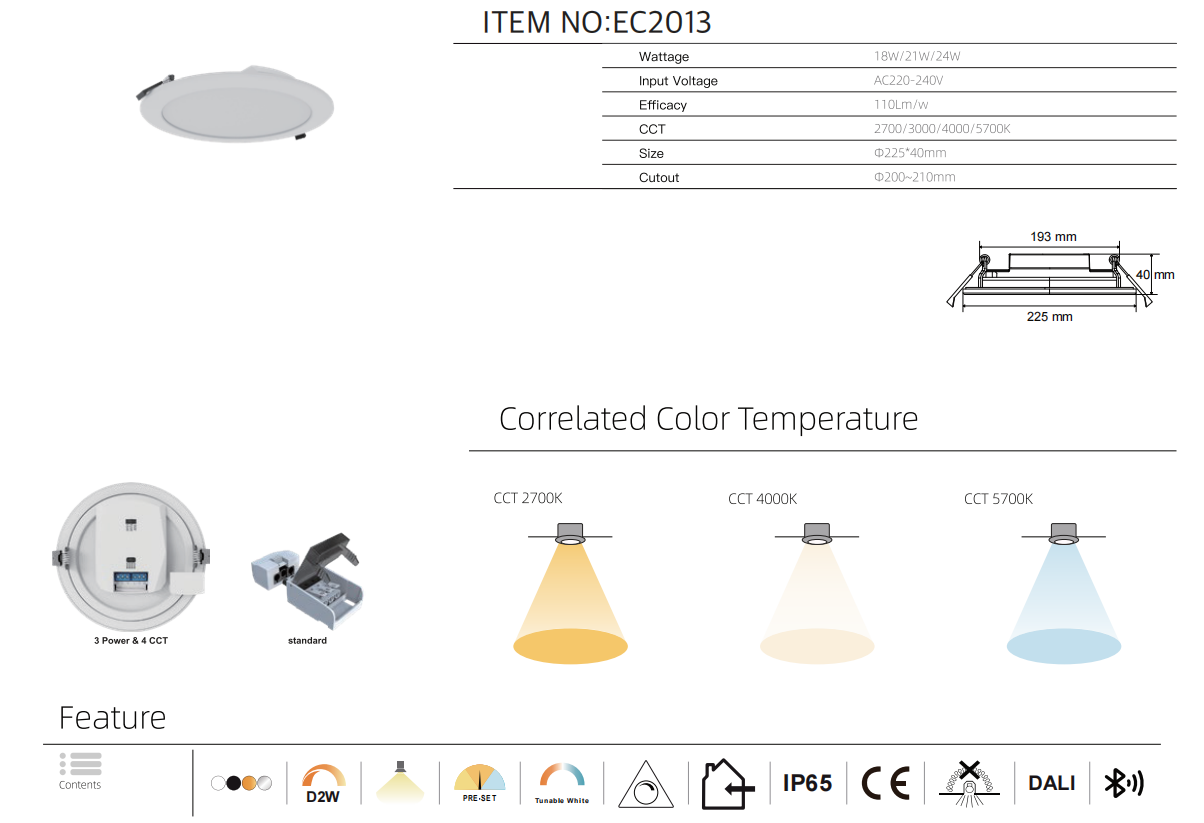

- Four CCT options (2700K/3000K/4000K/5700K) can be switched without rewiring the driver, enabling one-touch adjustment among warm yellow, warm white, neutral natural light and cool white light to satisfy lighting needs for bedroom ambiance, living room main lighting, merchandise color rendering and high-bright corridor illumination. Luminous efficacy reaches 110lm/W with excellent photoelectric conversion efficiency, low power draw and strong brightness. Slow lumen depreciation during long operation ensures energy efficiency and long stable service life.
- The large-area diffused light structure delivers even scattered illumination without harsh hotspots or obvious light-dark edges, achieving premium anti-glare performance to avoid direct glare and relieve eye strain during prolonged use. The wide luminous surface covers a large zone per fixture, greatly reducing installation quantity and cutting procurement & labor construction cost. Spring clip recessed mounting provides stable tension to prevent falling off, and the lamp sits flush with the ceiling for a minimalist invisible look.
- The integrated rear heat sink with built-in convection channels dissipates heat efficiently across all power ratings during continuous operation, preventing LED lumen depreciation and flicker burnout caused by heat buildup inside enclosed ceilings. EC2013 is upgraded to IP65 dustproof and waterproof rating for dry bathroom zones, balconies and semi-open damp areas, while other models adopt standard IP20 indoor protection. The modular split design separates driver and light panel, allowing individual replacement of faulty components instead of removing the entire fixture from ceiling during maintenance.
- It natively supports full extended intelligent protocols including DALI bus dimming, Bluetooth group linkage, D2W dual CCT, scene preset and Tunable White stepless color tuning. It can be connected to building central control and whole-house smart home systems to realize zoned dimming, timed switching and one-touch multi-fixture scene linkage. Certified with CE in compliance with global indoor lighting standards, it is widely deployed in bulk lighting projects such as furnished apartments, chain retail stores, star hotels, office common areas and whole-house no-main-light villa design.
Technical information
