SUPER SLIM DALI SURFACE MOUNTED DOWN LIGHTS 6W
Product ID: EC1001
Product description

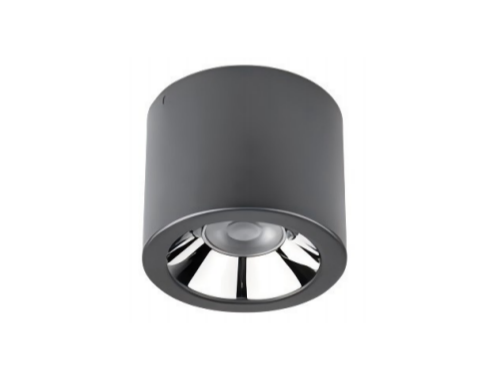

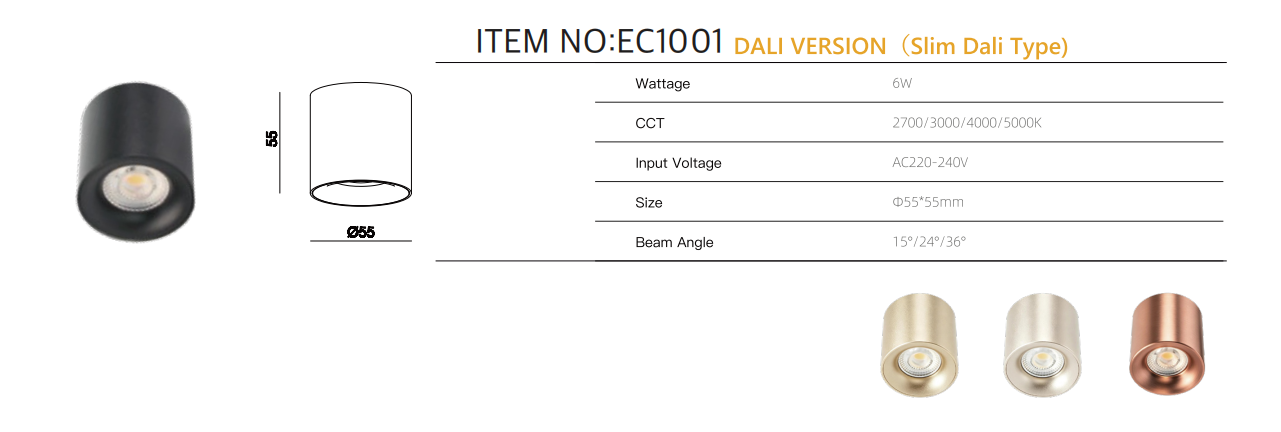

- It is a mini DALI smart surface-mounted anti-glare cylindrical spotlight with 6W power. The ultra-compact dimension is only Φ55×55mm. No ceiling cutout is required; it is fixed via screw base directly. Ideal for exposed beam ceilings, cabinet built-in installation, entryway & wardrobe accent lighting, picture highlighting, old house renovation without ceiling demolition and shelf merchandise focal lighting. Equipped with native DALI dimming driver and compatible with universal AC220-240V mains voltage, it is specially designed for intelligent building and whole-house dimming systems.
- Four CCT options (2700K/3000K/4000K/5000K) support wiring-free on-site switching among warm yellow, warm white, neutral natural light and cool white light to flexibly fit ambiance creation, basic illumination, merchandise color rendering and high-bright accent lighting. The deeply recessed cup anti-glare structure conceals the light source inside the housing to eliminate glaring hotspots during direct viewing, delivering excellent UGR performance and reducing eye strain under close-range use.
- Three narrow beam angles 15°/24°/36° are standard for precise spotlighting with minimal stray light. The ultra-narrow 15° angle is perfect for wall grazing on paintings and sculptures; 24° is widely used for single-item focus in shop windows and display cabinets; 36° provides small-area ambient lighting. Directional beam avoids light waste, and the tiny form factor achieves professional spotlight precision for refined decorative lighting design.

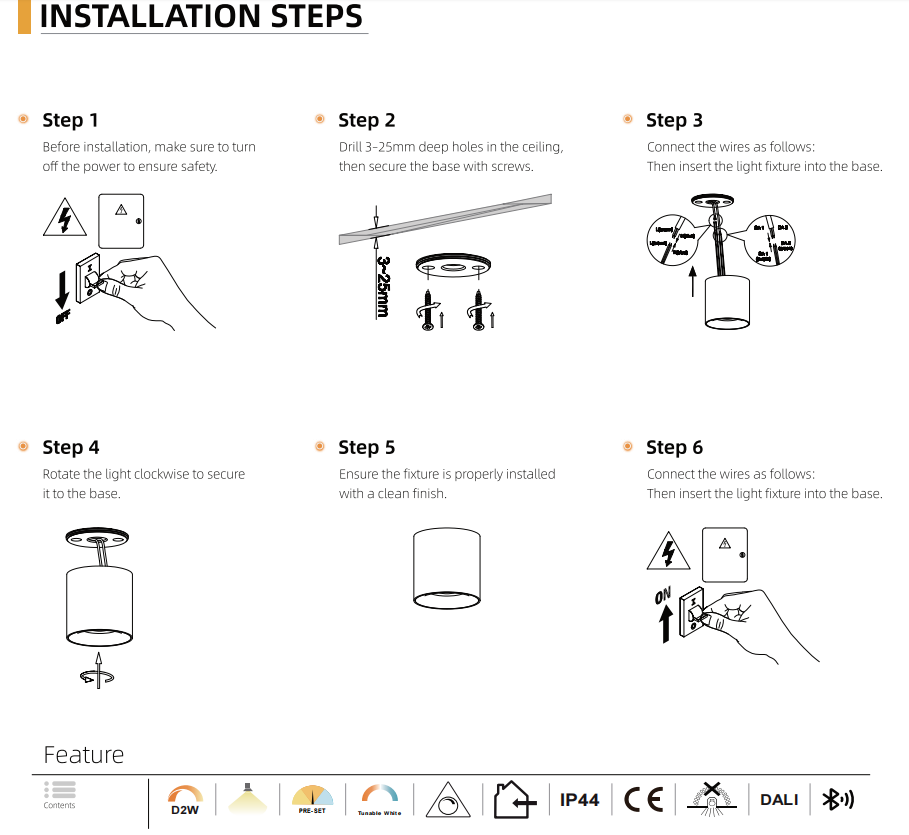

- Adopting split base locking installation, users fix the base with screws first then wire and snap on the lamp body, bringing high construction tolerance. Faulty fixtures can be directly detached and replaced without removing the base and rewiring. The full aluminum integrated housing ensures efficient heat conduction within the miniature size to prevent lumen depreciation caused by heat buildup inside enclosed cabinets and ceiling gaps. With IP44 ingress protection against splash water and dust, it is applicable to balconies, dry bathroom zones and semi-open storage areas.
- A native standard DALI dimming driver is built-in to support 0~100% stepless dimming via DALI bus, compatible with DALI smart panels, building central control, Bluetooth group linkage and scene preset. Extended smart functions including D2W dual CCT and Tunable White tunable color temperature are available. Certified with CE in compliance with international indoor lighting standards, it is widely deployed in intelligent dimming projects such as hotel guest room accent points, furnished apartments, exhibition halls, retail windows and detail no-main-light villa lighting.
Technical information
