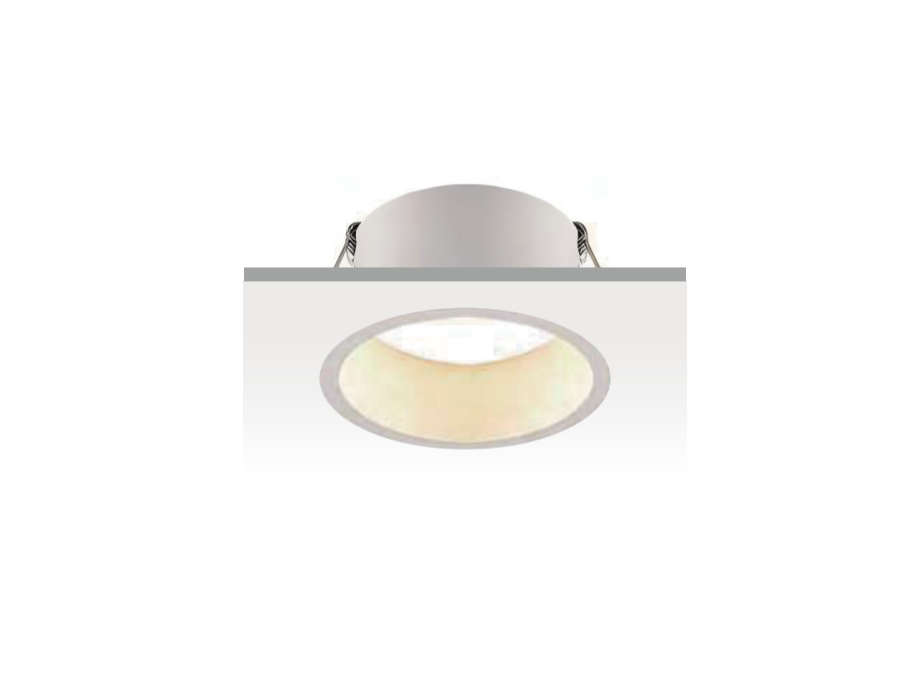

AQUA300S 5W/7W/12W
Product ID: ED2001/ED2002/ED2003
Product description
- This series includes three mini ultra-slim anti-glare recessed downlights: ED2001 (5W), ED2002 (7W) and ED2003 (12W). All adopt original Bridgelux LED chips and external drivers from well-known top brands Lifud & Eaglerise, compatible with AC220-240V mains supply. Cutout sizes are Φ55/75/92mm respectively. With an ultra-thin body, they are specially designed for ceilings with extremely limited depth, narrow steel keel ceilings, cabinet built-in installation, accent lighting for entryways & wardrobes and old house renovation with tiny pre-drilled holes. Multiple power options in compact sizes deliver high versatility for detail accent lighting in fine decoration projects.
- The glare index is strictly controlled at UGR＜10, reaching premium soft anti-glare grade. Equipped with a diffused light cavity, it emits gentle scattered light without harsh direct rays or obvious hotspots, eliminating glaring light during direct viewing and relieving eye strain during long-time lighting for hallways, entryways and cabinets. CRI≥90 restores warm and natural color tone for ornaments, soft furnishings and wall materials. Luminous efficacy ranges from 110 to 140lm/W with high efficiency and low power draw, mild lumen depreciation over long service hours, excellent energy saving and long stable lifespan for low-wattage accent applications.
- Three CCT options (3000K/4000K/6000K) support wiring-free on-site switching: warm yellow light for entryway ambiance and bedroom auxiliary lighting, neutral light for daily corridor illumination, cool white light for high-bright cabinet & storage room accent lighting. A unified wide 95° flood beam angle delivers even illumination with soft light transition and no harsh edges. One compact downlight evenly lights up a small area, ideal for scattered no-main-light ambient base lighting throughout the space.
- The integrated ultra-slim aluminum housing ensures effective heat dissipation within a miniature body size, preventing LED degradation caused by heat buildup inside enclosed ceilings and narrow cabinet spaces. The lamp achieves IP44 splash-proof and dust-proof protection, suitable for balconies, dry bathroom zones and entryways with mild humidity and dust. Screw-free recessed mounting with durable spring clips prevents loosening and falling. The ultra-thin fixture sits completely flush with the ceiling for a minimalist invisible look, with easy disassembly for maintenance and customizable housing colors.
- It natively supports full intelligent control protocols including DALI bus dimming, Bluetooth group control, D2W dimming, scene preset and Tunable White stepless color adjustment. It can be connected to smart home and building central control systems for zoned dimming, scheduled switching and one-click multi-fixture scene linkage. With CE certification complying with global indoor lighting electrical standards, it is widely applied in refined lighting projects such as furnished apartment detail lighting, hotel guest room accent points, whole-house no-main-light villa design and retail window display accent illumination.

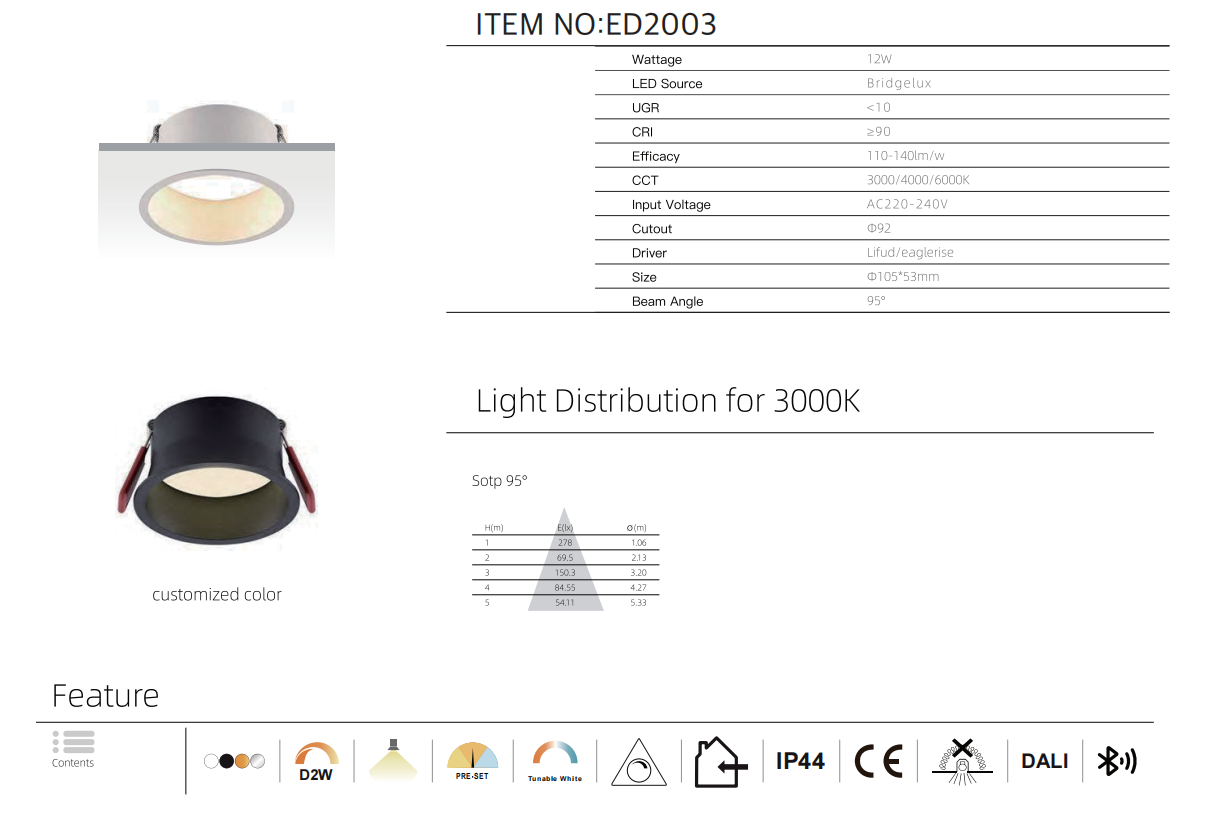

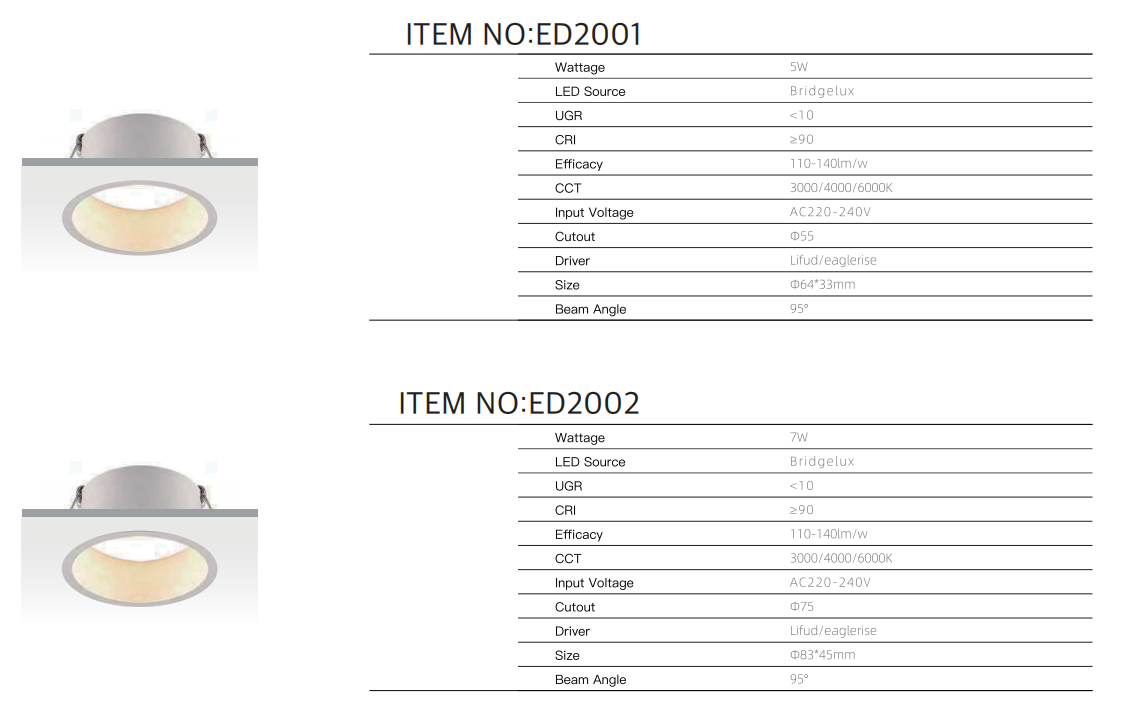

Technical information
