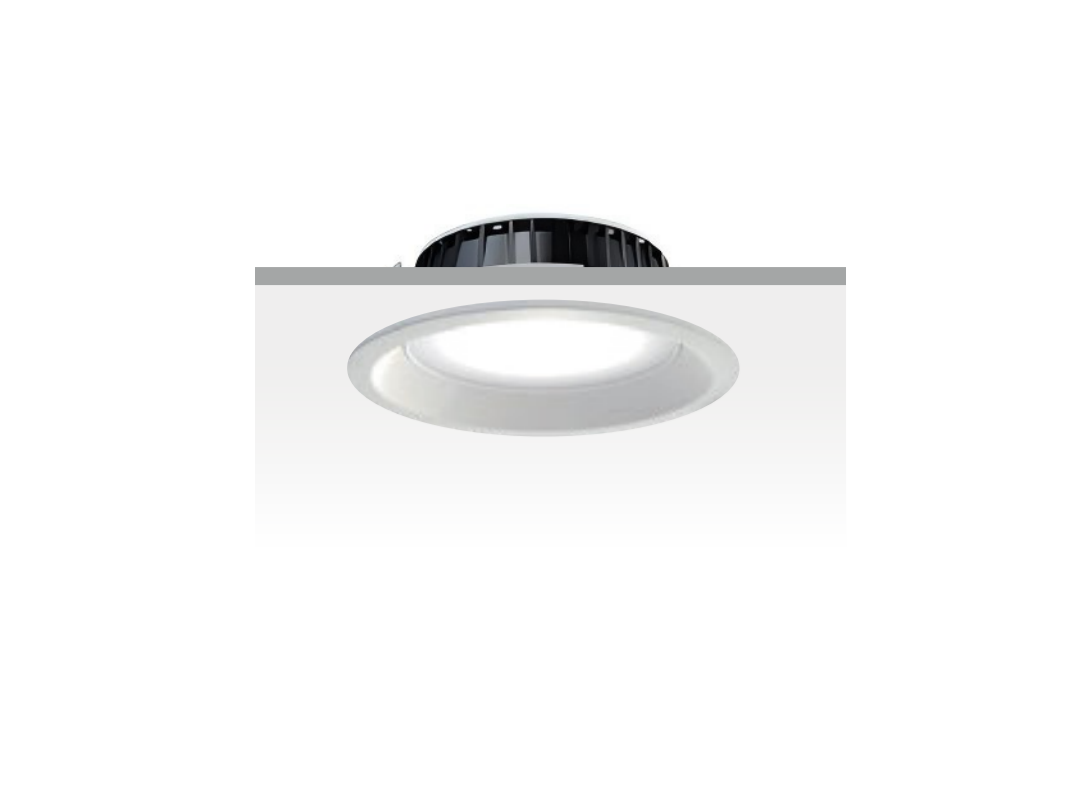

AQUA200S 15W/20W/30W
Product ID: ED2011/ED2012/ED2013/ED2014
Product description

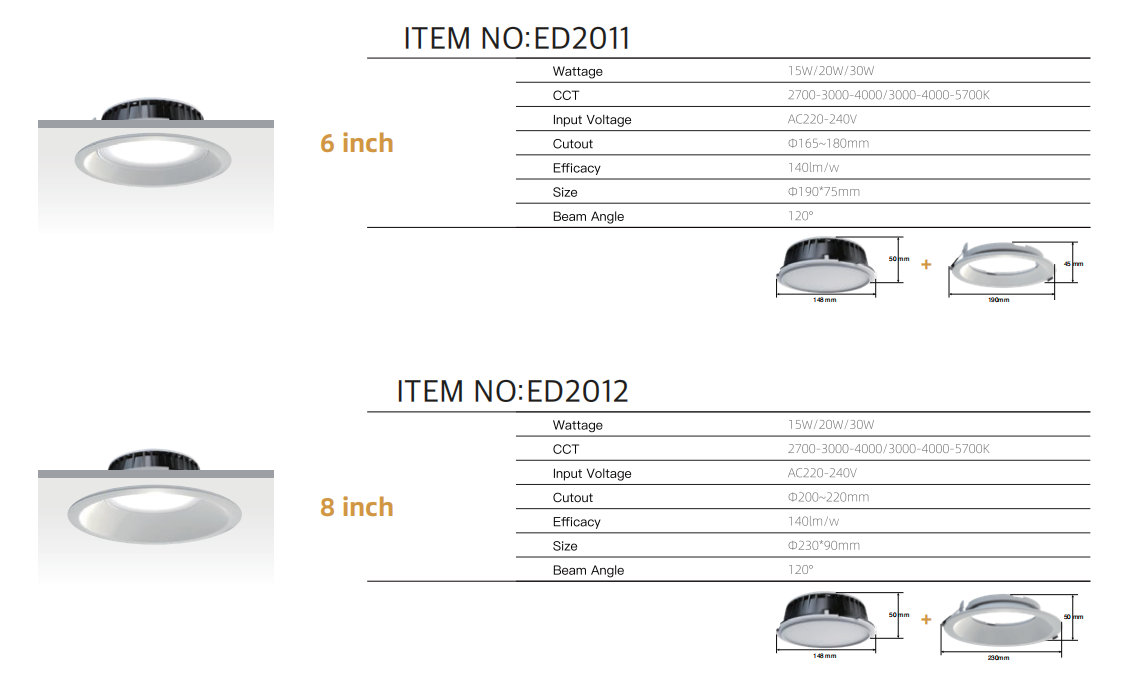

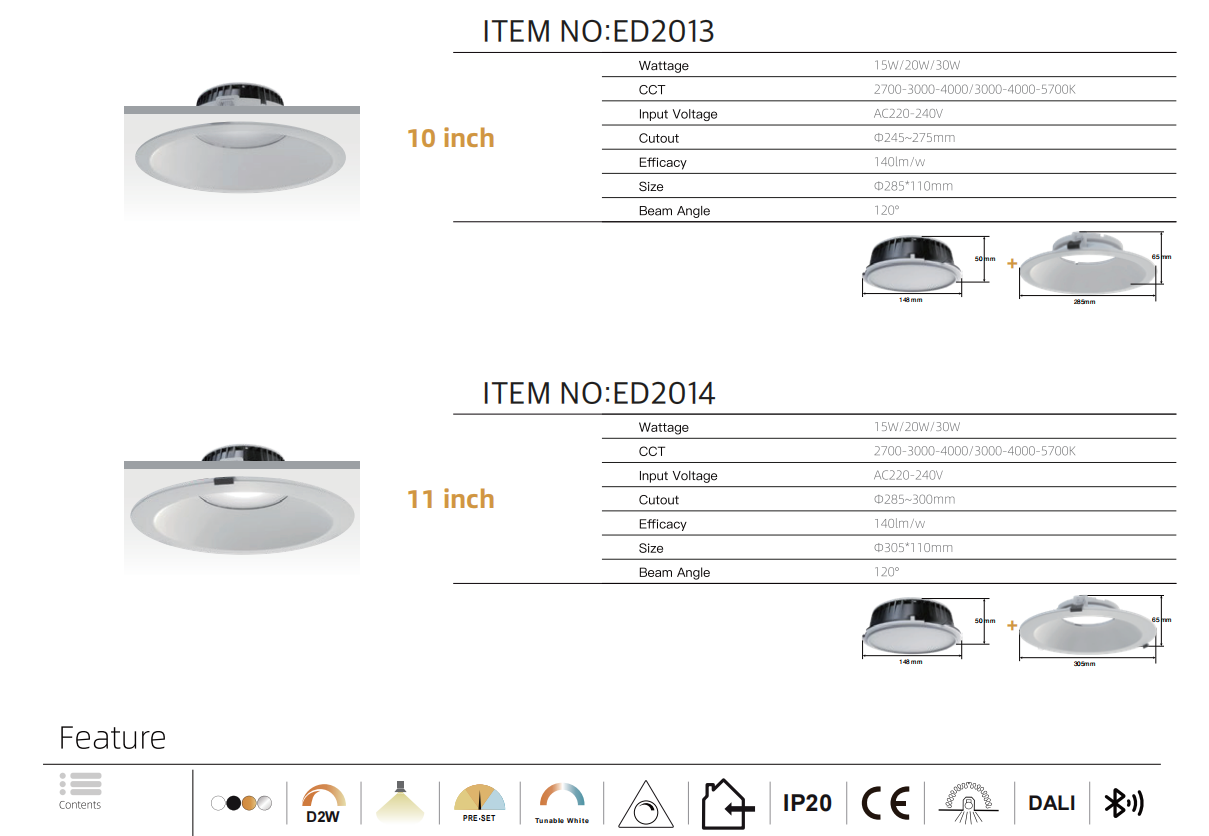

- This series includes large-caliber anti-glare recessed downlights in four sizes: ED2011 (6 inch), ED2012 (8 inch), ED2013 (10 inch), ED2014 (11 inch), with three optional power levels 15W/20W/30W for all models, compatible with universal AC220-240V mains supply. Multiple cutout sizes suit large-area basic lighting for residential wide ceilings, shopping malls, office lobbies, hotel public zones and large commercial spaces. Identical power with variable diameters fits various pre-cut ceiling holes for flexible engineering selection. The modular split design separates driver and trim ring for split stock management and convenient after-sales maintenance.
- Multi-CCT switching is available, with optional 2700K warm tone, 3000K warm white, 4000K neutral light and 5700K cool white. One fixture covers lighting demands for bedroom ambiance, living room main illumination, retail display and office corridor lighting. The luminous efficacy reaches 140lm/W for high brightness and low power consumption, with minimal lumen depreciation over long operation, excellent energy efficiency and extended service lifespan.
- A standard ultra-wide 120° flood beam angle delivers extremely large coverage with soft, even light distribution without harsh edge shadows or obvious hotspots. It is ideal for uniform base ceiling lighting in large spaces, reducing required fixture quantity and cutting overall project expense. The deeply recessed anti-glare optical structure hides the light source inside the reflector cup to eliminate direct glare and enhance visual comfort during prolonged exposure.
- The detachable split structure allows separate installation of driver unit and decorative trim ring, enabling pre-installation of the driver before clipping on the bezel for higher construction tolerance. Damaged components can be replaced individually instead of changing the whole lamp. The integrated aluminum heat sink dissipates heat efficiently across 15~30W power range to prevent LED degradation caused by trapped heat inside enclosed ceilings. With IP20 indoor protection, screw-free spring clip mounting ensures stable retention and flush ceiling finishing.
- It natively supports full intelligent control protocols including DALI bus dimming, Bluetooth group control, D2W dimming, scene preset and Tunable White stepless color tuning. It can be integrated into building management systems and smart home ecosystems for zoned dimming, scheduled switching and one-touch scene activation. Certified with CE in compliance with global indoor lighting regulations, it is widely deployed in bulk lighting projects for large shopping complexes, star hotels, office towers and whole-house no-main-light luxury residences.
Technical information
