AQUA100S 24W/36W
Product ID: ED2009/ED2010
Product description

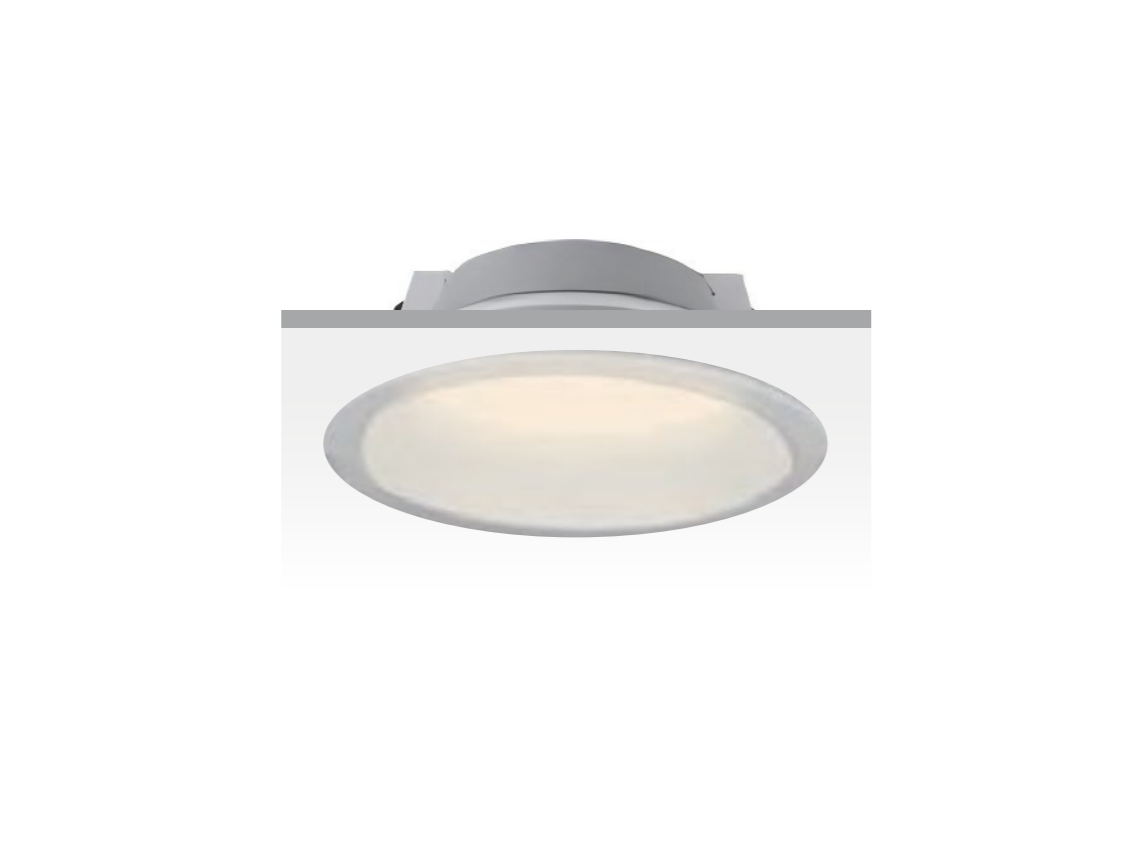

- This series consists of two high-power ultra-slim recessed anti-glare soft panel downlights: ED2009 (24W) and ED2010 (36W). Both adopt original Bridgelux LED chips and external drivers from well-known brands Lifud & Eaglerise, compatible with universal AC220-240V mains supply. They share the same standard cutout Φ200mm with an ultra-thin body depth of only 58mm. The slim structure fits renovation projects with limited ceiling depth, large public space lighting for corridors, lobbies and wide-open commercial areas. The same cutout with two power options brings excellent versatility for project stocking and construction.
- The glare index is strictly controlled at UGR＜10, reaching top-level soft anti-glare standard. Equipped with a high-transmittance soft diffuser cover, the light is evenly diffused without hard spots or harsh direct rays, eliminating glaring light during direct viewing and greatly improving visual comfort during long-hour working, passing and residential lighting. CRI≥90 delivers natural and delicate color rendering for indoor objects. Luminous efficacy ranges from 110 to 140lm/W with high lumen output and optimized power consumption. It features mild light decay during long-term operation, maintaining energy efficiency and durability even under high-power operation with long stable service life.

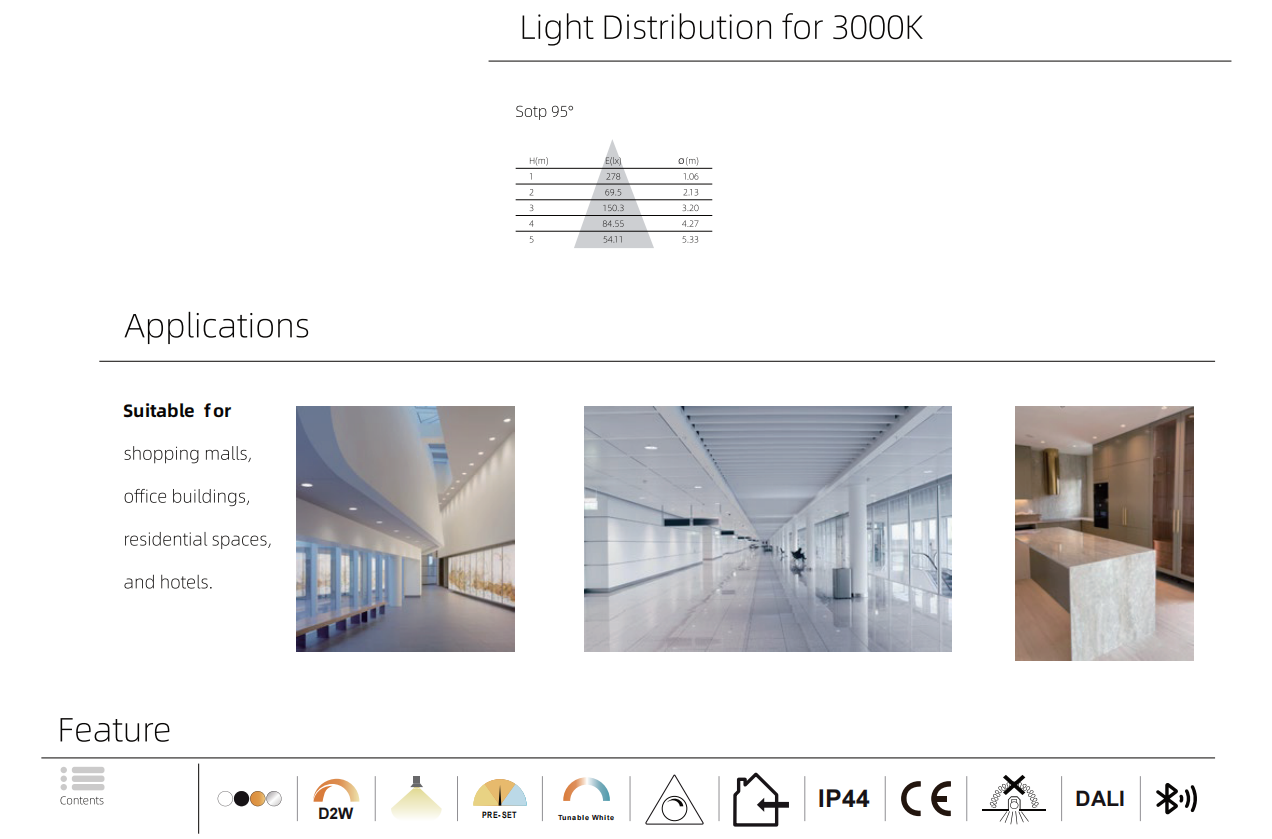

- Three CCT options (3000K/4000K/5700K) support wiring-free on-site switching to toggle warm ambient light, neutral office natural light and high-bright cool white light, applicable to hotel public areas, shopping mall walkways, office lobbies, living rooms and kitchens & bathrooms. The fixed ultra-wide 95° flood beam angle offers extremely broad coverage with soft light transition and no obvious edge demarcation, ideal for large-area even base ceiling lighting to quickly enhance overall space brightness and permeability.
- The integrated ultra-thin aluminum heat base on the rear ensures sufficient heat dissipation area and air convection within the slim body, preventing LED light source aging and flicker failure caused by heat accumulation inside enclosed ceilings. The whole lamp achieves IP44 protection grade with splash-proof and dust-proof performance, suitable for entryways, balconies, dry kitchen & bathroom zones and damp corridors with slight moisture and dust. Screw-free recessed installation with anti-fatigue spring clips prevents loosening and falling. The ultra-thin lamp sits flush with the ceiling for a minimalist invisible appearance, enabling easy disassembly and maintenance.
- It natively supports a full set of intelligent control protocols including DALI bus dimming, Bluetooth group linkage control, D2W dimming, scene preset and tunable white, which can be connected to building central control and whole-house smart home systems to realize zoned dimming, timed power on/off and one-click scene switching. With CE electrical safety certification complying with domestic and international standards for commercial & residential lighting, it is widely adopted in integrated lighting projects for shopping mall public areas, office building corridors, star hotel lobbies and guest rooms, furnished apartments and large open loft no-main-light design.

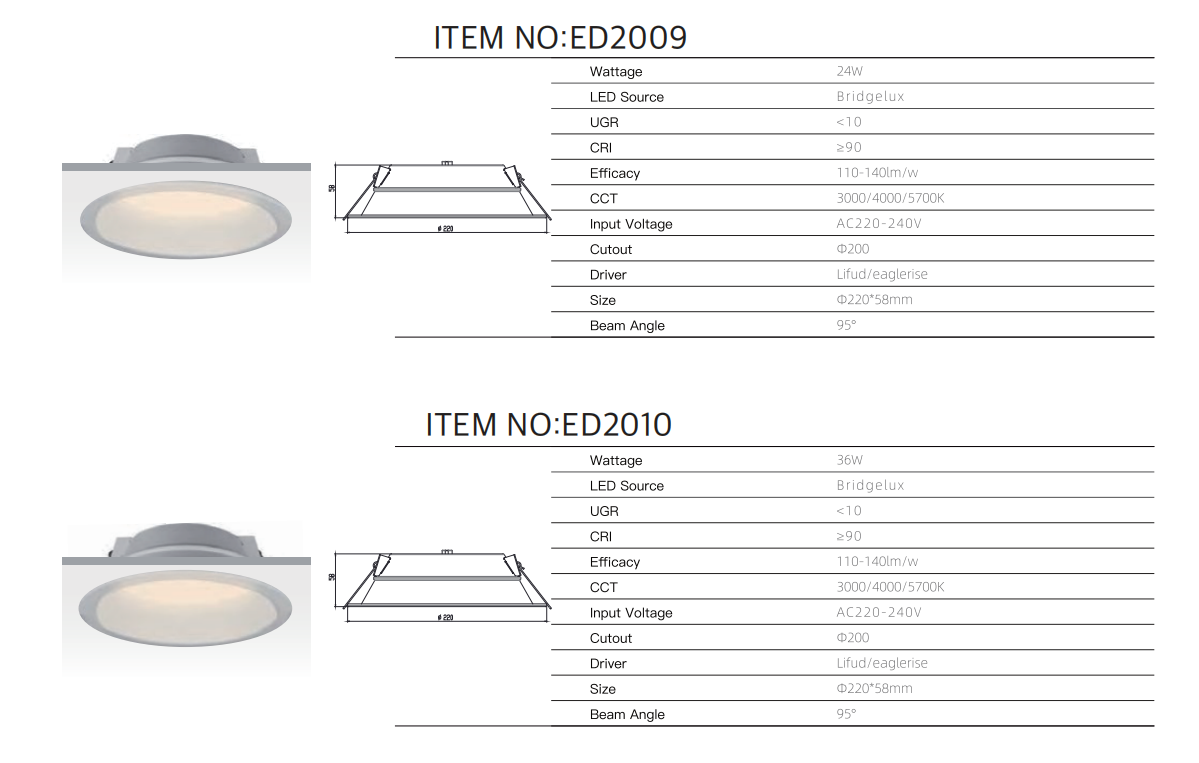

Technical information
