SHADOW 15W/25W/35W
Product ID: ED1006/ED1007/ED1008
Product description
- This series has three recessed anti-glare COB downlights with graded power: ED1006 (15W), ED1007 (25W), ED1008 (35W), all compatible with AC220-240V mains supply with stable 960mA constant driving current. Cutout sizes are Φ105/125/145mm respectively, covering ceiling construction standards for residential decoration, chain stores, office buildings and exhibition halls. The complete power gradient enables precise selection according to ceiling height and brightness demands, with excellent compatibility for bulk engineering procurement.
- Three fixed CCT options (3000K/4000K/5000K) allow switching among warm tone, neutral light and cool white light to fit residential atmosphere, office lighting and commercial display without extra wiring modification. CRI≥90 delivers vivid and authentic color rendering for fabrics, artworks and displayed goods. Luminous efficacy hits 110~140lm/W with high brightness and well-controlled power consumption, mild light decay during long-hour continuous operation, outstanding energy efficiency and long stable service life.
- Four standard beam angles (15°/20°/36°/60°) are provided: narrow angles 15° & 20° are for pinpoint highlighting and wall washing on exhibits and paintings; the classic 36° angle creates ambient atmosphere; the wide 60° angle offers large-area flood lighting for ceiling and wall base illumination. One single product line achieves both spotlight accent effect and downlight ambient lighting, supporting multiple lighting design schemes with unified stock items.
- The integrated radial multi-fin aluminum heat sink on the rear expands convection area greatly, dissipating LED heat rapidly across the full 15~35W power range and preventing premature light source aging and flicker failure caused by heat accumulation. The lamp reaches IP65 dustproof and waterproof rating, applicable to humid and dusty areas such as kitchens, bathrooms, damp corridors and semi-outdoor walkways. Bezel can be customized in black and white. Screw-free recessed installation with anti-fatigue spring clips prevents loosening and falling, enabling easy disassembly and maintenance.
- It natively supports full intelligent control protocols including DALI bus dimming, Bluetooth group control, D2W dimming, scene preset and Tunable White stepless color adjustment, which can be connected to smart home and building central control systems for zoned dimming, timing switch and one-click scene linkage. With CE certification complying with global indoor lighting electrical standards, it is widely applied in lighting projects such as villa no-main-light design, chain brand stores, exhibition halls, office public areas and hotel guest room point lighting.

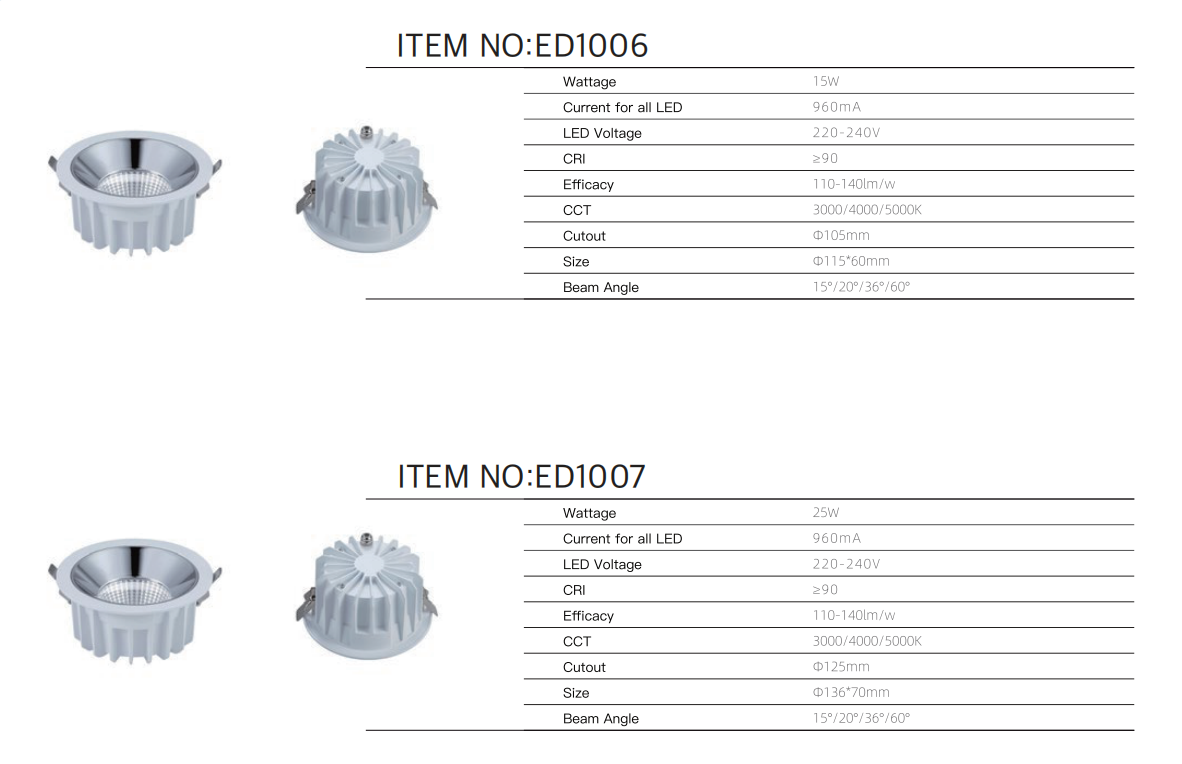

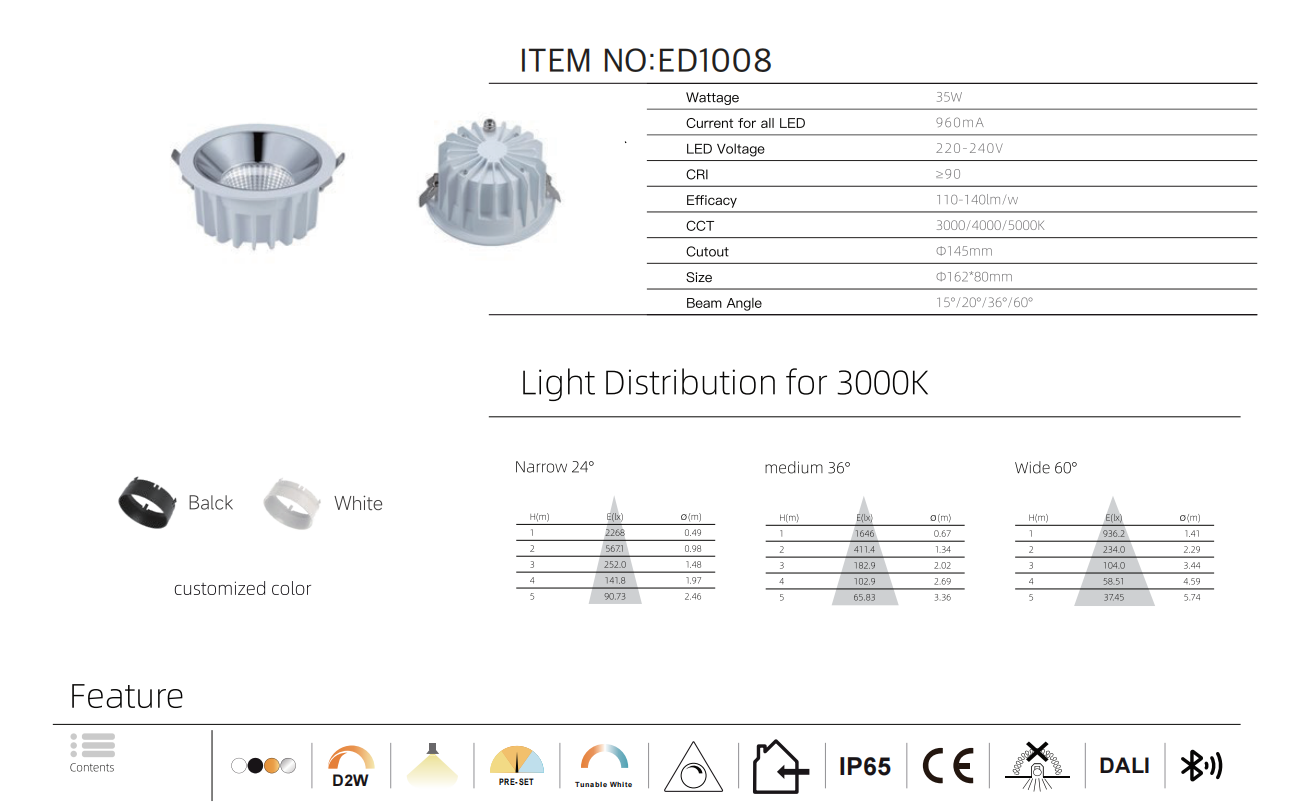

Technical information
