PREMIUM 9W/15W/20W
Product ID: ED1001/ED1002/ED1003
Product description
- This series includes three professional anti-glare recessed spotlights with graded power: ED1001 (9W), ED1002 (15W) and ED1003 (20W), all equipped with original Bridgelux LED chips and compatible with standard AC220-240V mains supply. Cutout sizes Φ70/100/140mm cover construction opening requirements for residential decoration, retail stores and exhibition halls. External drivers from top brands Lifud and Eaglerise are standard, delivering stable constant current & voltage output to avoid flicker under voltage fluctuation and greatly reduce after-sales failure rate.
- The glare index is strictly controlled at UGR＜10, reaching top-level deep anti-glare grade. The deep reflective cup blocks stray light in multiple layers to eliminate harsh glare during direct viewing, bringing excellent eye protection for long-time working, exhibition visiting and daily use. CRI≥90 achieves highly authentic color rendering for fabrics, artworks and merchandise displays. Luminous efficacy ranges 110~140lm/W with high brightness and low power consumption, stable light decay performance during long-term operation for energy efficiency and long service life.
- Four fixed CCT options (2700K/3000K/4000K/5000K) support on-site switching without extra wiring to shift between warm ambient light, neutral residential light and cool white commercial light. Four beam angles (15°/24°/36°/55°) are optional: the ultra-narrow 15° beam fits long-distance pinpoint highlighting for luxury goods and museum relics, while wide angles are used for large-area wall washing and basic ambient lighting. One single product line covers both directional accent lighting and general area illumination.
- Integrated multi-fin aluminum heat sink with large heat dissipation cavity rapidly exhausts heat generated by LED chips and prevents premature light source damage caused by heat accumulation during prolonged high-power operation. ED1003 is upgraded to IP66 high protection grade with dustproof and waterproof performance, applicable to semi-outdoor spaces, damp corridors, kitchens and bathrooms. The whole series adopts screw-free recessed installation with anti-fatigue spring clips to prevent loosening and falling, enabling easy disassembly and maintenance.
- The trim bezel can be customized in matte black, matte white, brushed metal and other finishes. The minimalist narrow bezel design matches high-end decoration styles including minimalist villas, light luxury clubs and brand exhibition halls. It natively supports full intelligent protocols including DALI bus dimming, Bluetooth group control, D2W dimming, scene preset and tunable white. With CE certification complying with global lighting electrical standards, it is widely used in bulk lighting projects such as villa no-main-light design, chain businesses, cultural museums and hotel public areas.

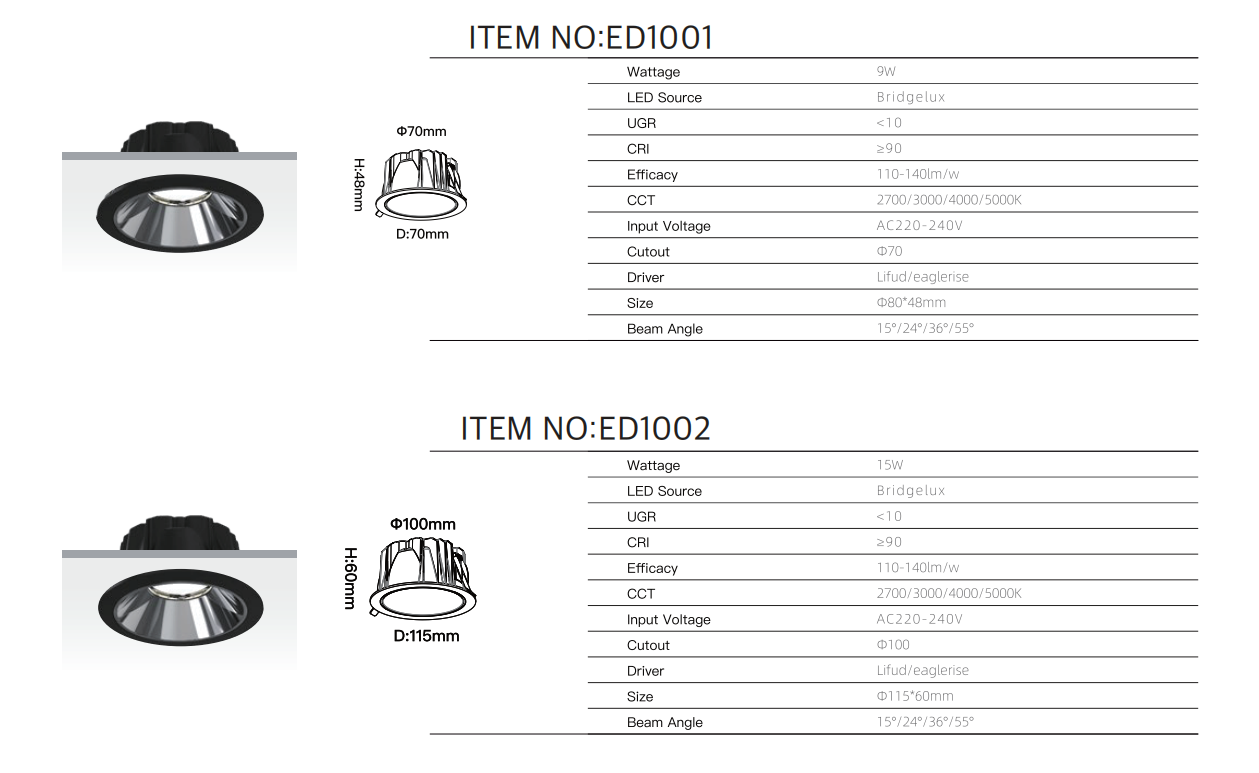

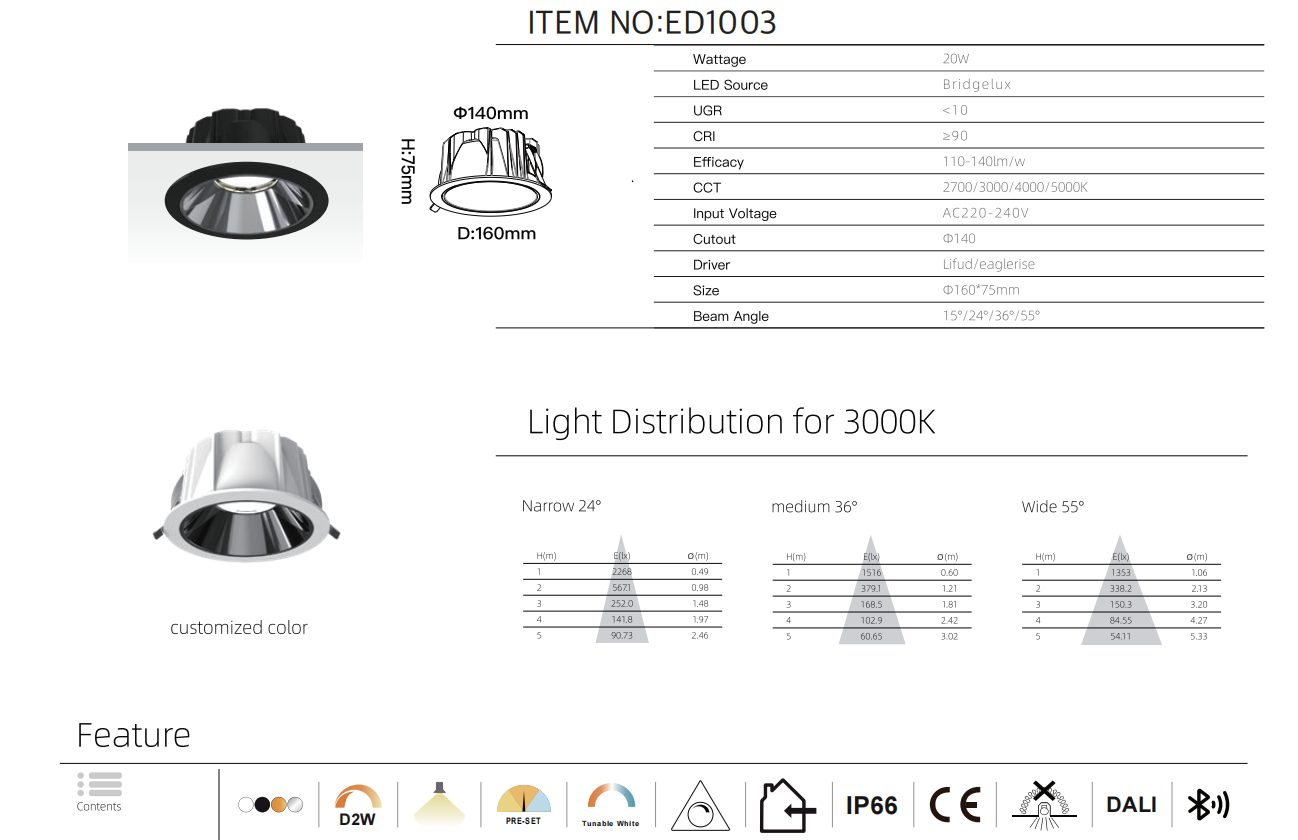

Technical information
