HIGH PERFORMANCE 10W/12W/15W/20W
Product ID: ES9004 ES9005 ES9006 ES9007
Product description
- This series includes four recessed anti-glare spotlights with graded power: ES9004 (10W), ES9005 (12W), ES9006 (15W), ES9007 (20W), all directly powered by AC220-240V mains supply. Cutout sizes range from Φ65/70/75 to 90mm, covering ceiling opening standards for residential decoration, retail stores and exhibition halls. The complete power gradient allows flexible selection according to space brightness demands with excellent compatibility for bulk engineering procurement.
- Four fixed CCT levels (2700K/3000K/4000K/5000K) support on-site one-click switching among warm ambient light, neutral residential light and cool white commercial light without extra driver wiring. The whole line achieves luminous efficacy ≥120lm/W with high brightness and low power consumption for remarkable energy saving, minimal light decay during long-term operation and long service life. Four universal beam angles (15°/24°/38°/60°) are available: narrow angles for precise wall washing and accent lighting, wide angle for even basic ambient illumination.
- The integrated vertical multi-fin aluminum heat sink on the back expands heat contact area and boosts air convection efficiency. It rapidly dissipates chip heat for the full 10~20W power range, preventing light source aging and flicker failure caused by heat accumulation during prolonged high-power operation. The deep recessed optical cup blocks stray light in multiple layers to reduce glare index and avoid eye strain from direct viewing.
- Screw-free recessed installation with durable anti-fatigue spring clips delivers stable clamping force to prevent slipping and falling after ceiling mounting. IP20 indoor protection is standard, and the product holds CE certification complying with domestic and international electrical lighting standards. The trim bezel can be customized in matte white, matte black, brushed metal and other finishes. The minimalist thin-edged round outline matches interior styles including minimalism, light luxury and commercial engineering decoration.
- It natively supports comprehensive intelligent control protocols including DALI bus dimming, Bluetooth group control, D2W dimming, scene preset and Tunable White stepless color adjustment, which can be integrated into whole-house smart home systems for remote control and scene linkage. Modular standardized design reduces SKU quantity and inventory pressure. It is widely adopted in bulk lighting projects such as villa no-main-light design, chain brand retail stores, museum exhibition lighting, office building corridors and hotel guest room point lighting.

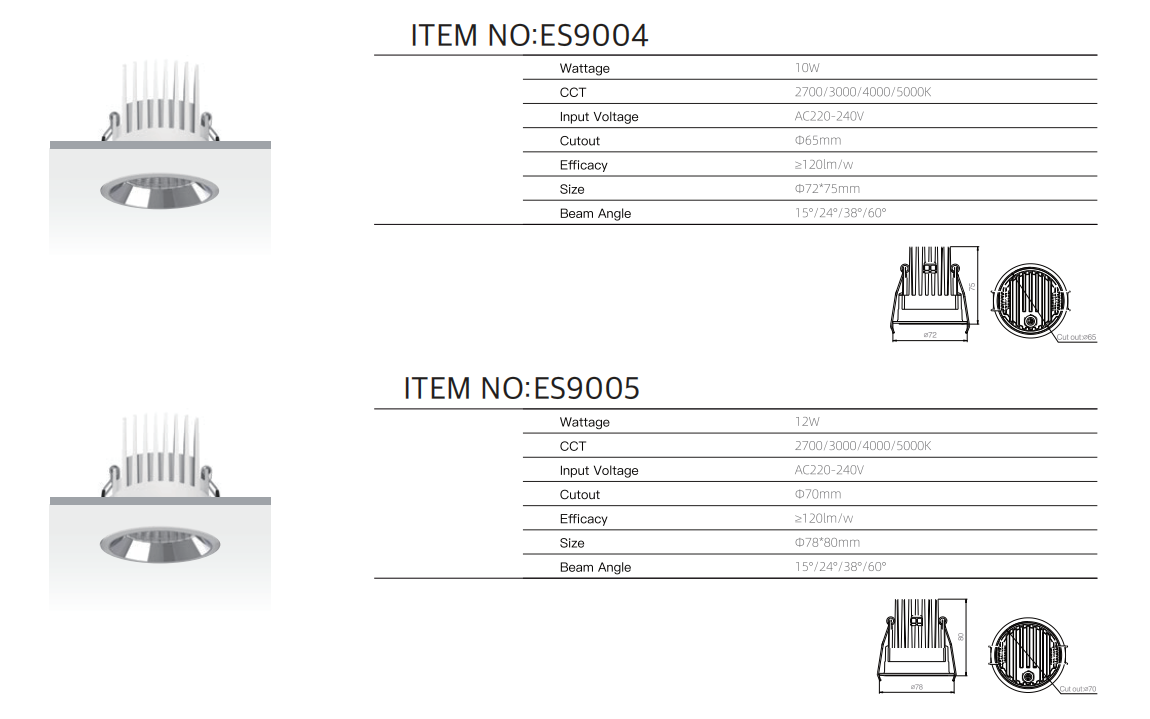

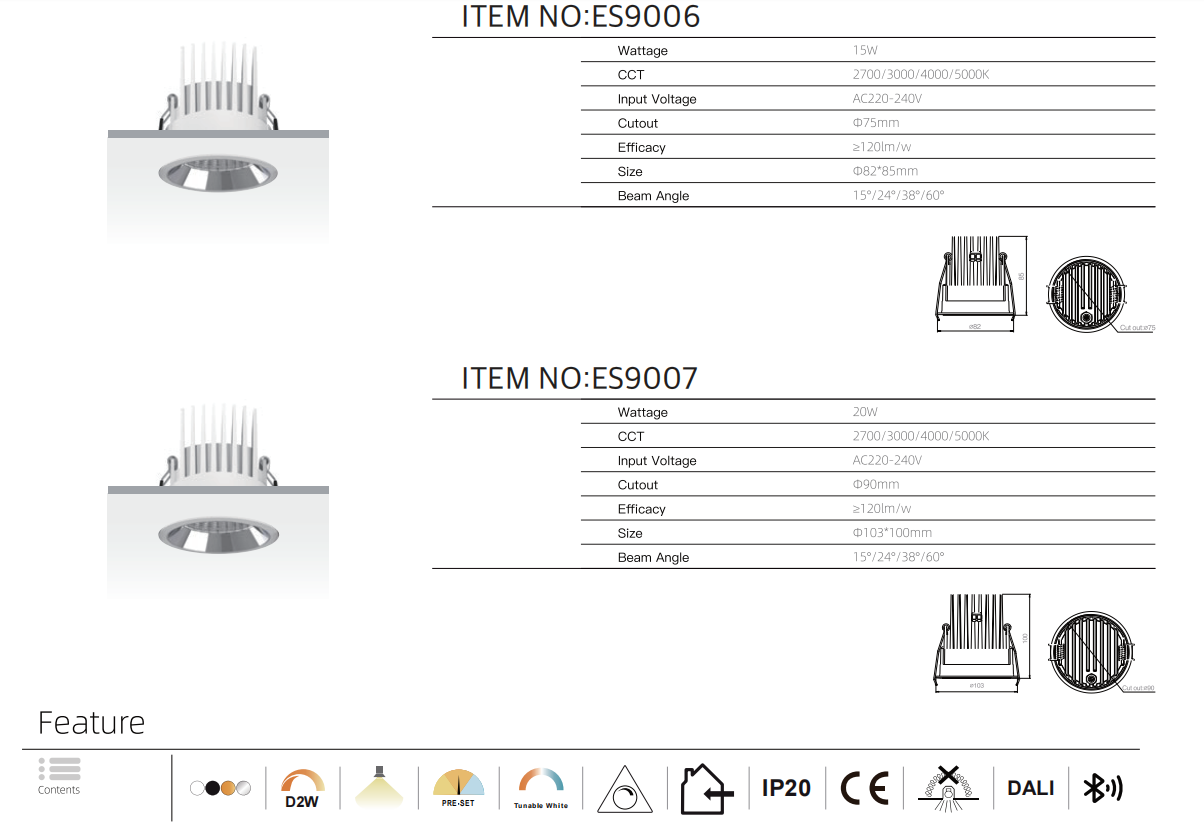

Technical information
