STARDIAN 15W～18W
Product ID: ES9003 ES9003-1
Product description
- This series has two high-power recessed spotlights: standard bezel type ES9003 and pre-embedded trimless type ES9003-1, with power range 15W~18W and direct AC220-240V mains input. Both adopt unified standard cutout Φ75mm, delivering high-brightness output within regular opening size, ideal for accent lighting in exhibition halls, shop windows and large-space villas. They only differ in bezel structure and outer dimension while sharing identical core light source parameters, which enables shared material stocking and flexible project selection.
- Five fixed CCT levels (2700K/3000K/3500K/4000K/5000K) are available, covering warm ambient light, soft neutral light and high-lumen pure white light. CRI≥90 presents delicate and authentic color rendering for artworks, clothing displays and home decorations. Luminous efficacy hits 80lm/W with well-matched power consumption under high-power operation. It features mild light decay during long continuous working hours and long service life supported by optimized heat dissipation design.
- Five optional beam angles: 10°/15°/24°/36°/50°. The ultra-narrow 10° beam is designed for extreme focused highlighting on luxury goods and museum cultural relics; 15° and 24° are perfect for artwork and display wall washing; 36° creates ambient atmosphere; the wide 50° angle provides large-area basic flood fill light. This single product line fulfills full-scene lighting demands from pinpoint focusing to area ambient illumination.
- The lamp body is an integrated vertical multi-fin hollow aluminum heat sink. The hollow convection structure greatly improves heat dissipation efficiency to rapidly exhaust heat from high-power LED chips, preventing accelerated light decay and flicker failure caused by heat accumulation. ES9003 uses clip-on bezel for conventional recessed installation for easy maintenance and disassembly. ES9003-1 is equipped with pre-embedded flange wings to be plastered flush into ceiling, leaving no exposed rim after construction to achieve minimalist invisible trimless lighting effect.
- It adopts screw-free recessed mounting with durable anti-fatigue high-elastic spring clips to ensure tight fixation and anti-drop performance after ceiling installation. The bezel can be customized in matte black, champagne gold, silver grey, gunmetal and other finishes. It carries IP20 indoor protection and CE certification complying with global lighting electrical standards. Natively compatible with smart protocols including DALI dimming, Bluetooth linkage, D2W dimming, scene preset and tunable white, it is widely used in bulk lighting projects for exhibition halls, chain stores, villa no-main-light design and hotel public areas.

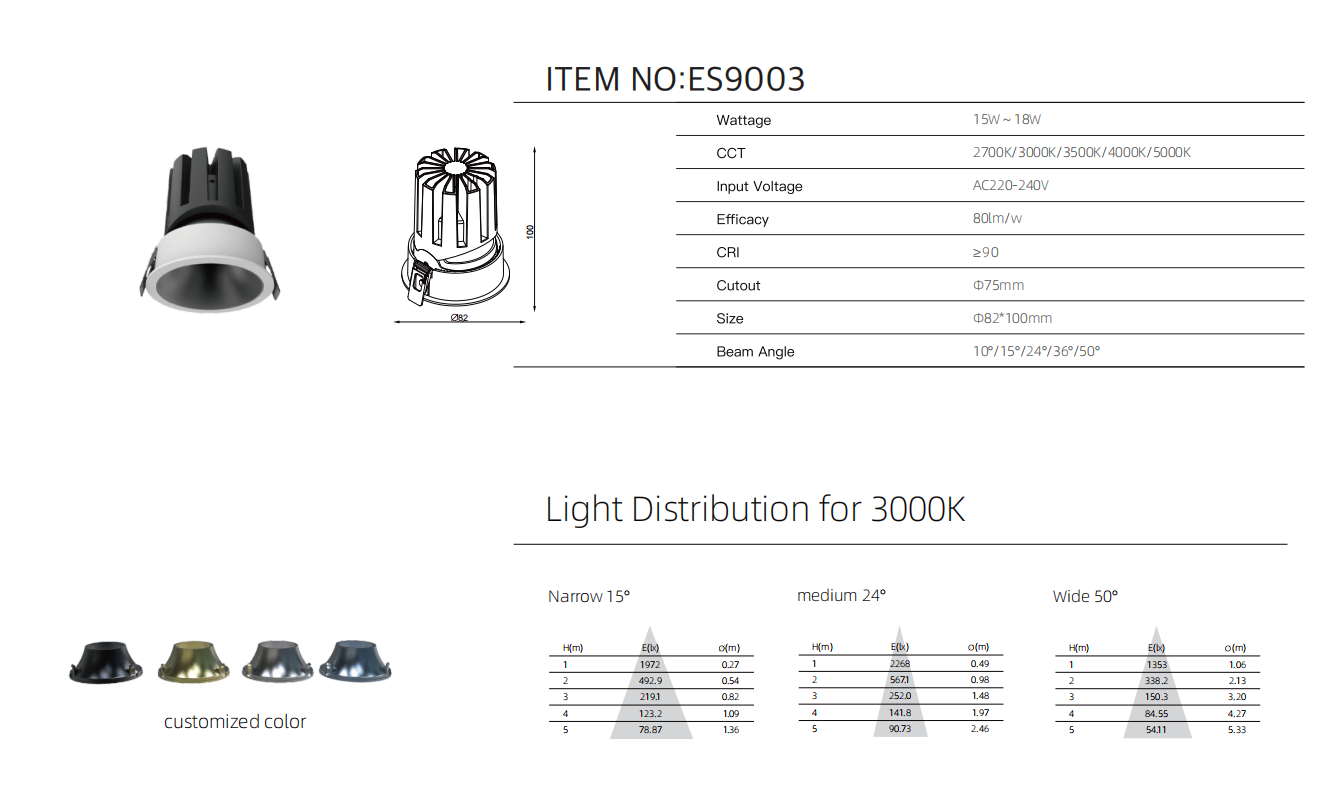

Technical information
