STARDIAN 10W～12W
Product ID: ES9002 ES9002-1
Product description

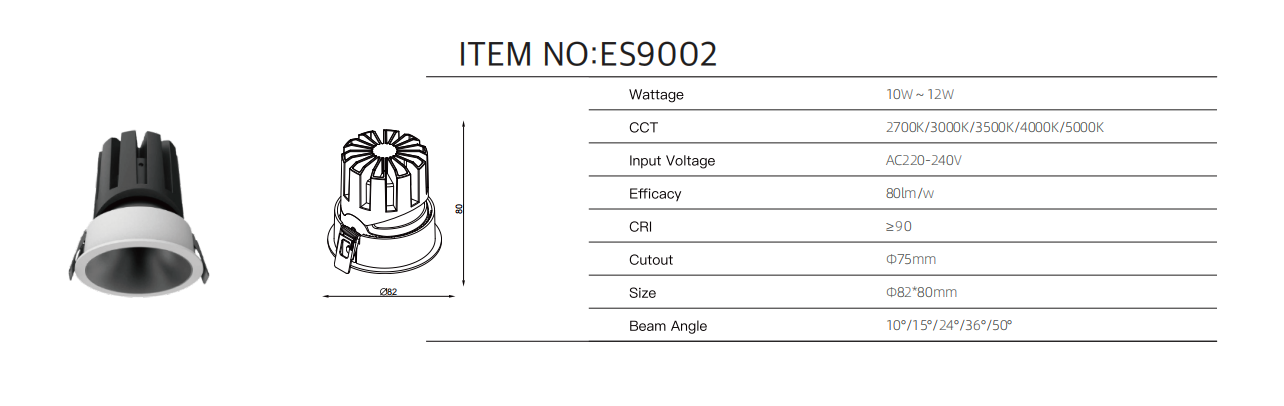

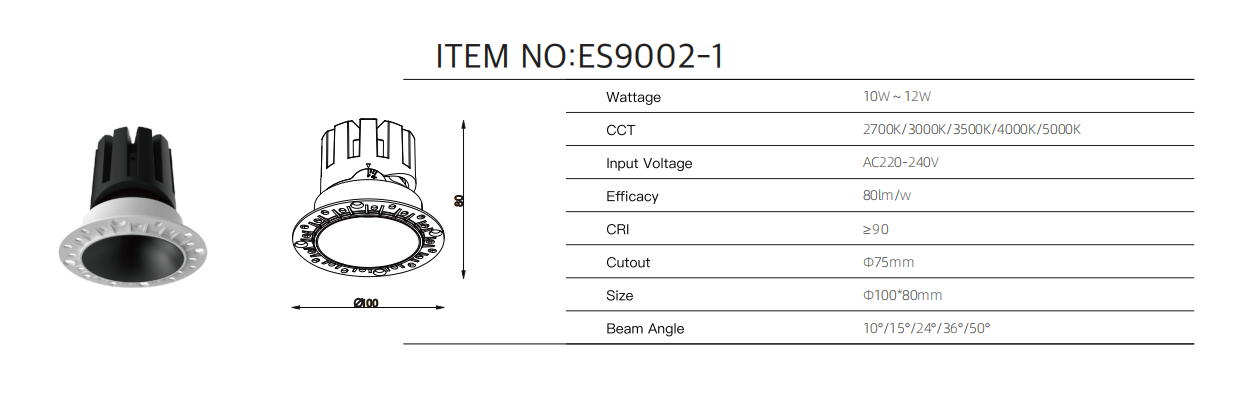

- This series consists of two embedded COB spotlights: standard bezel version ES9002 and trimless pre-embedded version ES9002-1, with high power range 10W~12W and direct AC220-240V mains input. Both adopt universal cutout Φ75mm, compatible with residential ceiling pre-embedding, old lamp hole renovation and standardized bulk engineering construction for commercial stores. They share identical core light source parameters and only differ in installation structure and outer diameter, featuring strong inventory versatility to switch two installation modes flexibly.
- Five fixed CCT options (2700K/3000K/3500K/4000K/5000K) cover lighting from warm ambient tone to high-bright pure white. CRI≥90 achieves accurate and vivid color rendering for paintings, soft furnishings and merchandise displays. Luminous efficacy reaches 80lm/W with well-controlled power consumption under high-power output, slow and stable light decay during long-term operation and long service life, balancing high brightness and energy saving.
- Five beam angle choices are available: ultra-narrow 10°, narrow 15°, wall-washing 24°, standard ambient 36° and wide flood 50°. The extreme narrow 10° beam is designed for pinpoint highlighting on museum exhibits and luxury window displays. Multiple angles satisfy diversified lighting demands including exhibit focusing, wall washing, basic space lighting and large-area fill light for both commercial and residential lighting design.
- The lamp body is equipped with integrated vertical multi-fin hollow aluminum heat sink. The hollow structure strengthens air convection to dissipate heat generated by LED chips rapidly, preventing premature light source aging and flicker failure caused by heat accumulation. ES9002 adopts clip-on bezel for regular recessed installation with easy disassembly and maintenance; ES9002-1 comes with pre-embedded flange tabs to be fixed inside plaster ceiling, leaving no exposed rim after construction to realize minimalist invisible no-main-light effect.
- Screw-free recessed installation with high-elastic anti-fatigue spring clips ensures firm fixation and anti-falling performance after ceiling mounting. It supports IP20 indoor protection grade and holds CE certification in line with domestic and international electrical lighting standards. It is compatible with intelligent control protocols including DALI bus dimming, Bluetooth linkage, scene preset and tunable white. Widely applied in bulk lighting projects such as villa whole-house no-main-light design, chain brand stores, exhibition halls and hotel public areas.
Technical information
