STARDIAN 5W～9W
Product ID: ES9001 ES9001-1
Product description
- This series has two recessed spotlights with tiny cutout: standard version ES9001 and trimless pre-embedded version ES9001-1. Power ranges from 5W to 9W and it works directly with AC220-240V mains voltage. Both share the same cutout size Φ55mm, a mini small opening specification ideal for ceilings with limited reserved holes, minimalist trimless decoration and renovation of old tiny lamp positions. They only differ in bezel structure and outer diameter while sharing identical core light source parameters for high inventory reusability.
- Five fixed CCT options (2700K/3000K/3500K/4000K/5000K) cover warm ambient light, soft neutral light and pure cool white for diversified scenarios. CRI≥90 delivers highly realistic color rendering for fabrics, paintings and display exhibits. With luminous efficacy of 80lm/W, it outputs high brightness at moderate power, featuring stable light decay performance during long continuous operation for energy efficiency and long service life.
- Four optional beam angles: 15°/24°/36°/50°. The ultra-narrow 15° beam is perfect for highlighting museum exhibits and single window displays; 24° suits artwork wall washing; 36° is classic for residential ambient lighting; the wide 50° angle provides local basic flood fill light. One single product line satisfies both accent highlighting and ambient area lighting demands.
- The lamp body adopts integrated multi-fin aluminum heat sink with vertical slotted hollow design to expand heat dissipation area and air convection efficiency, rapidly dissipating heat from LED chips and preventing accelerated light decay and breakdown caused by heat accumulation. ES9001 applies regular recessed installation with clip-on bezel; ES9001-1 comes with pre-embedded flange wings to be plastered directly into ceiling, leaving no exposed rim after finishing to achieve pure minimalist trimless invisible lighting.
- Standard screw-free quick recessed mounting with durable anti-fatigue spring clips prevents loosening and falling after ceiling installation. It carries IP20 indoor protection and CE safety certification complying with global indoor lighting electrical standards. Extended smart functions including DALI dimming, Bluetooth linkage, scene preset and tunable white are available. It is widely applied in villa no-main-light design, clothing store window display, museum exhibition lighting, corridor entrance lighting and point light projects for fine-decorated apartments.

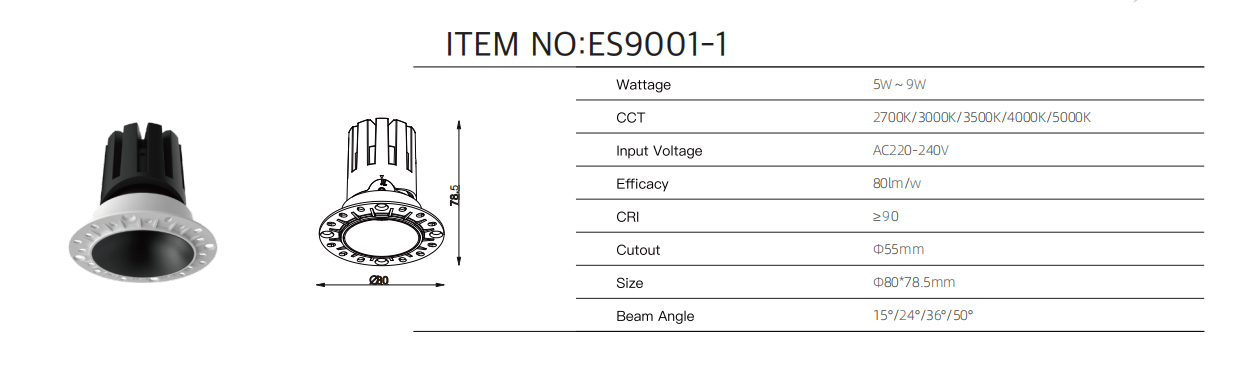

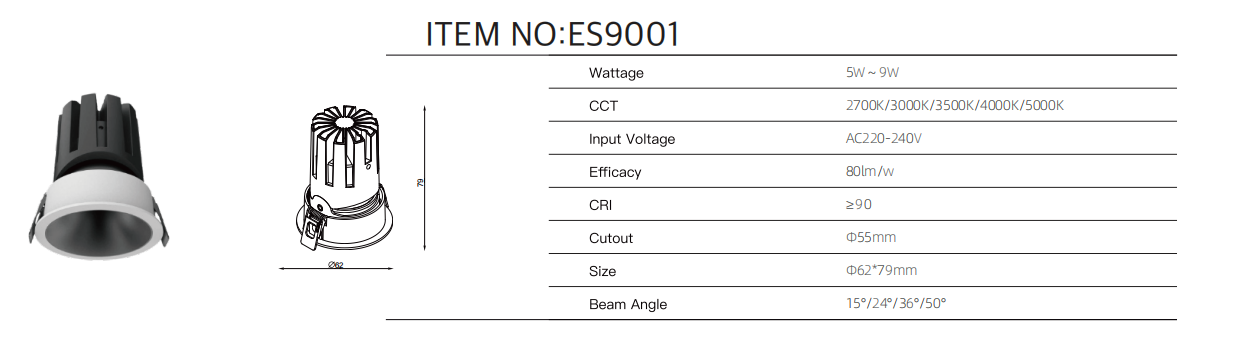

Technical information
