MAGSENSE 6W
Product ID: ES8003
Product description
- Model ES8003 is a 6W recessed downlight with built-in PIR human motion sensor. It works with AC220-240V mains power and reaches luminous efficacy up to 100lm/W for outstanding energy saving. It fits cutout size from Φ68 to 75mm, with outer diameter Φ85 and ultra-slim depth of only 44mm, compatible with most ceiling reserved holes for easy installation. The fixed 60° beam angle delivers even and soft light distribution, ideal for basic ambient lighting in corridors, entryways and stairwells.
- Four CCT options (2700K/3000K/4000K/5700K) are switchable via the built-in CCT toggle switch on the lamp. No extra wiring is needed for color temperature adjustment, so users can shift between warm, neutral and cool white directly on site. The bezel is customizable in multiple finishes including matte white, matte black, gunmetal and bright silver to fit various residential and commercial decoration styles.

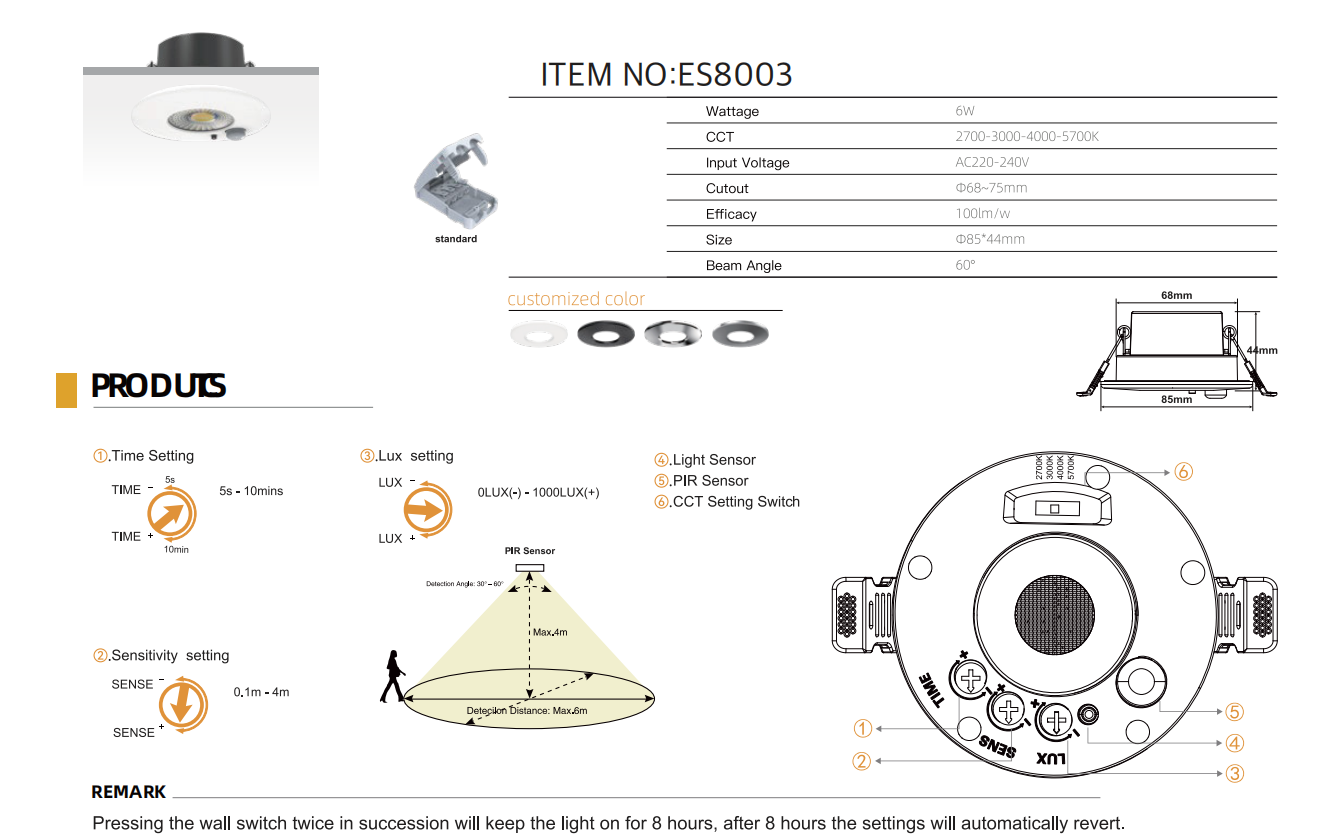

- It integrates a multi-functional adjustable PIR sensing system with four parameters tunable via onboard knobs: hold-on time from 5 seconds to 10 minutes, motion detection sensitivity with range 0.1~4m, ambient light threshold from 0 to 1000Lux. The PIR detection angle ranges 30°~60° with max detecting distance 6m. It avoids false triggering under strong daylight and only turns on automatically when human movement is detected in dim surroundings to save power intelligently.

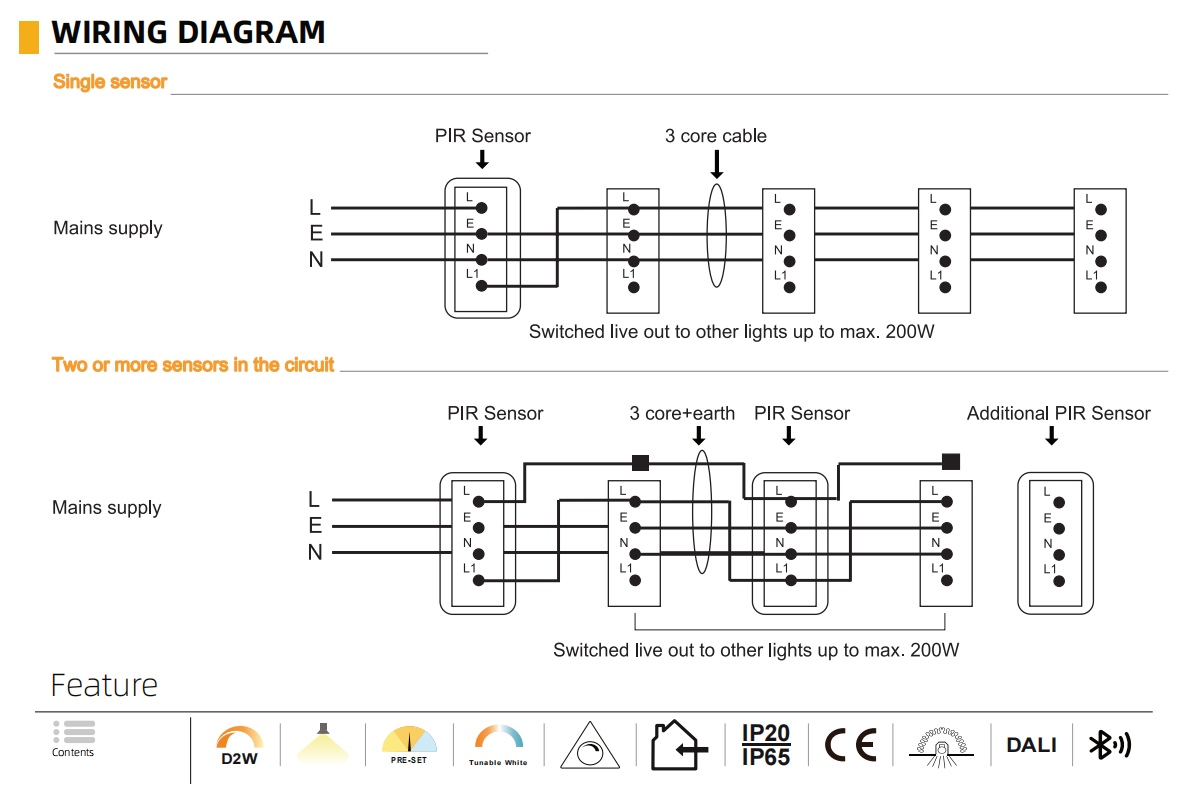

- It has a permanent-on override function: quickly toggle the wall switch twice to keep the light steadily on for 8 hours, after which it will automatically revert to sensor mode, convenient for cleaning, construction and long-period passage. Two wiring modes are available: single sensor standalone connection and multiple sensors parallel connection. The maximum total switched load is 200W, enabling one sensor to control multiple lamps for flexible engineering wiring.
- Standard spring clip recessed mounting ensures firm fixation and easy disassembly. IP20 indoor version and IP65 waterproof & moistureproof version are optional, with CE certification complied. It supports extended smart functions including DALI dimming, Bluetooth linkage, scene preset and dual tunable white. Widely applied in unattended public lighting such as hotel corridors, apartment hallways, underground parking lots and public passageways to cut manual operation and maintenance cost.
Technical information
