LED DOWNLIGHT MODULE 15W

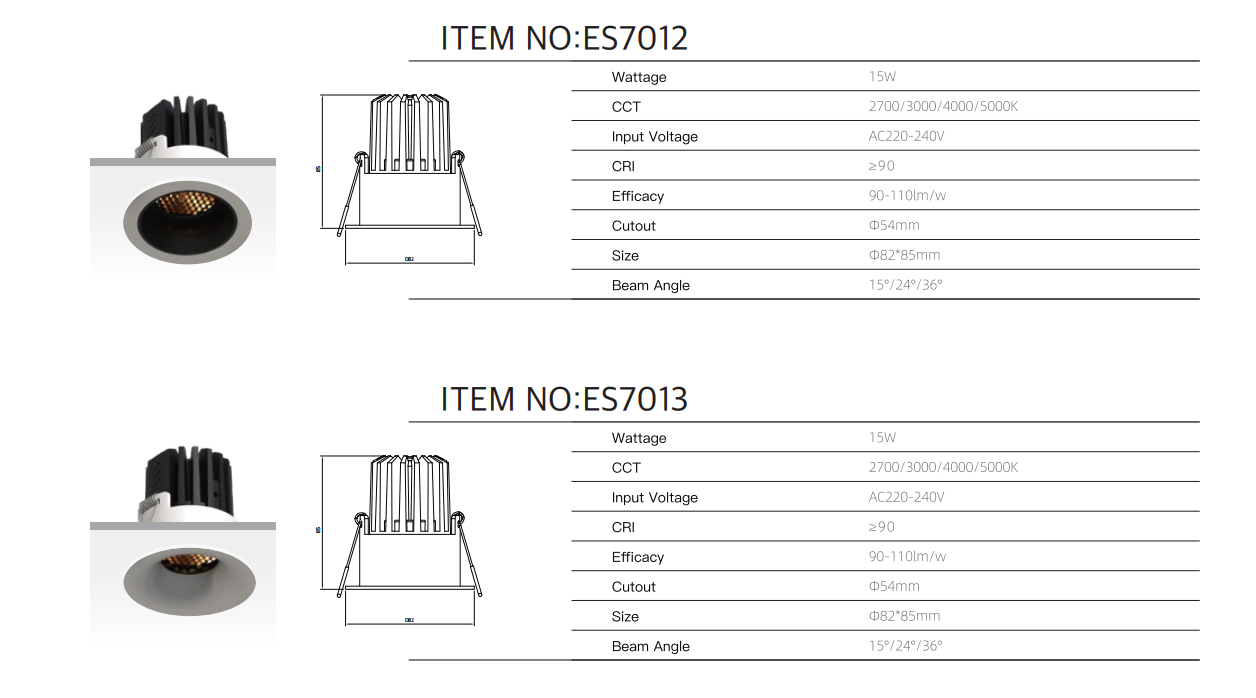

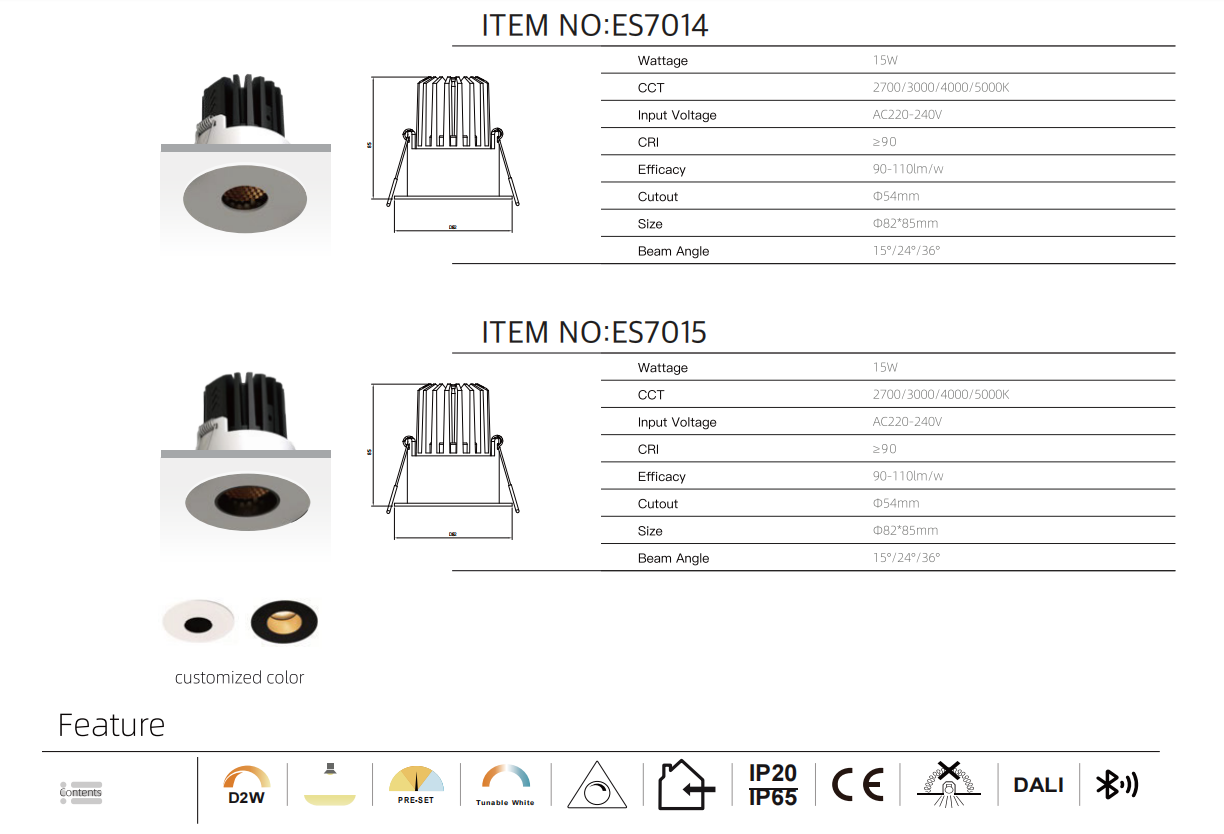

Product ID: ES7012 ES7013 ES7014 ES7015
Product description
- This series consists of four 15W small-cutout recessed COB spotlight modules: ES7012, ES7013, ES7014 and ES7015. All share a unified cutout of Φ54mm and overall dimension Φ82*85mm, delivering 15W high-power high-brightness lighting within a tiny cutout size, ideal for residential and commercial projects with limited ceiling cutout and depth but requiring accent lighting. The luminous efficacy reaches 90-110lm/w with CRI≥90 for precise and vivid color rendering. It features excellent energy efficiency, well-suppressed light decay during long-hour continuous operation and long stable service life.
- Four fixed CCT options (2700K/3000K/4000K/5000K) fully cover warm ambient light, residential neutral light and commercial cool white light. Three beam angles (15°/24°/36°) are standard equipped: narrow angles support long-distance wall washing and pinpoint spotlighting for artworks, while wide angles provide basic area ambient floodlighting. The four models adopt differentiated bezel and anti-glare optical structures, which can be freely combined with matching pre-embedded and surface-mounted trim kits from the same product line. Multiple appearance options are available to match minimalist, light luxury, commercial and other interior decoration styles.
- The top lamp body is an integrated multi-vertical-fin extruded aluminum heat sink with multiple longitudinal diversion air channels to strengthen convection heat transfer, rapidly dissipating heat from the 15W high-power LED chip and preventing overheating aging and rapid brightness loss caused by heat accumulation. Spring clip recessed mounting offers even and stable clamping force to avoid loosening and falling off after ceiling installation. The easy disassembly structure allows individual lamp removal for inspection and replacement.
- It can be directly powered by AC220-240V mains voltage without extra external driver, eliminating external driver wiring and accessory procurement to simplify on-site construction. IP20 standard indoor protection and IP65 moisture-proof & waterproof versions are optional, suitable for dry indoor areas such as living rooms, corridors and exhibition halls, as well as slightly humid spaces like bathrooms and balconies. With CE certification, it complies with domestic and international electrical standards for indoor lighting, and can be legally applied in residential decoration and bulk commercial projects.
- It is natively compatible with multiple intelligent control systems including DALI bus dimming, Bluetooth wireless smart control, dual CCT switching, scene preset dimming and tunable white, and can be integrated into whole-house smart home lighting ecosystem. The tiny cutout enables dense matrix arrangement and linear continuous layout, widely used for embedded point lighting projects in villa no-main-light design, luxury counters, cultural exhibition halls, hotel corridors and chain boutique stores. Modular stock management reduces SKU quantity for convenient and efficient project selection and bulk purchasing.
Technical information
