LED DOWNLIGHT MODULE
Product ID: 3LC00160 3LC00162 3LC00164
Product description

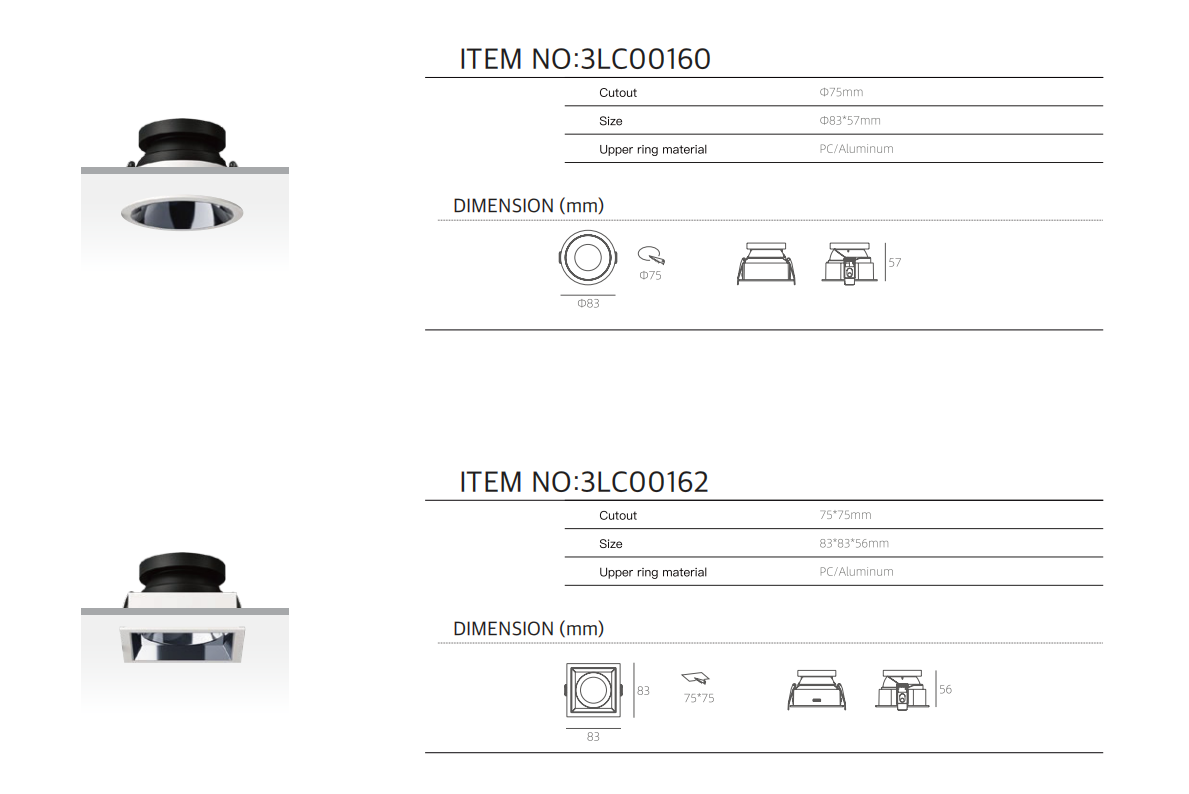

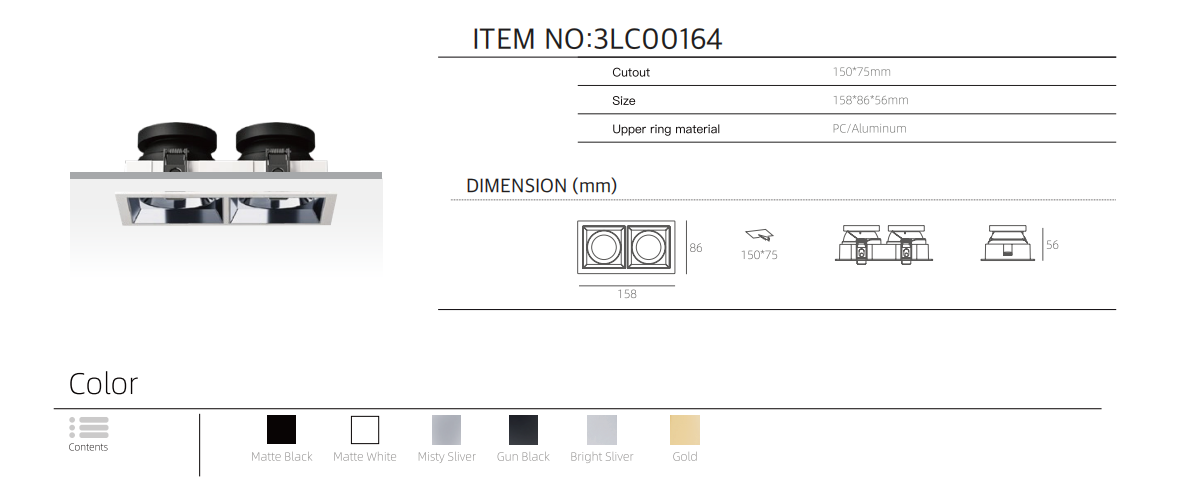

- This series consists of angle-adjustable recessed spotlight outer trim kits, including round single-head model 3LC00160, square single-head model 3LC00162 and integrated double-head model 3LC00164. The cutout for single-head versions is Φ75 / 75×75mm, while the integrated double-head cutout is 150×75mm. All models adopt slim body depth of 56~57mm to fit most ceiling installation heights. The trim is available in PC and aluminum materials for flexible selection according to project budget and durability requirements, and all are fully compatible with standard 75mm COB spotlight modules with excellent versatility.
- Built-in universal hinge structure allows multi-angle tilting and beam direction adjustment after installing the light source, adapting to directional lighting scenarios such as wall washing for paintings, side highlighting for displayed exhibits and partial ambient fill-in light. The integrated double-head frame enables two lighting positions with only one ceiling cutout, greatly reducing drilling holes and construction procedures, ideal for linear continuous lighting on corridors and TV background walls to improve construction efficiency.
- A complete rich color lineup is provided with six standard finishes: matte black, matte white, misty silver, gun black, bright silver and gold, matching residential and commercial interior styles including minimalism, light luxury, modern commercial, French and Italian design. The round version delivers soft minimalist lines, the square version features sharp neat edges, and the long double-head style presents orderly elegant layout. Mix and match of three shapes creates stronger hierarchical lighting arrangement.
- Robust construction: aluminum variant boasts high rigidity against extrusion and deformation, while PC version features good toughness and impact resistance to prevent cracking. The inner reflective surface adopts high-reflection mirror treatment for excellent beam focusing and auxiliary anti-glare effect. Equipped with high-elastic stainless steel spring clips for firm clamping against loosening and falling after ceiling mounting. Screw-free clip-on installation simplifies on-site assembly and shortens construction period for both residential and commercial projects.
- Modular split design supports separate disassembly and replacement of outer trim and light module. For style renovation or damaged part replacement, only the outer frame needs to be changed without removing the whole lamp, minimizing after-sales maintenance and renovation cost. Widely applied in whole-house no-main-light decoration, lighting upgrading for chain stores, bulk lamp retrofitting for hotel rooms and matrix spotlight projects in exhibition halls, with streamlined stock items and flexible project implementation.
Technical information
