TANCAN MODULE 15W
Product ID: ES7004 ES7005 ES7006
Product description
- This series consists of 15W high-power recessed spotlight modules with three models: ultra-thin lens type ES7004, standard lens type ES7005 and reflector anti-glare type ES7006. All adopt unified cutout Φ54mm and outer diameter Φ49.8mm, differing only in body height: 62mm, 75mm and 70mm. It delivers high-brightness accent lighting with high wattage under small cutout size and limited ceiling depth. The luminous efficacy reaches 90-110lm/w with CRI≥90 for accurate color rendering, excellent energy efficiency, well-controlled light decay during long-hour high-power operation and long stable service life.
- Four fixed CCT options (2700/3000/4000/5000K) fully cover three major lighting scenarios: warm atmosphere lighting, neutral daily lighting and cool white commercial display lighting. Three beam angles 15°/24°/36° are standard for long-distance wall washing, pinpoint exhibit spotlighting and area ambient lighting. Two optional optical structures are available: the lens version features strong beam convergence with neat light spot; the reflector model is equipped with honeycomb grille for multi-layer stray light blocking and superior anti-glare performance, ideal for shop window display, gallery artwork lighting, museum exhibits and high-end residential no-main-light projects.
- The integrated multi-fin extruded aluminum heat sink with longitudinal diversion air channels enhances convection heat transfer to rapidly dissipate heat generated by the 15W high-power chip, preventing chip overheating aging and rapid brightness depreciation caused by heat accumulation. The modular split structure allows independent disassembly and replacement of the light module without removing the whole fixture housing, simplifying after-sales repair and part replacement to cut maintenance costs greatly.
- It can be directly driven by AC220-240V mains without external driver, simplifying on-site wiring and accessory procurement. IP20 standard indoor version and IP65 moisture-proof & waterproof version are optional, suitable for dry indoor spaces such as living rooms and corridors, as well as slightly humid areas like bathrooms. With CE certification, it complies with domestic and international indoor lighting safety standards for compliant bulk application in both commercial and residential projects.
- It is natively compatible with DALI bus dimming, Bluetooth wireless smart control, dual CCT switching, scene preset dimming and tunable white, and can be connected to whole-house smart home lighting systems. The small cutout size supports dense matrix layout and linear continuous arrangement, widely adopted for bulk procurement and implementation of embedded point lighting projects in boutique retail stores, cultural exhibition halls, high-ceiling villas and hotel public areas.

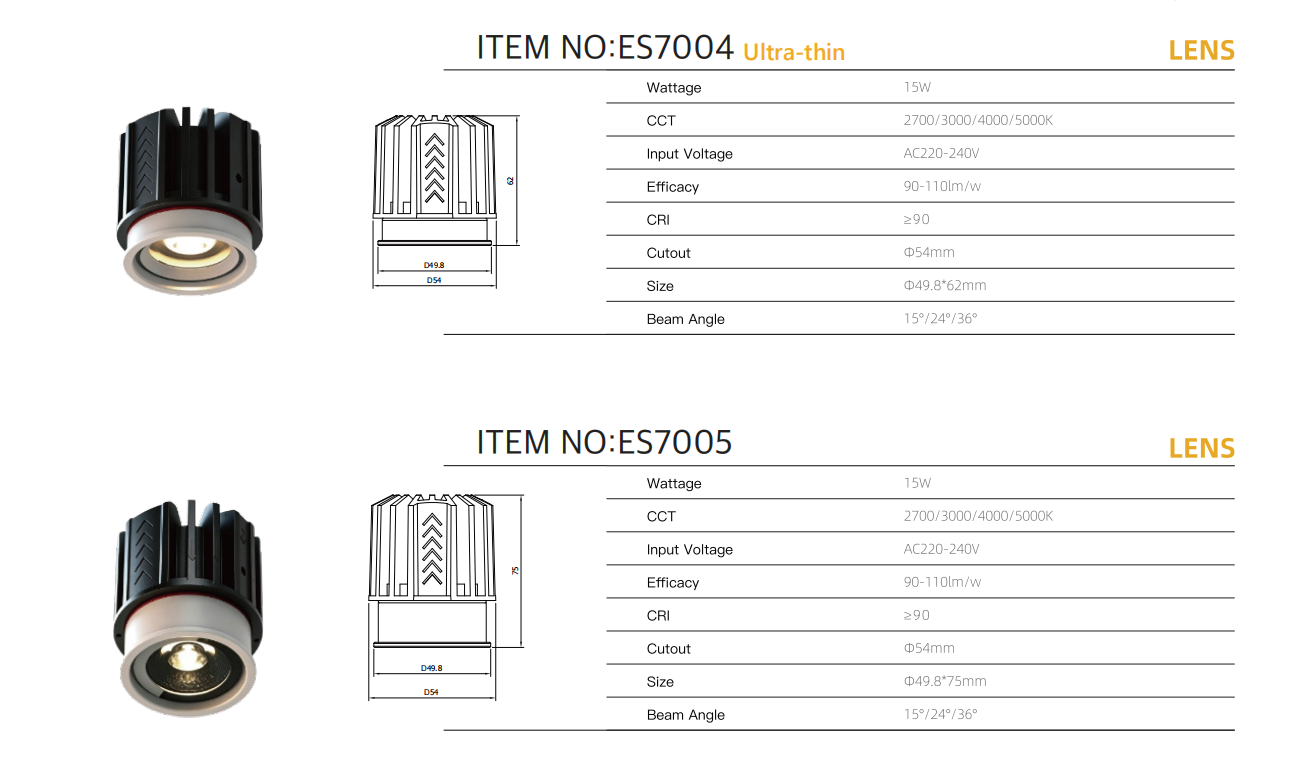

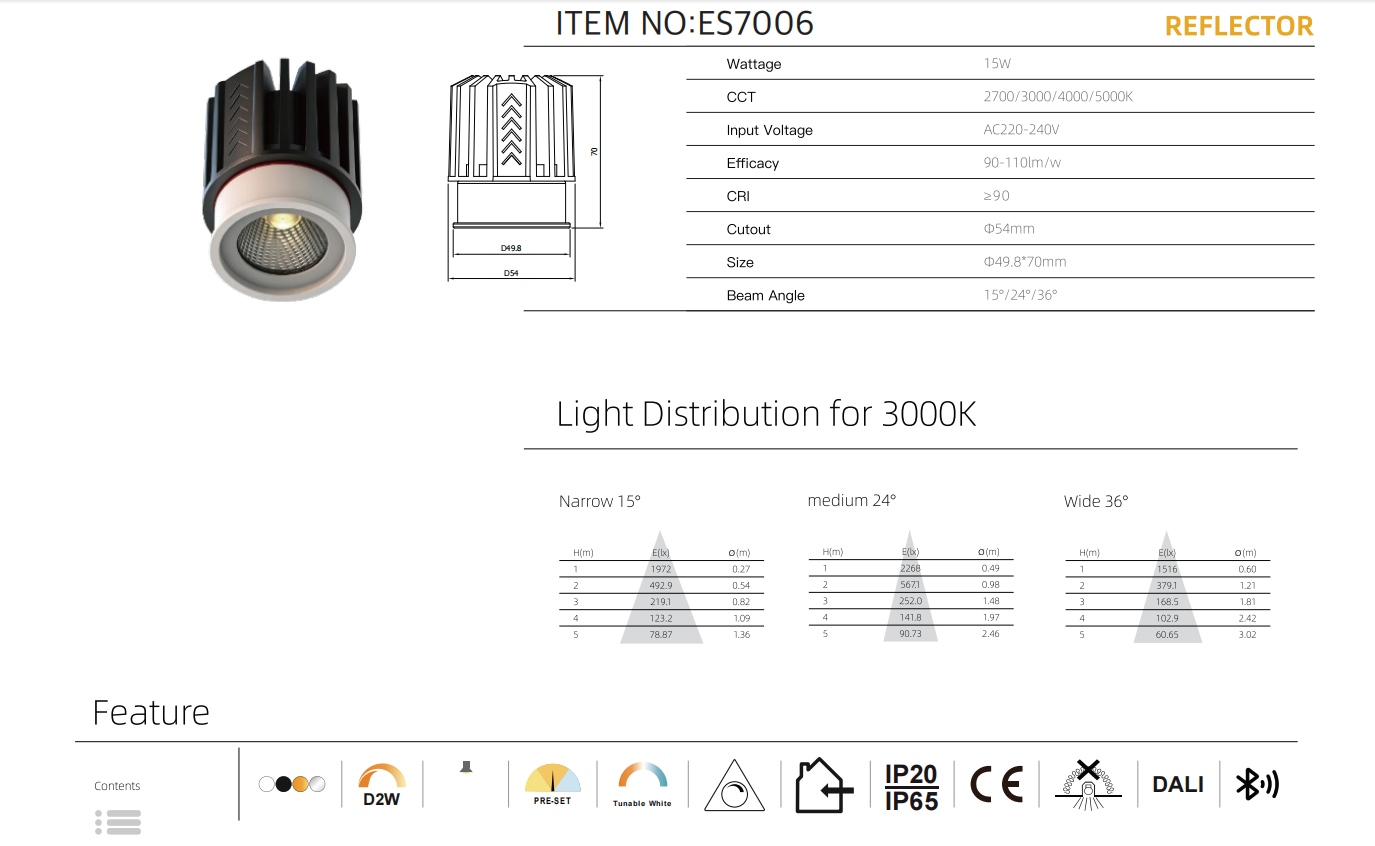

Technical information
