TANCAN MODULE 8W
Product ID: ES7001 ES7002 ES7003
Product description

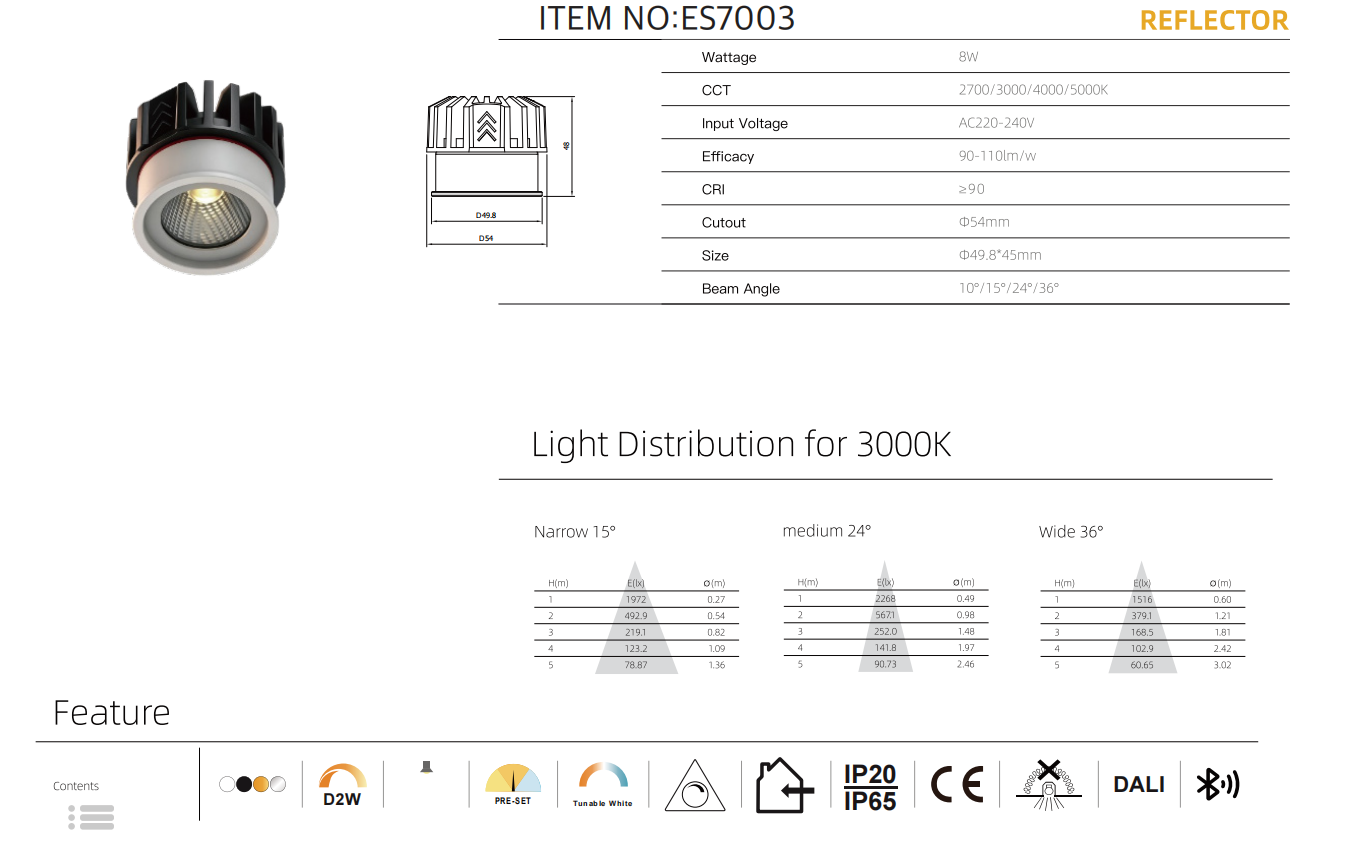

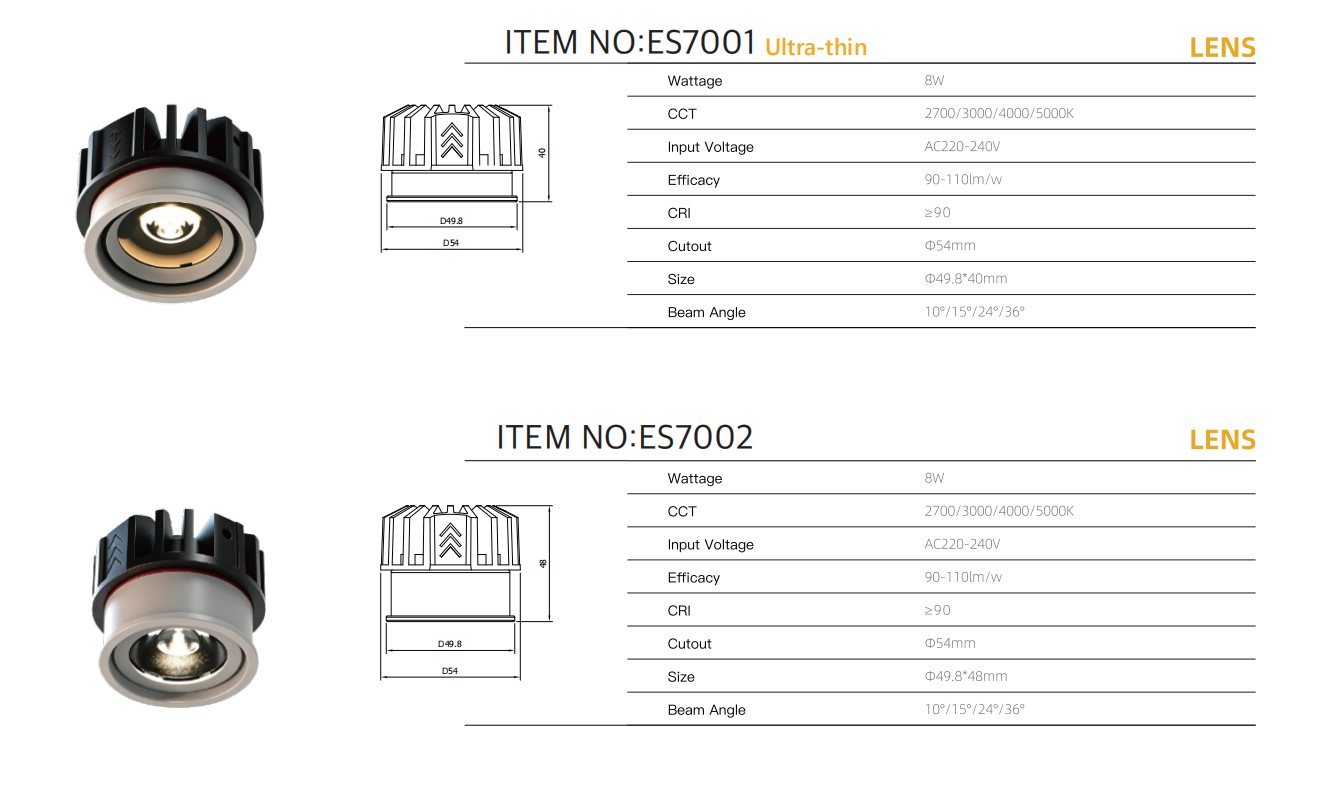

- This series includes three types of 8W recessed module spotlights: ultra-thin lens version ES7001, standard lens version ES7002 and reflector anti-glare version ES7003. All share the same cutout Φ54mm and outer diameter Φ49.8mm, only differing in body depth: 40mm, 48mm and 45mm. The compact mini size fits restricted installation spaces such as narrow ceilings and thin gypsum board ceilings. The luminous efficacy reaches 90-110lm/w with CRI≥90 for excellent color rendering, high energy efficiency, slight light decay during long-term operation and outstanding durability.
- Four fixed CCT options (2700/3000/4000/5000K) cover warm ambient light, neutral daily light and cool white commercial display light. Multiple beam angles 10°/15°/24°/36° support precise wall washing, exhibit spotlighting and basic ambient lighting. Two optional optical designs are available: the lens type delivers accurate beam focusing, while the reflector version adopts honeycomb structure for multi-layer stray light blocking and anti-glare effect, suitable for refined lighting in residential no-main-light projects, clothing stores, art galleries and display cabinets.
- The integrated vertical fin extruded aluminum heat sink is equipped with longitudinal multi-groove air channels to speed up convection heat dissipation and rapidly evacuate heat from COB chip, restraining chip aging and brightness depreciation caused by heat accumulation. The modular split structure allows independent disassembly and replacement of the light module without removing the whole fixture housing, lowering maintenance and replacement cost for convenient after-sales service.
- It is directly driven by AC220-240V mains without extra external driver, simplifying wiring construction and accessory purchasing. IP20 and IP65 protection grades are optional to adapt to dry indoor areas and partially humid bathroom spaces. With CE certification, it complies with indoor lighting safety standards for compliant bulk application in both commercial and residential projects.
- It is natively compatible with DALI bus dimming, Bluetooth wireless smart control, dual CCT switching, scene preset dimming and tunable white, which can be integrated into whole-house smart home lighting systems. Thanks to the mini embedded module design, it can be densely arranged for linear wall washing and multi-point matrix layout, widely used for embedded point lighting projects in decorated apartments, cultural exhibition halls, luxury counters and hotel corridors.
Technical information
