THE AIGE 12W(COB)/7W(COB)
Product ID: ES6020 ES6020-1
Product description

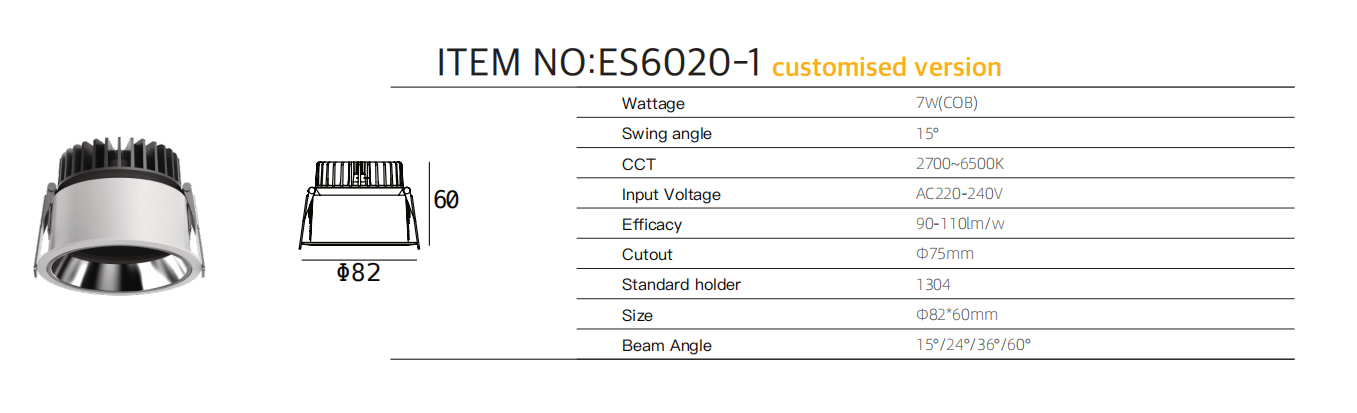

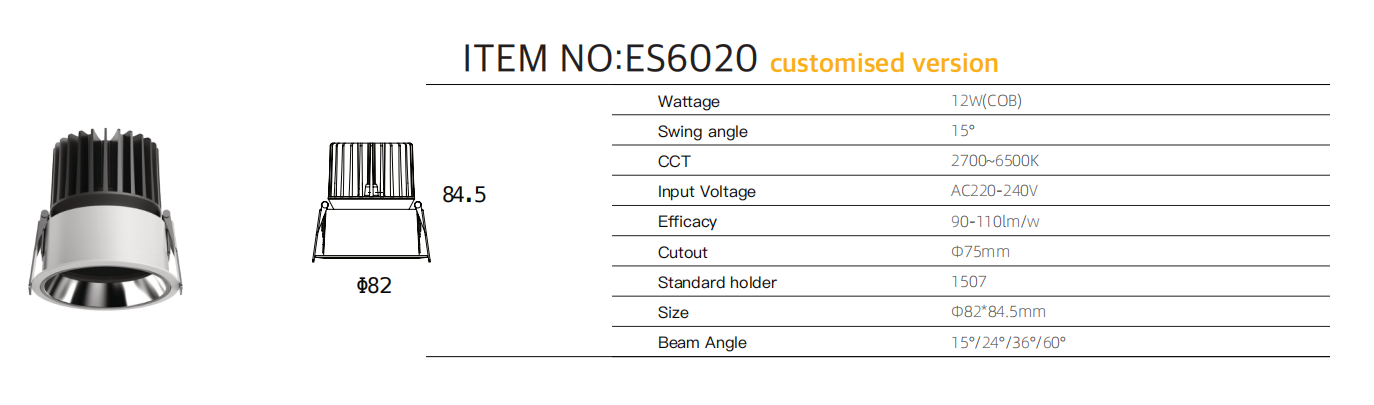

- This series consists of adjustable recessed COB anti-glare spotlights with two customized versions: ES6020 (12W) and ultra-slim ES6020-1 (7W). Both adopt unified standard cutout Φ75mm and outer bezel diameter Φ82. ES6020 features a body height of 84.5mm, while ES6020-1 is an ultra-thin model with only 60mm height, ideal for installation under limited ultra-thin ceiling space. The luminous efficacy reaches 90-110lm/w with high luminous flux and excellent energy efficiency, tiny brightness depreciation during long-term operation and stable durable lighting performance.

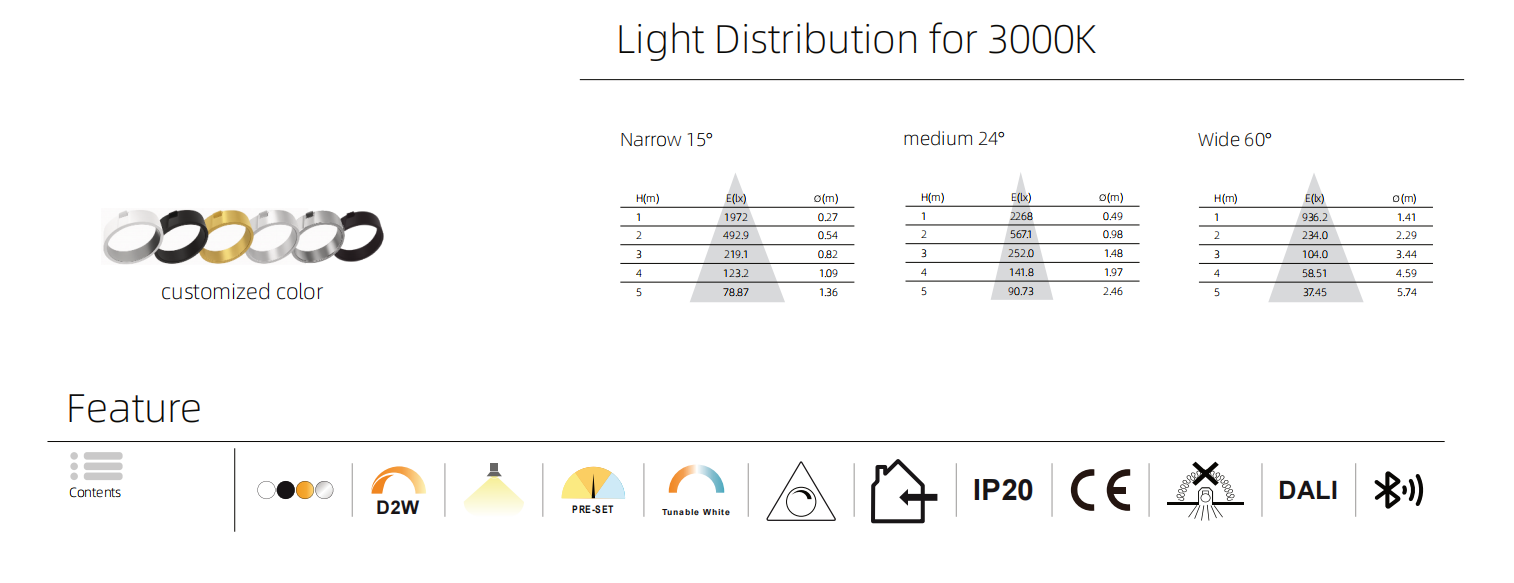

- It supports stepless tunable white from 2700K to 6500K, and customizable RGB color light & Y/W dual CCT ambient light are available on request. Four beam angles (15°/24°/36°/60°) are equipped as standard, and the whole lamp can tilt 15° for directional adjustment. Narrow beam precisely highlights artworks and displayed goods, while wide beam serves as basic ambient lighting, perfectly matching refined lighting scenarios such as residential no-main-light design, clothing stores, art galleries and tea rooms.
- The top cover is designed with vertical fin aluminum heat sink and three-dimensional multi-channel heat conduction structure to rapidly dissipate heat from COB chip, preventing chip aging and efficacy loss caused by heat accumulation. The deep matte inner reflector blocks stray light via multi-layer light control to greatly reduce direct glare, delivering soft and eye-friendly light with high anti-glare grade to ease visual fatigue during long-time viewing.
- The two models are equipped with standard stainless steel spring clips 1507 and 1304 respectively, with anti-fatigue elasticity to avoid loosening and ensure firm fixation after ceiling installation. It adopts classic black-and-white contrast appearance with compact minimalist structure, and housing colors can be customized per project demands. Recessed clip-in installation simplifies construction, and single lamp disassembly for maintenance and replacement is convenient in later stage.
- It can be directly driven by AC220-240V mains without extra external driver, cutting wiring and accessory costs. It is natively compatible with DALI bus dimming, Bluetooth smart control, dual CCT switching, scene preset dimming and tunable white. The RGB variant can connect to smart home systems for ambient scene linkage. With CE certification, it is widely used for bulk lighting project procurement in decorated apartments, chain retail stores, cultural exhibition halls and hotel guest rooms.
Technical information
