THE AIGE 7W(SMD)；12W(COB)/21W(COB)
Product ID: ES6019 ES6019-1
Product description

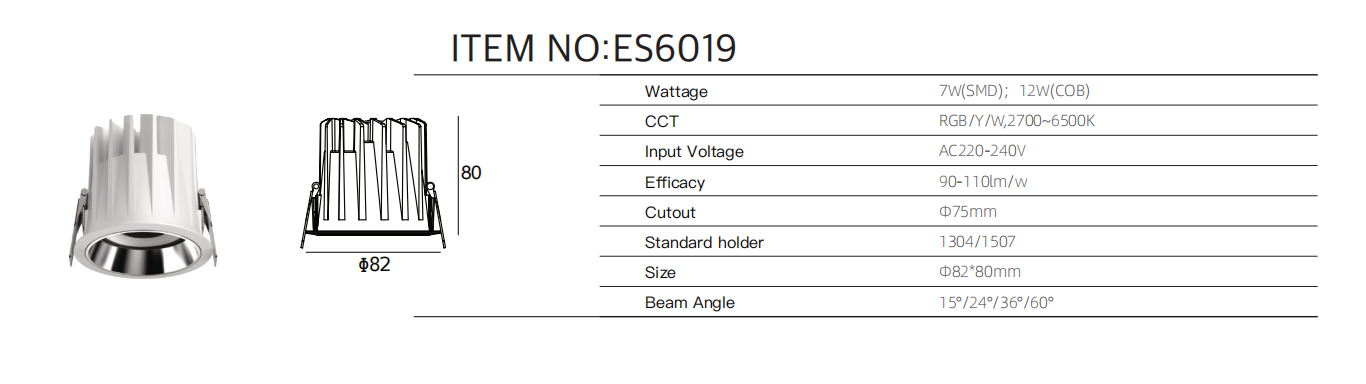

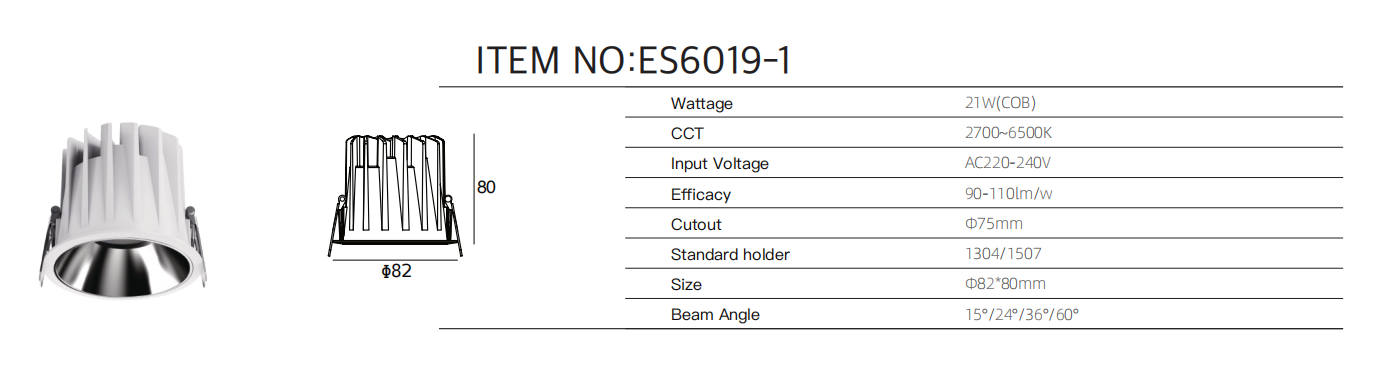

- This series consists of two recessed spotlights: standard model ES6019 and high-power COB model ES6019-1. They share a unified standard cutout of Φ75mm and overall dimension Φ82*80mm. The ultra-slim body height of only 80mm is compatible with pre-buried ceiling installation for most residential and commercial projects. Multiple light source options are available: ES6019 has 7W SMD and 12W COB versions, while ES6019-1 adopts 21W high-power COB chip. The luminous efficacy reaches 90-110lm/w to deliver bright illumination with low power consumption, minimal light decay during long-term operation and reliable long service life.

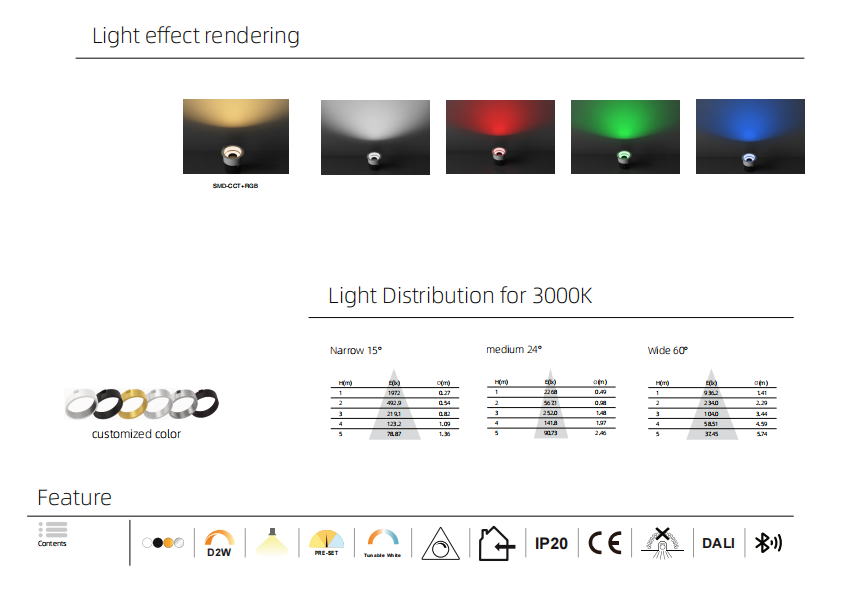

- Flexible CCT customization is supported. The basic version enables stepless color temperature adjustment from 2700K to 6500K, and customized RGB color lighting as well as Y/W dual-color temperature ambient light are optional. Four beam angles (15°/24°/36°/60°) are equipped as standard. Narrow angles realize precise spotlighting for paintings and exhibits, while wide angles are applied to basic ambient lighting, fitting diverse scenarios including residential no-main-light design, boutique shops, exhibition halls and catering atmosphere lighting.
- The lamp body adopts integrated vertical fin extruded aluminum heat dissipation structure with large-area longitudinal air channels to speed up convection heat dissipation. Thermal conductivity is enhanced for the 21W high-power model to rapidly dissipate heat generated by LED chips, restraining chip aging and brightness depreciation caused by heat accumulation. The deep inner reflector blocks stray light via multi-layer light control for excellent anti-glare performance, offering soft and glare-free lighting.
- Standard stainless steel spring clips of 1304/1507 specification are adopted with durable elasticity against deformation, providing firm clamping force to prevent falling off after ceiling installation. It features an integrated minimalist all-white appearance with customizable housing colors. Recessed clip-in installation simplifies on-site construction and allows easy disassembly for maintenance and individual lamp replacement later.
- It can be directly driven by AC220-240V mains electricity without additional external driver, reducing wiring and accessory costs. It is natively compatible with DALI bus dimming, Bluetooth wireless smart control, dual CCT switching, scene preset dimming and tunable white. The RGB version supports color and scene linkage via smart systems. With CE certification, it is suitable for bulk procurement and project implementation in villa decoration, chain stores, art galleries and hotel public areas.
Technical information
