LUMAEDGE 13W/2*13W
Product ID: ES6014 ES6015
Product description
- This series includes two spotlights: single-head ES6014 and trimless pre-embedded double-head ES6015. Each single head has a fixed power of 13W with a unified cutout width of 75mm, cutout sizes are 75×75mm and 150×75mm respectively, and both share the same body height of 86.5mm, compatible with pre-buried construction for shallow and deep ceilings. The luminous efficacy ranges from 85 to 100lm/w with high-efficiency power saving, slow brightness depreciation during long-term operation and stable long service life.

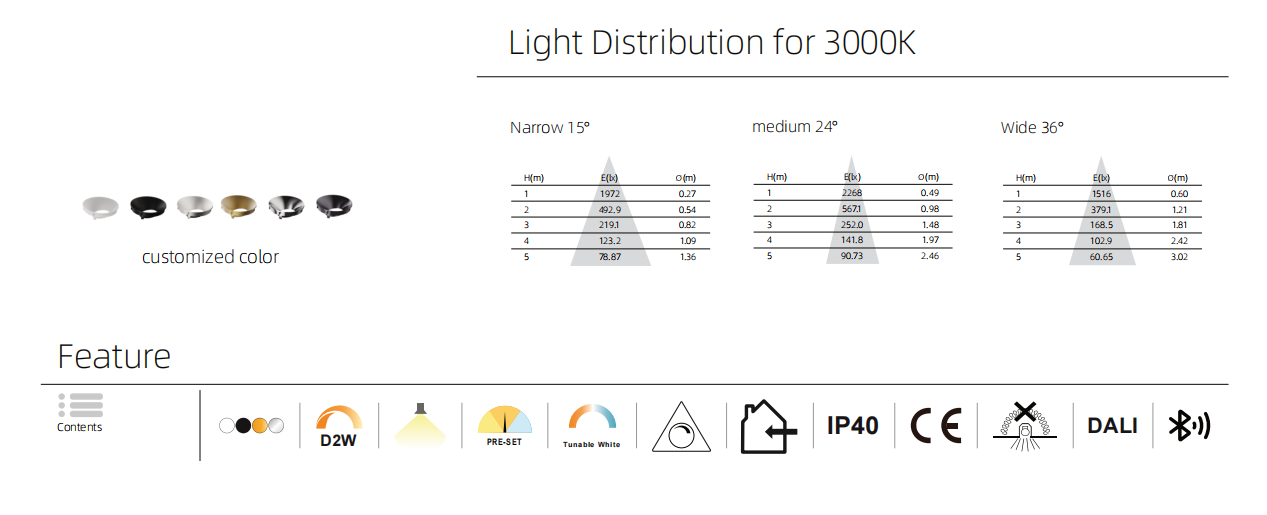

- Four CCT options (2700K/3000K/4000K/5000K) are available to cover three major scenarios: warm ambient lighting, neutral daily basic lighting, and cool white display lighting for commodities and exhibits. Multiple beam angles 10°/15°/24°/36°/50° can realize ultra-narrow long-distance wall washing, pinpoint accent spotlight and wide-area ambient floodlight, suitable for entry corridors, TV background walls, display cabinets and artwork lighting in galleries.
- It adopts trimless structure with pre-buried wings, no exposed bezel will be left on ceiling after plastering to achieve ultra-minimal invisible no-main-light effect. The single and double heads are integrally formed; the double-head model only needs one ceiling cutout to complete two-point lighting, greatly reducing drilling work and construction steps. The reflector can be customized in matte white, matte black, electroplated black, gold and other colors to match minimalist, light luxury and industrial decoration styles.
- Each lamp head is equipped with vertical fin extruded aluminum heat sink with longitudinal air channels to speed up air convection and rapidly dissipate LED operating heat, effectively restraining chip aging and brightness depreciation caused by high temperature. Pre-buried clip installation ensures firm fixation against falling off, and the lamp body can be detached separately for maintenance and replacement in later stage. With IP40 dustproof protection and CE certification, it is safe and compliant for use in indoor dry spaces.
- It can be directly driven by AC220-240V mains electricity without extra external driver power supply. It is natively compatible with full-set intelligent lighting systems including DALI bus dimming, Bluetooth smart control, dual CCT switching, preset dimming and tunable white, and can be integrated into whole-house smart home lighting solutions. It is widely used for bulk procurement in linear atmosphere lighting projects of decorated apartments, homestays, hotel guest rooms and chain retail stores.

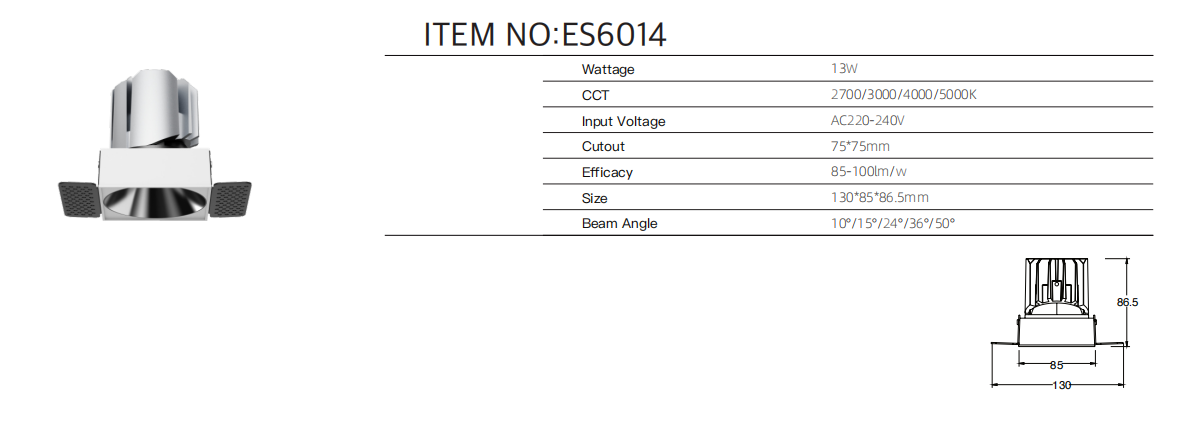

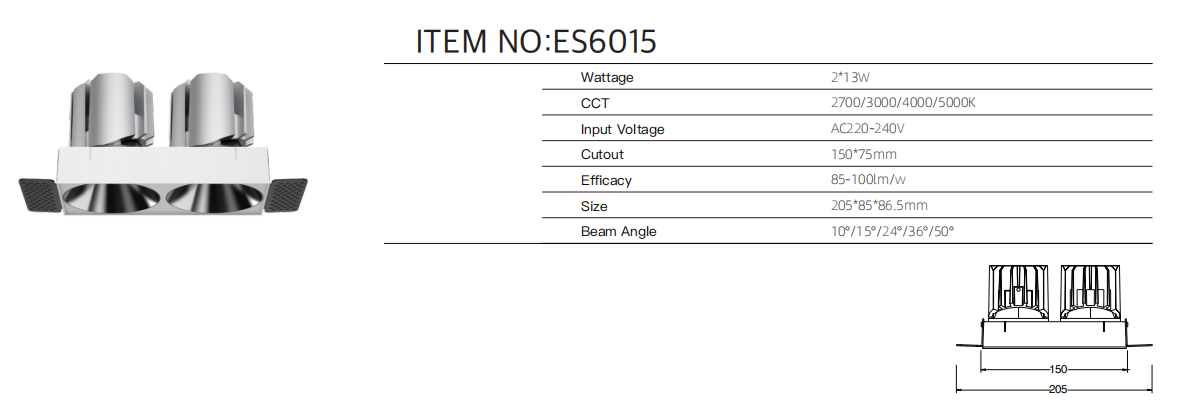

Technical information
