LUMAEDGE 13W/2*13W
Product ID: ES6012 ES6013
Product description

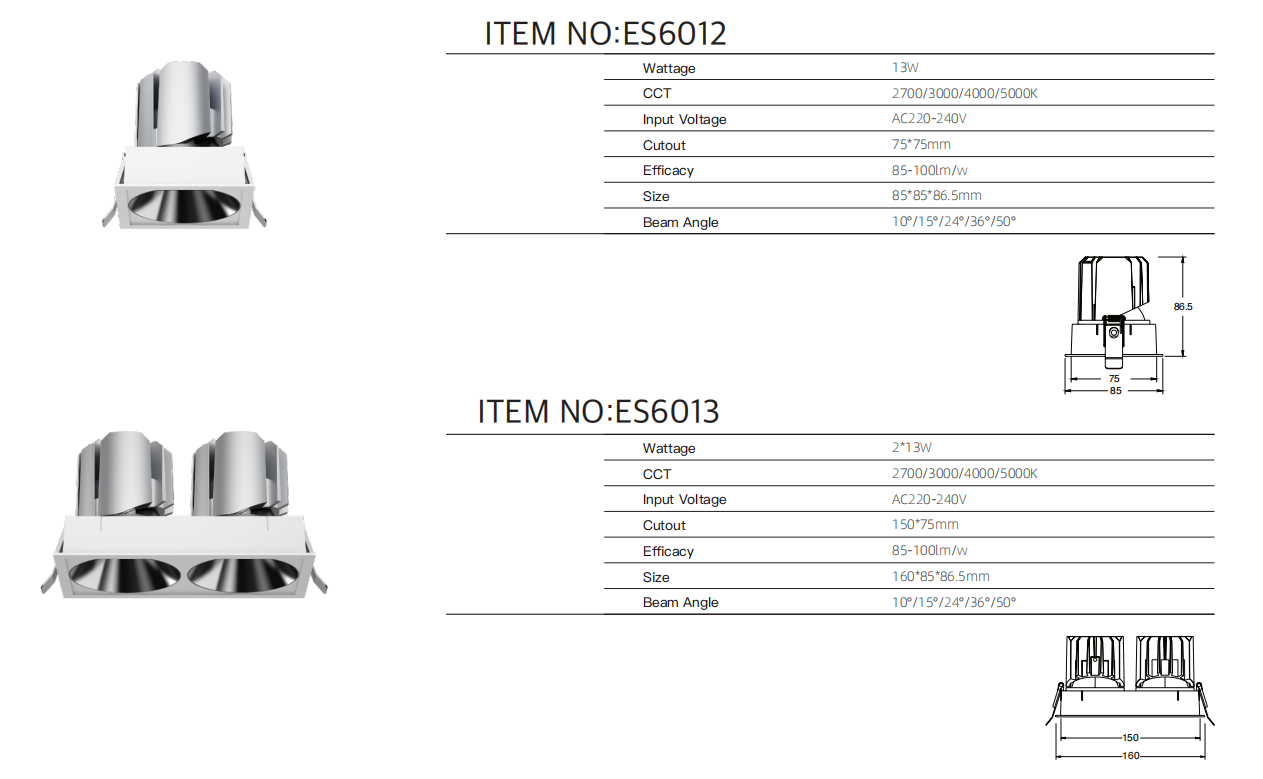

- This series consists of square recessed grille spotlights including single-head ES6012 and double-head ES6013. Each single head is rated at 13W with unified cutout width of 75mm, cutout sizes are 75×75mm and 150×75mm respectively, and the unified body depth is 86.5mm, compatible with hole drilling construction for shallow and deep ceilings. All models maintain steady luminous efficacy of 85-100lm/w with high-efficiency energy-saving photoelectric conversion, minimal light decay during long-term operation and long durable service life.

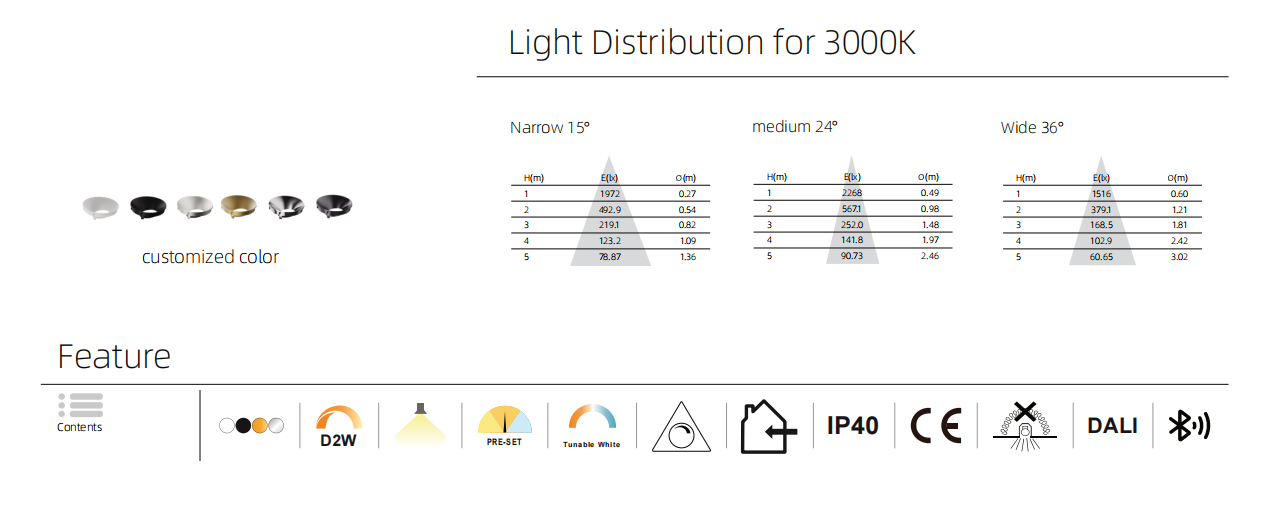

- Four fixed CCT options 2700K/3000K/4000K/5000K are available to create warm atmosphere lighting, neutral daily basic lighting and cool white high-definition display lighting for goods and artworks. Five optional beam angles 10°/15°/24°/36°/50° allow flexible switching between ultra-narrow wall washing beam, pinpoint spotlight and wide-area ambient floodlight, suitable for lighting of entryways, background walls, display cabinets and galleries.
- It adopts integrated frame structure. The double-head version only requires one ceiling cutout to realize two-point lighting, which greatly reduces drilling quantity and on-site construction procedures. The inner reflector can be customized in matte white, matte black, electroplated black, gold and other colors. The neat square minimalist outline fits modern minimalist, light luxury and commercial interior decoration styles perfectly.
- Each lamp head is equipped with vertical fin extruded aluminum heat sink with longitudinal air channels to speed up convection heat dissipation and quickly drain heat generated by LED, preventing chip overheating aging and brightness depreciation caused by heat accumulation. Standard spring clip recessed mounting provides proper clamping force for firm fixation after installation, and it is easy to disassemble for maintenance and lamp replacement later. With IP40 dustproof rating and CE certification, it can work stably in indoor dry areas.
- It can be directly powered by AC220-240V national standard mains electricity without additional external driver power supply. It is natively compatible with full set of intelligent lighting control systems including DALI bus dimming, Bluetooth smart linkage control, dual CCT switching, preset dimming and tunable white, which can connect to whole-house smart home lighting system. It is widely applied to bulk procurement and project implementation of residential no-main-light design, chain stores, hotel corridors and exhibition halls.
Technical information
