LUMAEDGE 13W

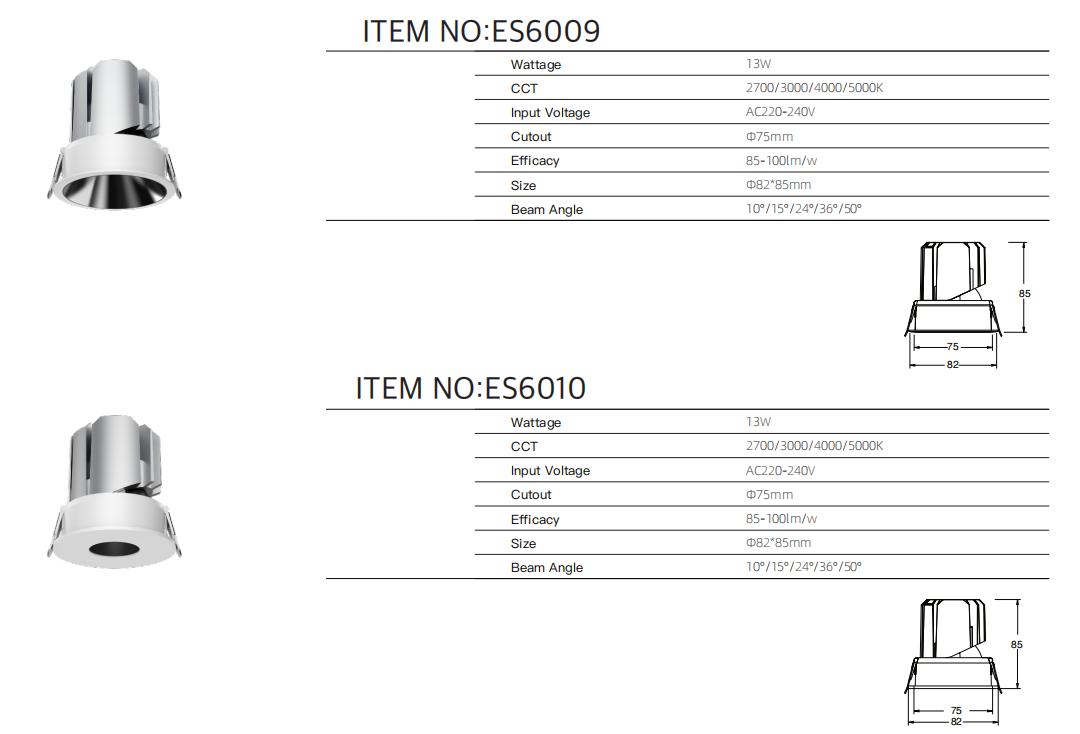

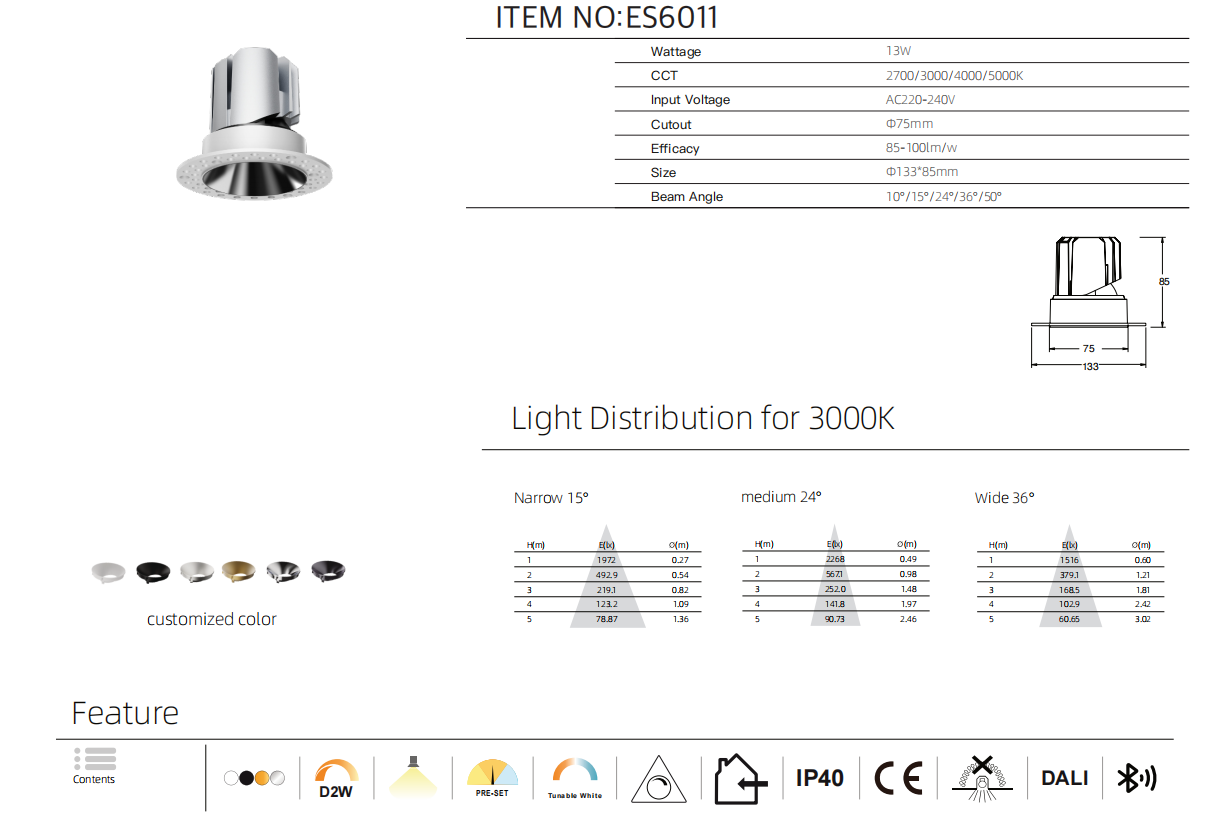

Product ID: ES6009 ES6010 ES6011
Product description
- This series has three structural versions: standard recessed ES6009, deep anti-glare ES6010 and trimless pre-embedded ES6011. All models adopt fixed 13W power, unified standard cutout Φ75mm and 85mm body height, compatible with shallow and deep ceiling construction. The luminous efficacy reaches 85-100lm/w with outstanding photoelectric conversion efficiency, bright output and low power consumption, slight light decay during long-term operation and reliable long service life.
- Four fixed CCT options (2700K/3000K/4000K/5000K) are available to fully cover three major scenarios: warm ambient lighting, neutral natural daily lighting and cool white display lighting for commercial exhibits. Multiple beam angles 10°/15°/24°/36°/50° enable flexible switching between ultra-narrow long-distance beam, medium accent lighting and wide-area ambient floodlight, ideal for wall washing of paintings, merchandise display and basic space illumination.
- The three items differ in installation craft: ES6009 is recessed mounting with standard protruding bezel; ES6010 applies small-aperture deep cup light hiding structure to greatly reduce direct glare; ES6011 is trimless pre-embedded type with no exposed frame on ceiling after finishing for invisible minimalist effect. Custom colors including matte white, matte black, electroplated black and gold are optional for bezel and reflector to match minimalist, light luxury and industrial decoration styles.
- The integrated vertical fin extruded die-cast aluminum lamp body speeds up air convection heat dissipation via longitudinal multi-channels to rapidly evacuate heat generated by LED, effectively restraining chip aging and brightness depreciation caused by high temperature. Spring clip recessed fixation allows easy disassembly and firm locking without falling off. With IP40 protection grade and CE certification, it meets safety standards for indoor dry environment application.
- It can be directly driven by AC220-240V mains without extra external driver installation. It is natively compatible with multiple intelligent lighting systems including DALI bus dimming, Bluetooth wireless smart control, dual CCT switching, preset dimming and tunable white, which can be integrated into whole-house smart home lighting schemes. It is widely used for bulk procurement of lighting projects in residential no-main-light design, boutique stores, art galleries and hotel guest rooms.
Technical information
