LUMAEDGE 9W/2*9W/3*9W
Product ID: ES6006 ES6007 ES6008
Product description

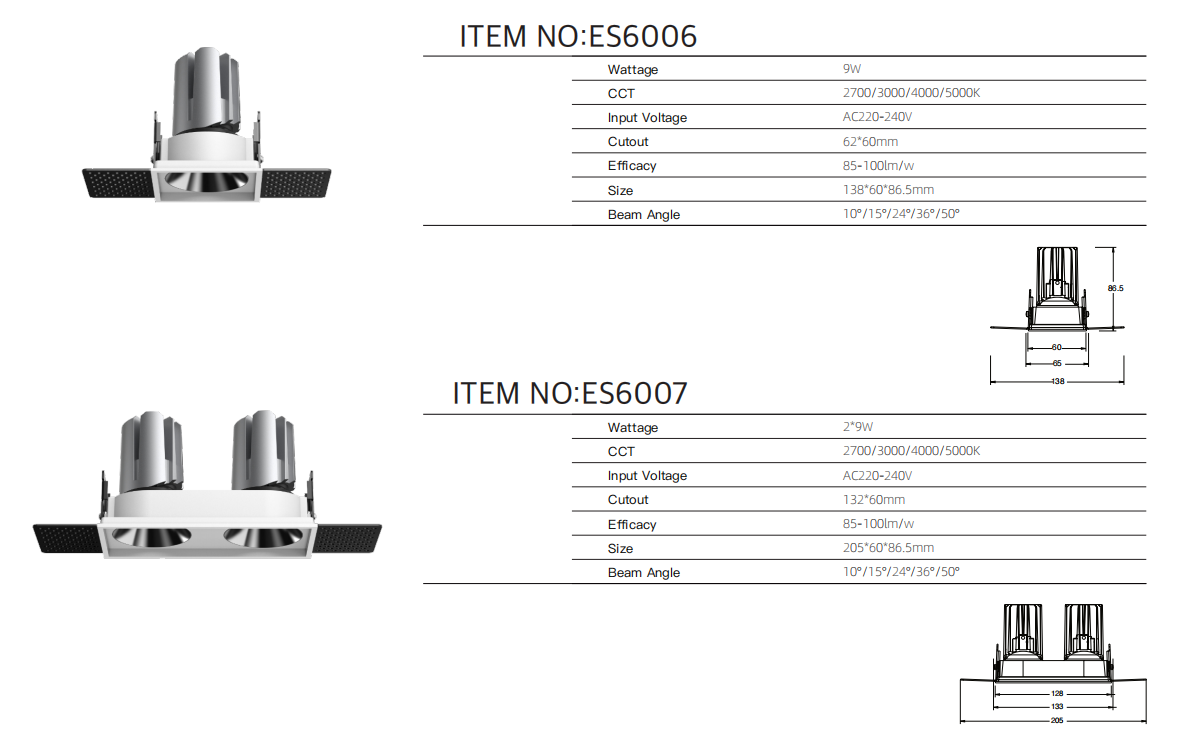

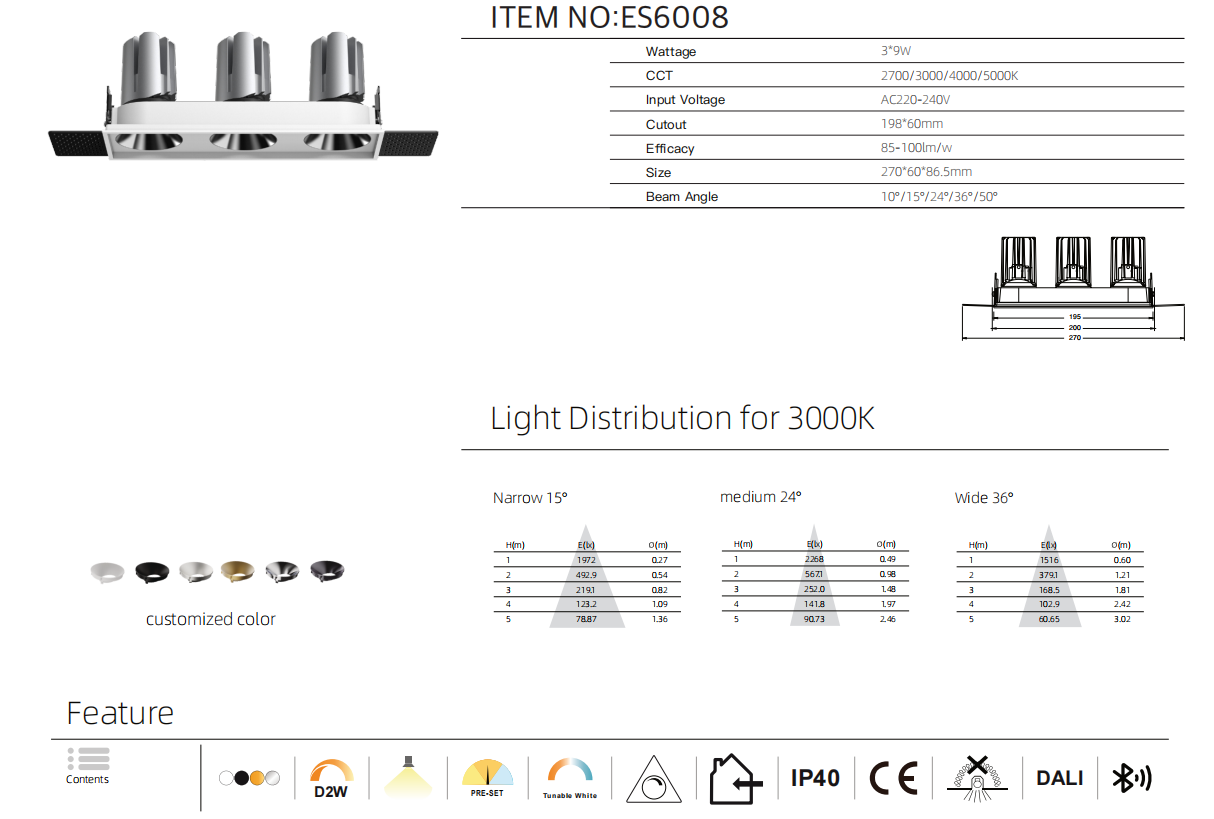

- This is a series of trimless pre-embedded linear grille spotlights including single-head ES6006, double-head ES6007 and triple-head ES6008. Each lamp head is rated at 9W with fixed cutout width of 60mm, and the cutout length is 62×60mm, 132×60mm and 198×60mm respectively according to head quantity. All models share unified body depth of 86.5mm, compatible with pre-buried construction of shallow and deep ceilings. Luminous efficacy ranges from 85 to 100lm/w with high-efficiency energy-saving photoelectric conversion, slow light decay during long-term operation and stable long service life.
- Four CCT options (2700K/3000K/4000K/5000K) are available to cover warm ambient lighting, neutral natural basic lighting and cool white merchandise display lighting. Multiple beam angles 10°/15°/24°/36°/50° can realize ultra-narrow long-distance wall washing, pinpoint accent lighting for exhibits and wide-area ambient floodlight, suitable for entry corridors, TV background walls, display shelves and artwork lighting in galleries.
- It adopts trimless pre-embedded flange structure with textured pre-buried wings on both sides. No bezel will be exposed on ceiling after plastering to achieve ultra-minimal invisible no-main-light effect. The integrated multi-head design enables multi-point lighting with only one ceiling cutout, greatly reducing drilling quantity and construction steps. The reflector can be customized in matte white, matte black, electroplated black, gold and other colors to match various residential and commercial decoration styles.
- Each lamp head is equipped with vertical fin extruded aluminum heat sink with multi-channel air convection to rapidly dissipate LED operating heat, preventing chip aging and brightness depreciation caused by high temperature. The pre-embedded structure allows individual disassembly and replacement of lamp body for easy maintenance. With IP40 protection rating and CE certification, it is safe for application in indoor dry spaces.
- It can be directly powered by AC220-240V mains without extra external driver. It is natively compatible with full-set intelligent lighting control systems including DALI dimming, Bluetooth smart linkage, dual CCT switching, preset dimming and tunable white, which can be integrated into whole-house smart home lighting solutions. It is widely used for bulk procurement in linear lighting projects of fine decoration apartments, homestays, hotel guest rooms and chain retail stores.
Technical information
