LUMAEDGE 9W/2*9W/3*9W

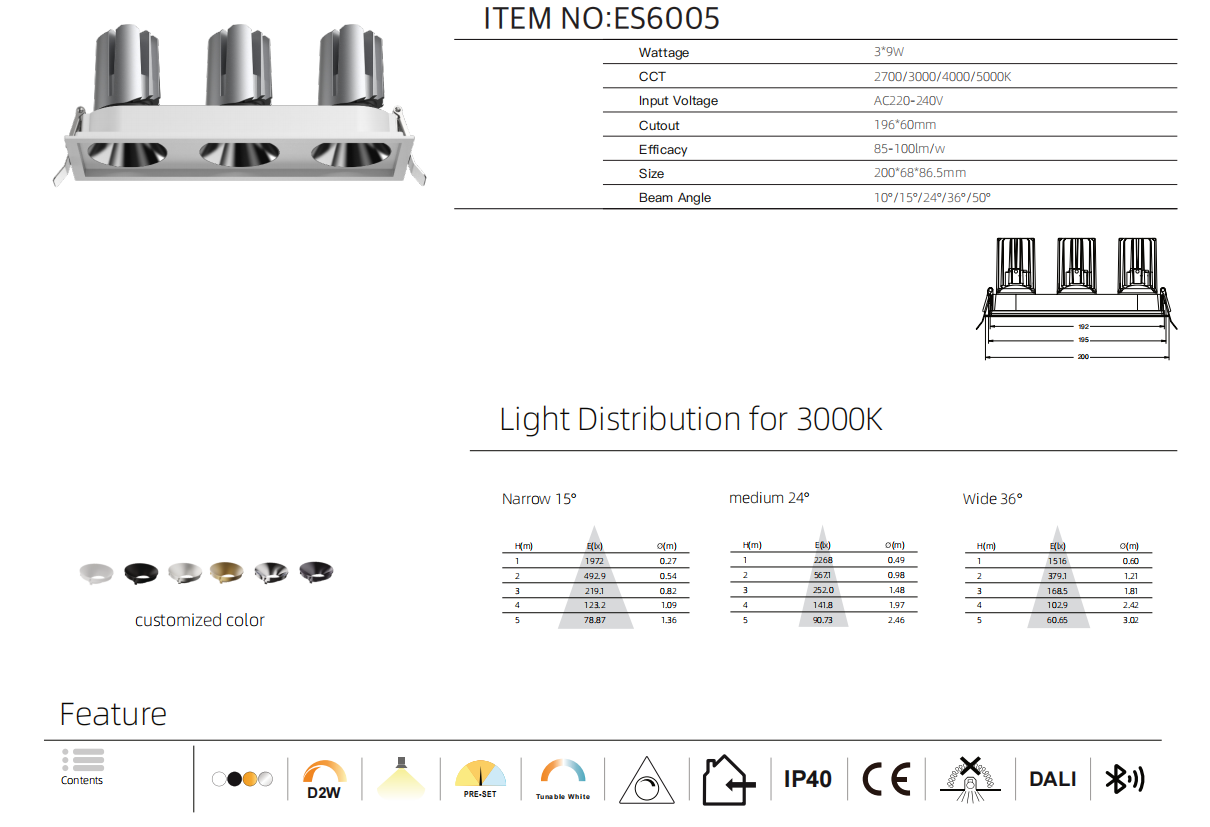

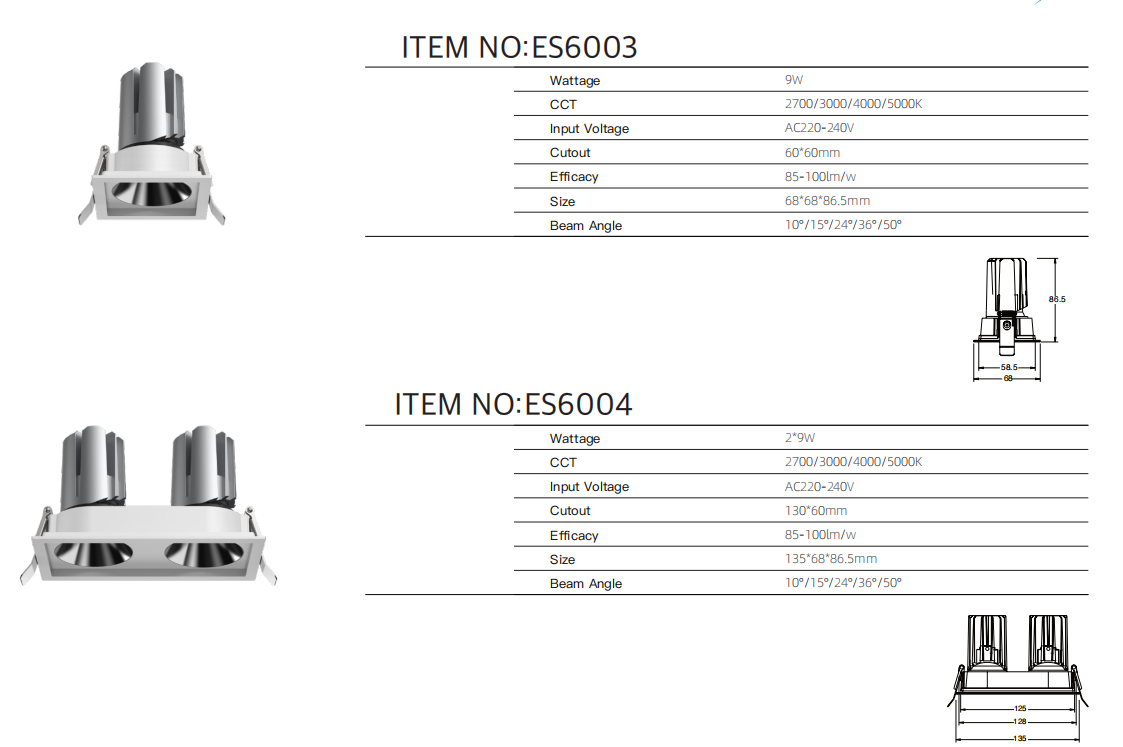

Product ID: ES6003 ES6004 ES6005
Product description
- This grille spotlight series includes three models: single-head ES6003, double-head ES6004 and triple-head ES6005. Each single head is rated at 9W, and total power increases with the number of heads. All versions share a unified cutout width of 60mm, with rectangular ceiling holes of 60×60mm, 130×60mm and 196×60mm respectively, and identical body height of 86.5mm, compatible with shallow and deep ceiling installation. It delivers steady luminous efficacy of 85-100lm/w for high efficiency and energy saving, minimal light decay during long-term operation and long reliable service life.
- Four fixed CCT options (2700K/3000K/4000K/5000K) are provided to cover warm ambient lighting, neutral white daily lighting and cool white merchandise display lighting. Multiple beam angles 10°/15°/24°/36°/50° are optional to realize ultra-narrow wall washing, targeted accent lighting for exhibits and wide-area ambient floodlight, perfectly suitable for corridors, background walls, shelf displays and artwork highlighting in galleries.
- Adopting integrated square frame structure with multiple heads molded as one piece, it realizes multi-point lighting with only one ceiling cutout during installation, greatly reducing drilling work and construction procedures. The reflector can be customized in matte white, matte black, electroplated black, gold and other colors to match different decoration styles. The neat square minimalist appearance fits modern minimalist, light luxury and industrial interior design.
- Each lamp head is equipped with vertical fin extruded aluminum heat sink with multi-channel air convection structure to quickly dissipate heat generated by LED, effectively restraining brightness depreciation and chip aging caused by high temperature. Spring clip recessed mounting offers balanced clamping force for firm fixation without loosening, and allows easy disassembly for maintenance and replacement. With IP40 protection grade and CE certification, it meets safety standards for indoor dry environment application.
- It can be directly powered by AC220-240V mains without extra external driver power supply. It is natively compatible with various intelligent lighting control systems including DALI dimming, Bluetooth wireless smart control, dual CCT switching, preset dimming and tunable white, and can be integrated into whole-house smart home lighting systems. It is widely used for bulk procurement in residential no-main-light design, chain retail stores, exhibition halls and linear lighting projects in hotel public areas.
Technical information
