VIVID MIRROR 9W/13W
Product ID: ES5022 ES5023
Product description
- This series consists of two trimless recessed offset anti-glare spotlights ES5022 (9W) and ES5023 (13W), with pre-buried cutout sizes matching reserved ceiling holes Φ55mm and Φ75mm respectively. Adopting trimless pre-embedded technology, it leaves no extra bezel on ceiling after installation for ultra-minimal invisible effect. It maintains steady luminous efficacy of 50-60lm/w, specially designed for directional lighting in vanity mirror areas, cloakrooms and bathrooms, featuring mild light decay and high durability during long-term use.
- CCT can be freely selected within a wide range from 2700K to 6500K, covering warm ambient light, neutral daily light and cool high-definition fill light for all scenarios. It adopts offset inclined optical path, with beam tilting 35° towards mirrors and only 15° towards human eyes, which greatly avoids direct glare. It delivers even and soft facial lighting without dazzling during makeup, effectively solving the problems of harsh light and heavy facial shadows in bathroom mirror lighting.

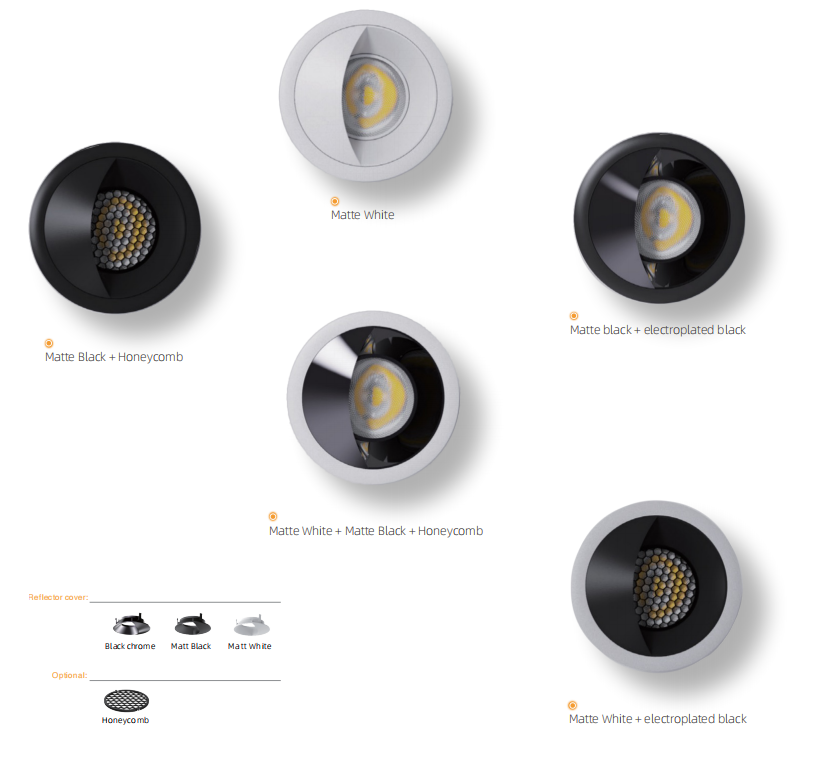

- Diversified customization is available for appearance and reflective structure, including finished styles such as matte white, matte black & electroplated black, matte black with honeycomb grille, two-tone matte white & matte black with anti-glare honeycomb mesh. Three separate reflector covers (black chrome, matte black, matte white) are optional, and honeycomb anti-glare grille can be added as required. The multi-layer light control structure blocks stray light leakage to upgrade anti-glare performance and produce neat light effect.
- The integrated fin die-cast aluminum lamp body features vertical heat dissipation air channels to speed up air convection and rapidly dissipate heat generated by LED, restraining light source aging and brightness depreciation caused by high temperature. The integrally formed pre-embedded flange can be directly embedded and plastered during construction, enabling convenient disassembly, maintenance and replacement in later stage. With IP44 dustproof and splash-proof rating, it can be directly applied to humid bathroom areas.
- It is directly driven by AC220-240V mains voltage, natively compatible with multiple intelligent systems including DALI bus dimming, Bluetooth smart control, dual CCT dimming, preset dimming and tunable white, and comes with CE certification. It is mainly applied to residential no-main-light design, hotel guest rooms, homestay fine decoration and commercial bathroom projects. The trimless pre-embedded design fits modern minimalist, wabi-sabi and light luxury decoration styles.

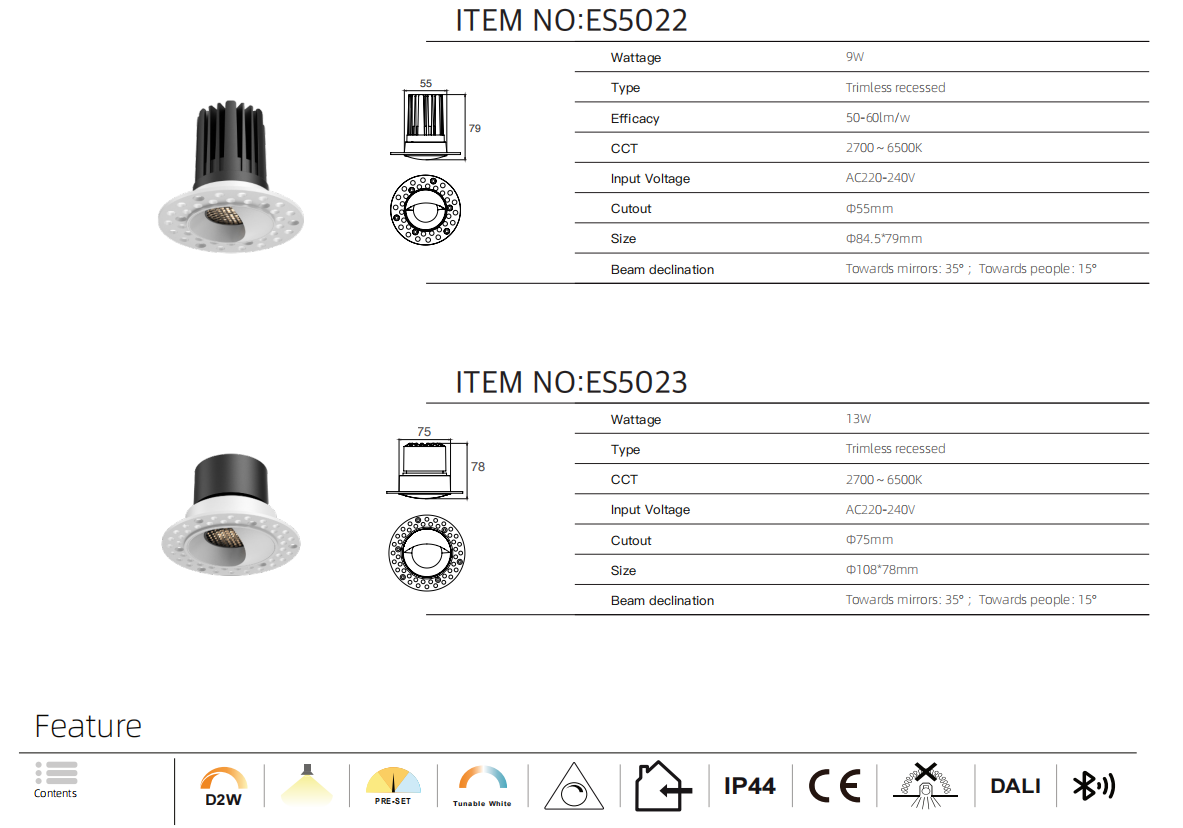

Technical information
