MEGA300S 10W～12W
Product ID: ES4004 ES4005 ES4006
Product description

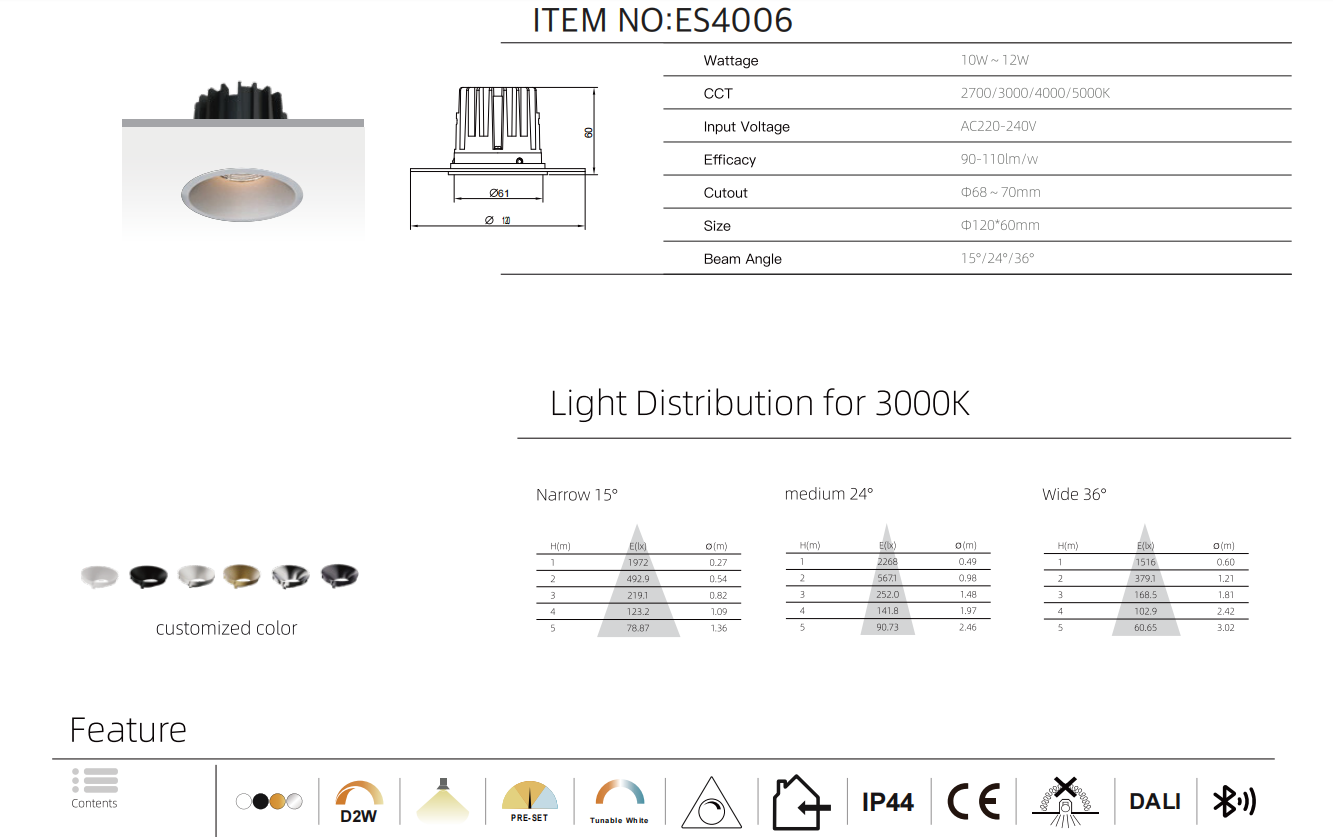

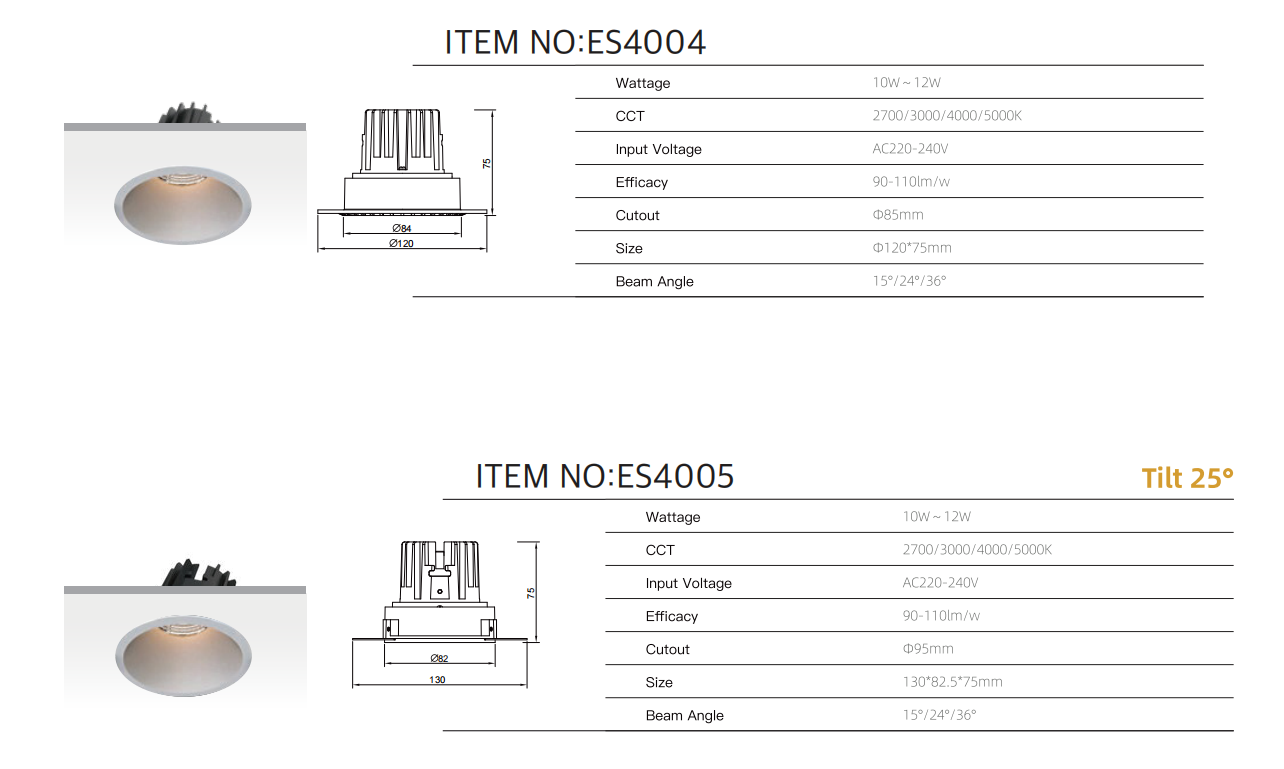

- Three trimless pre-embedded downlight models ES4004, ES4005 and ES4006 support optional power from 10W to 12W. They feature stable luminous efficacy of 90-110lm/w and excellent photoelectric conversion efficiency, delivering sufficient brightness under the same power consumption with energy saving and tiny light decay during long-term operation for long and stable service life.
- Four color temperatures (2700K/3000K/4000K/5000K) are provided to meet diverse demands including warm atmosphere lighting, neutral daily illumination and cool white commercial display. Three narrow beam angles of 15°/24°/36° are optional for precise targeted spotlighting with clean light spot and strong layering effect for accent lighting.
- Model ES4004 and ES4005 support 25° tilt angle adjustment, so the lighting direction can be flexibly adjusted without ceiling modification after pre-embedded installation. The three versions match cutout sizes of Φ85mm, Φ95mm and Φ68~70mm respectively, with two body heights of 75mm and 60mm, compatible with shallow & deep ceilings and various reserved holes for construction.
- Custom colors such as black, white, gunmetal grey and gold are available for the bezel and anti-glare inner baffle to match minimalist, light luxury and industrial decoration styles. The integrated fin die-cast aluminum lamp body has large heat dissipation area to rapidly disperse operating heat and prevent LED chip aging from heat accumulation. With IP44 dustproof and splash-proof rating, it can be applied in humid spaces like bathrooms and balconies.
- It can be directly powered by standard AC220-240V mains electricity. The trimless pre-embedded structure enables easy maintenance and lamp replacement in later stage. It is compatible with multiple intelligent control systems including DALI dimming, Bluetooth smart dimming, dual CCT switching and preset dimming. With CE certification, it is available for bulk procurement and project deployment in residential decoration, hotels, shopping malls and office buildings.
Technical information
