MEGA 12W
Product ID: ES3008
Product description
- It adopts trimless pre-embedded recessed structure with rated power of 12W. It is equipped with standard Bridgelux LED and can be upgraded to CREE LED, with the premium version reaching maximum luminous flux up to 900lm. The standard model has CRI≥90 while the CREE upgraded version features CRI 93. With luminous efficacy of 90-110lm/W, it is energy-saving with high efficiency and tiny light decay during long-term operation, which can faithfully restore the true color and delicate texture of objects.
- The main body is precisely machined from 316 stainless steel and anodized aluminum, which is resistant to salt spray and moisture corrosion. It is specially designed for harsh high-humidity and salt-laden environments such as yachts, ships and marine outdoor scenes. It comes with factory-standard gunmetal grey anti-glare inner baffle, and the recessed optical structure achieves UGR＜10 deep anti-glare effect. The single-lens optical path outputs even and clean beam without multiple ghost shadows and stray light.

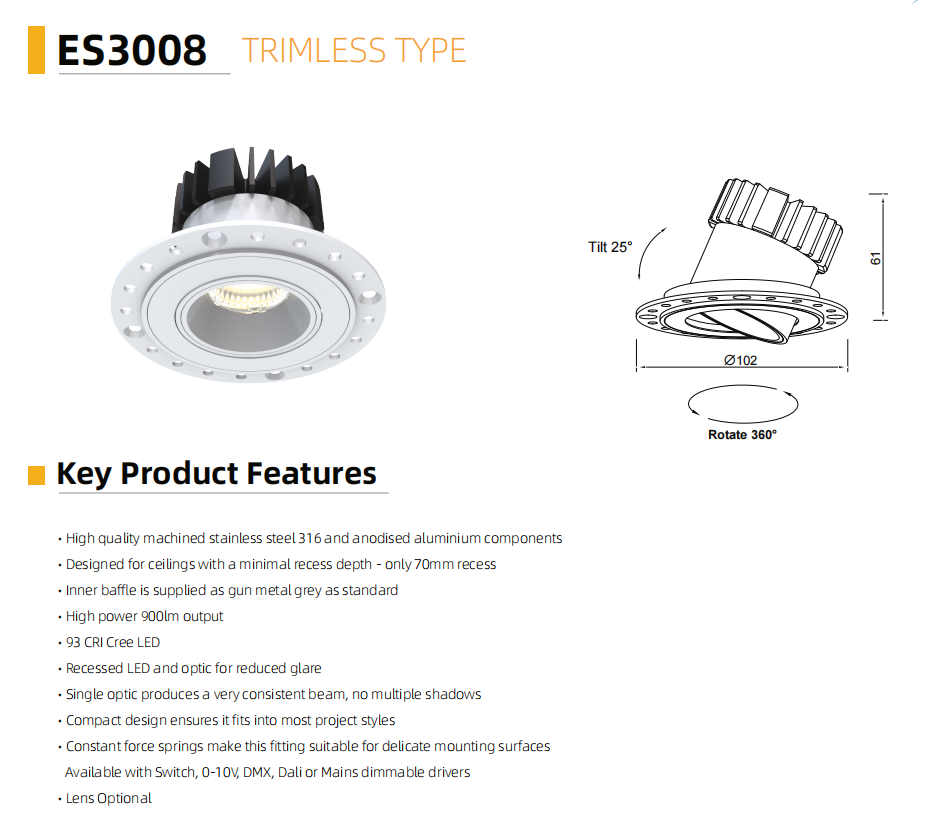

- It supports 360° full horizontal rotation plus 25° vertical tilt adjustment. After pre-embedded installation, the lighting direction can be freely rotated without secondary ceiling renovation to precisely aim at paintings, ornaments and display cabinets for directional accent lighting. Four color temperatures (2700K/3000K/4000K/5000K) and narrow beam angles of 18°/25°/40° are optional for accurate targeted spotlighting.
- The minimum ceiling recess depth is only 70mm and the lamp height is merely 61mm with ultra-thin body, matching standard cutout size Φ80mm for easy installation even in shallow ceilings with limited pre-buried space. It adopts constant-force spring clips with even and gentle clamping force to avoid cracking damage when mounted on fragile ceiling materials like gypsum board and decorative panels. With IP44 dustproof and splash-proof rating, it is applicable to humid and dusty areas including bathrooms, ship cabins and coastal zones.
- It is powered by AC220-240V mains electricity and compatible with multiple dimming drivers including On/Off switch, 0-10V, DMX, DALI and Bluetooth smart driver, supporting dual CCT switching, preset dimming and tunable white functions. With CE certification, the integrated fin aluminum heat sink on the rear rapidly dissipates operating heat to prevent premature light source damage caused by heat accumulation. It can be purchased in bulk for residential decoration, commercial engineering and marine vessel projects.

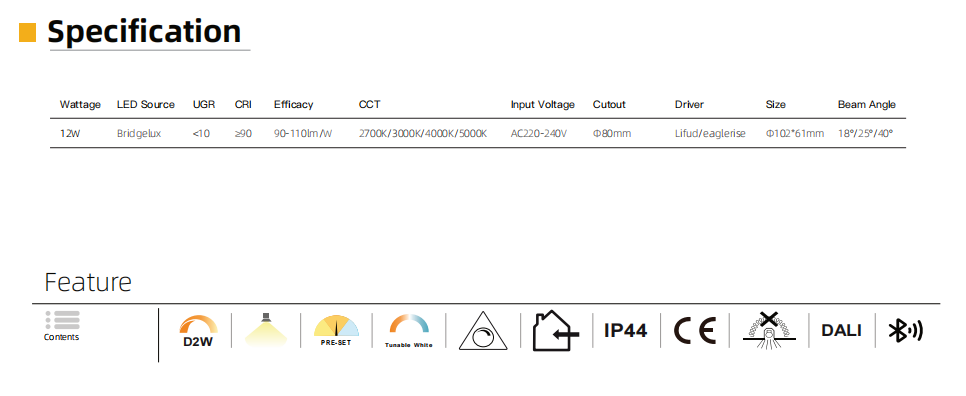

Technical information
