MEGA 12W
Product ID: ES3007
Product description

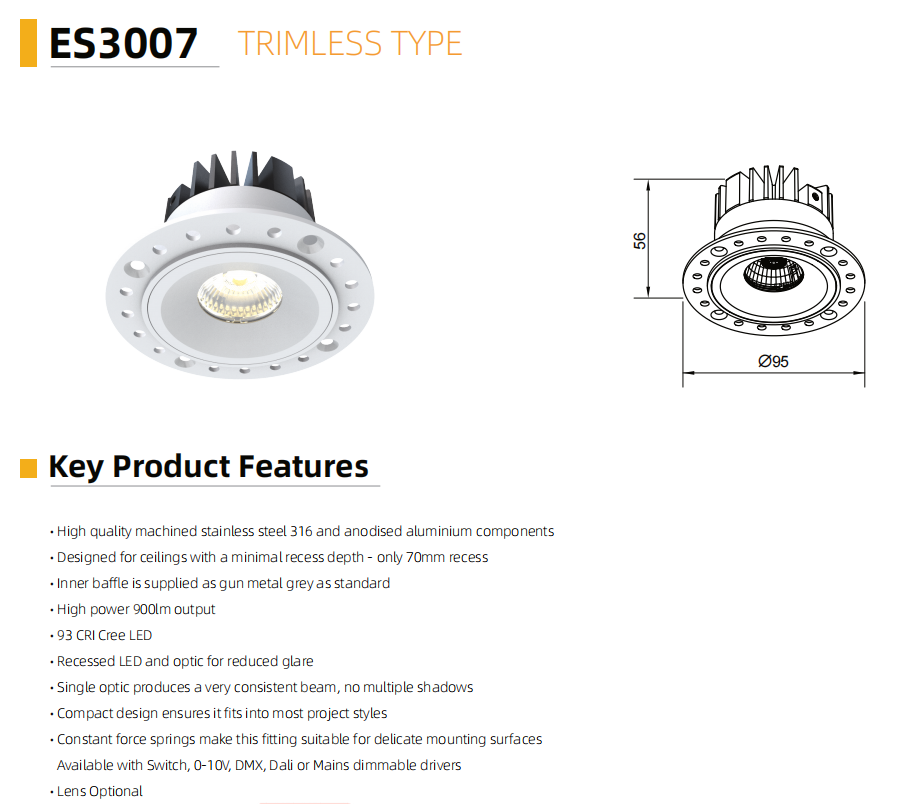

- It is a trimless pre-embedded recessed fixture with standard 12W power. It can adopt Bridgelux LED or be upgraded to CREE LED, and the high-end version can reach a maximum luminous flux of 900lm. The standard model has CRI≥90 while the CREE upgraded version reaches CRI 93. With luminous efficacy of 90-110lm/W, it provides bright and energy-saving lighting with slight light decay during long-term service and lifelike color rendering.
- The main body is precisely machined from 316 stainless steel and anodized aluminum, which is resistant to salt spray and moisture corrosion, suitable for harsh high-humidity and salt-containing environments such as yachts, ships and marine outdoor scenarios. It is factory equipped with gunmetal grey anti-glare inner baffle and recessed optical structure for deep anti-glare effect with UGR＜10. The single optical lens outputs even and pure beam without multiple overlapping shadows and stray light.
- Four color temperatures (2700K/3000K/4000K/5000K) are optional together with narrow beam angles of 18°/25°/40° for precise targeted spotlighting. The minimum ceiling recess depth is only 70mm and the total lamp height is merely 56mm. The ultra-thin body fits shallow ceilings with limited pre-buried space perfectly. It matches standard cutout size Φ68mm for high construction compatibility and easy installation.
- It adopts constant-force spring clip fixing structure with gentle and even clamping force, which avoids cracking and edge damage when installing on fragile ceiling materials such as gypsum board and decorative thin panels, and is compatible with various delicate mounting surfaces. It reaches IP44 dustproof and splash-proof protection grade, applicable to dusty and splash-prone humid areas including bathrooms, ship cabins and coastal zones.
- It accepts standard AC220-240V mains input and supports multiple dimming drivers including On/Off switch, 0-10V, DMX, DALI and Bluetooth smart driver, realizing intelligent functions like dual CCT switching, preset dimming and tunable white. With CE certification, the integrated fin aluminum heat sink dissipates operating heat rapidly to prevent premature light source damage caused by overheating. It can be purchased in bulk for residential decoration, commercial engineering and marine vessel projects.

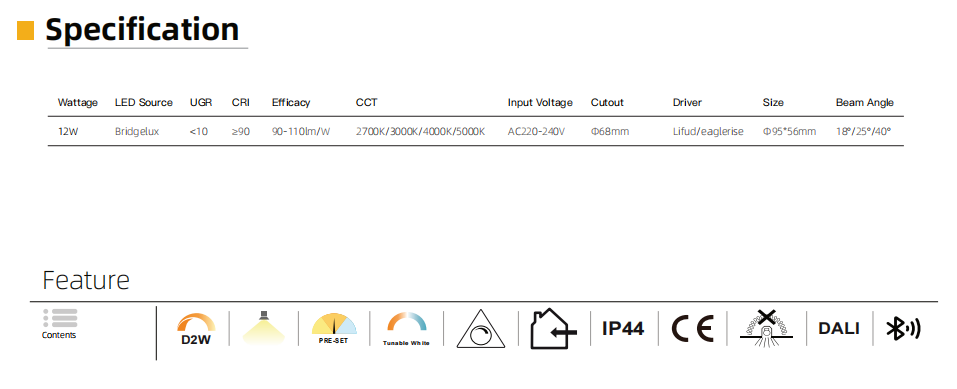

Technical information
