MEGA 12W
Product ID: ES3006
Product description
- It adopts trimless pre-embedded recessed structure with standard 12W power. It can be equipped with Bridgelux LED or upgraded to CREE LED, and the high-end version achieves maximum luminous flux up to 900lm. The regular model has CRI≥90 while the CREE upgraded version reaches CRI 93 for premium and delicate color rendering. With luminous efficacy of 90-110lm/W, it delivers energy-saving bright illumination with minimal light decay during long-term operation.
- Key components are precisely machined from 316 stainless steel and anodized aluminum, resisting salt spray corrosion and moisture erosion. It is specially designed for harsh high-salinity and high-humidity environments such as yachts, ships and marine outdoor scenes. It comes with standard gunmetal grey anti-glare inner baffle and UGR＜10 deep anti-glare design. The single optical lens outputs even and pure beam without multiple ghost shadows and stray light.

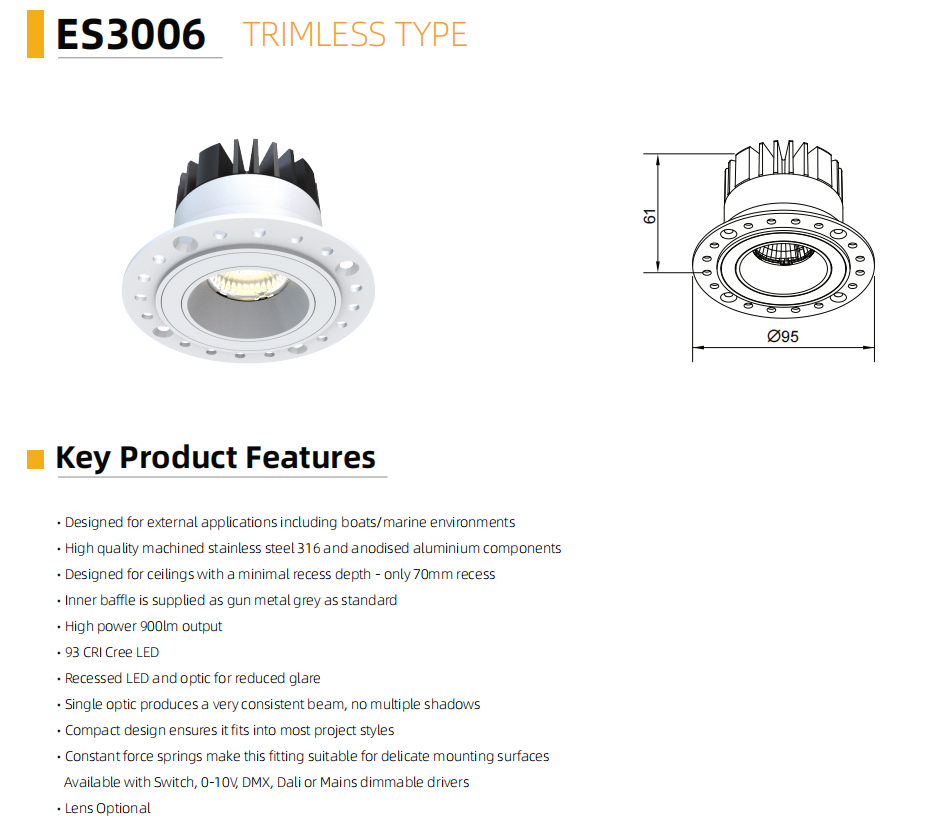

- Four color temperatures (2700K/3000K/4000K/5000K) are available for free switching, matched with three narrow beam angles of 18°/25°/40° for precise targeted spotlighting. The minimum ceiling recess depth is only 70mm and the lamp height is merely 61mm with ultra-thin compact structure. It fits standard cutout Φ68mm and can be easily installed even in shallow ceilings with limited pre-buried space.
- It adopts constant-force spring fixing structure with even and gentle clamping force, which avoids cracking and edge breakage when installing on fragile ceiling materials like gypsum board and decorative thin panels, compatible with various delicate ceiling surfaces. It is rated IP44 dustproof and splash-proof, suitable for humid and dusty areas including bathrooms, ship cabins and coastal zones.
- It is powered by AC220-240V mains electricity and supports multiple driver options including On/Off switch, 0-10V, DMX, DALI and mains dimming, realizing preset dimming, dual CCT switching and tunable white functions. With CE certification, the integrated fin aluminum housing dissipates operating heat rapidly to prevent premature light source damage caused by overheating. It can be purchased in bulk for residential decoration, commercial construction and marine vessel projects.

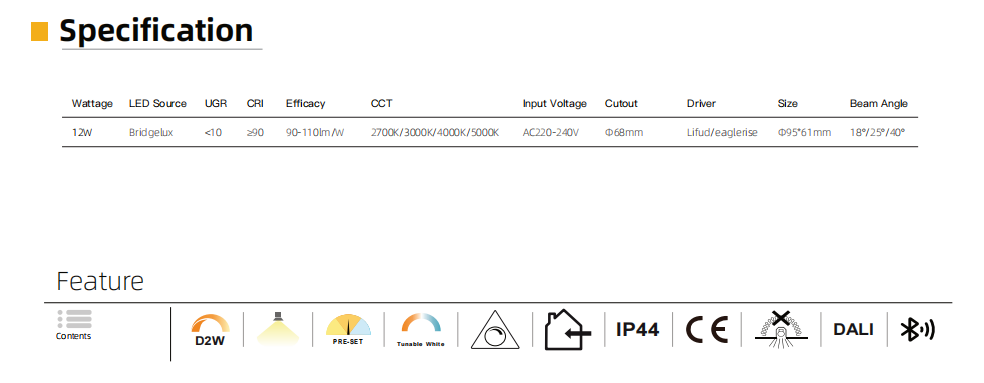

Technical information
