MEGA 100S 12W
Product ID: ES3005
Product description

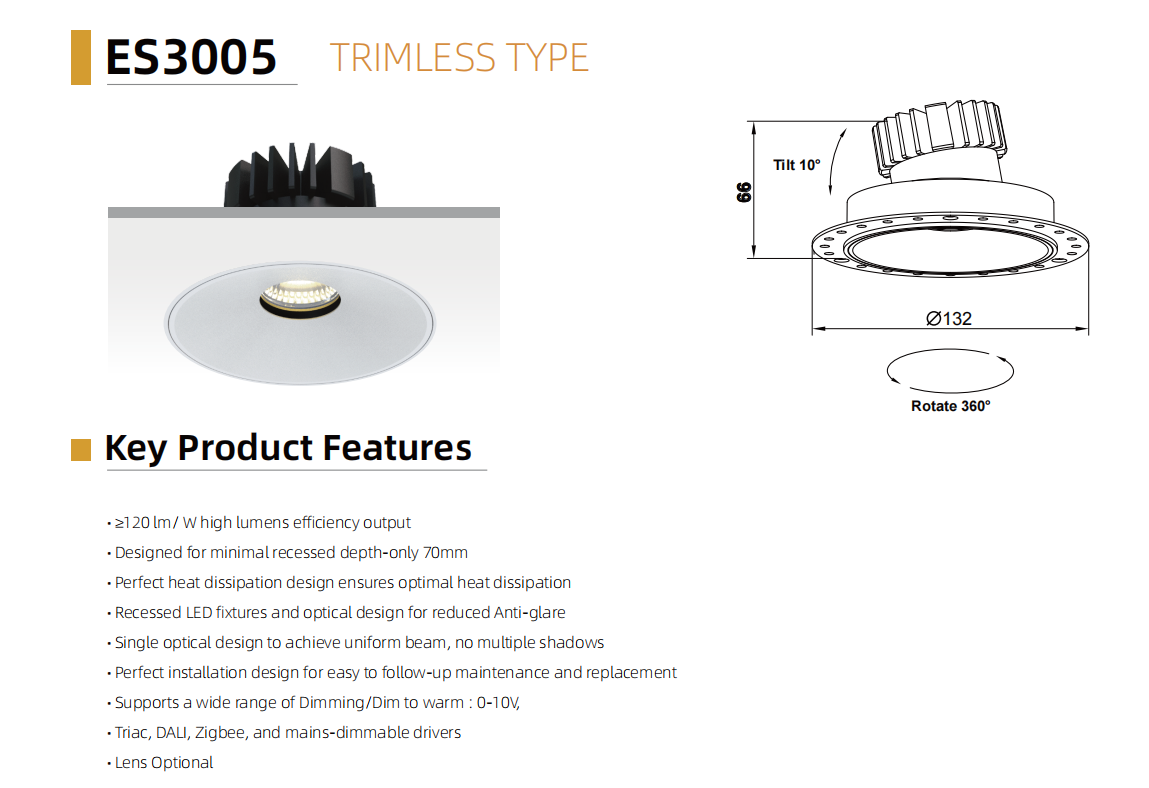

- It adopts trimless pre-embedded frameless design with fixed 12W power and original Bridgelux LED source. Its maximum luminous efficacy reaches 120lm/W with excellent photoelectric conversion efficiency, delivering sufficient brightness and energy saving as well as tiny light decay during long-term use. With CRI≥90 high color rendering index and UGR＜10 deep anti-glare design, it restores the true color of objects accurately and provides soft glare-free light.
- It supports 360° full horizontal rotation plus 10° vertical tilt angle adjustment. After pre-embedded installation, the lighting direction can be freely rotated without modifying the ceiling structure to flexibly aim at paintings, ornaments and exhibits for directional accent lighting, adapting to various personalized minimalist no-main-light layout schemes.
- Four color temperatures (2700K/3000K/4000K/5000K) are optional together with narrow beam angles of 18°/25°/40° for excellent targeted spotlight effect. The minimum ceiling recess depth is only 70mm and the lamp height is 66mm with ultra-thin body. It matches standard cutout size Φ102mm, enabling smooth installation even for shallow ceilings with limited pre-embedded space.
- The integrated multi-fin die-cast aluminum heat sink on the rear has large heat contact area and fast heat conduction to rapidly dissipate operating heat and prevent LED chip aging damage caused by heat accumulation. The single-lens optical design produces even and neat light spot without multiple ghost shadows and stray light for clean and premium lighting texture.
- It is powered by AC220-240V mains electricity and compatible with multiple intelligent dimming drivers including 0-10V, Triac, DALI, Zigbee and Bluetooth, supporting dual CCT switching, preset dimming and tunable white functions. It has IP44 dustproof & splash-proof rating and CE certification. The pre-embedded structure facilitates disassembly, maintenance and lamp replacement in later stage, suitable for bulk procurement and application in home decoration and outdoor commercial projects.

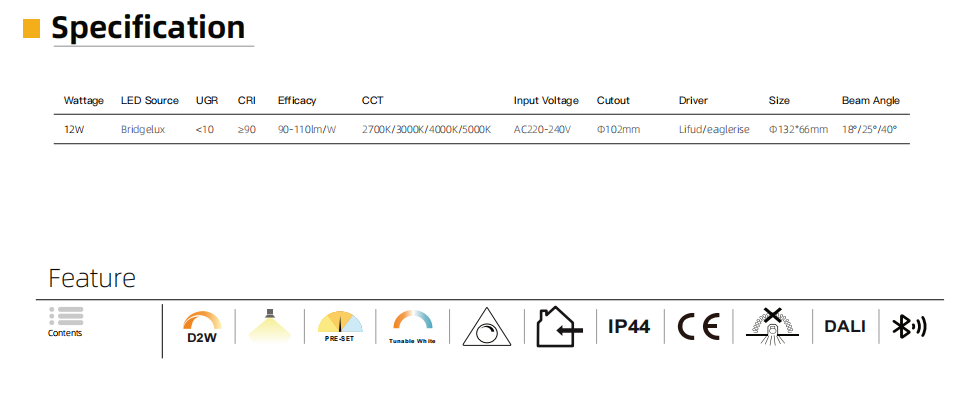

Technical information
