MEGA100S 6W/10W/15W
Product ID: ES3004
Product description
- It adopts trimless recessed frameless structure with three power options of 6W/10W/15W and original Bridgelux LED source. Its maximum luminous efficacy reaches 120lm/W with excellent photoelectric conversion efficiency, delivering bright energy-saving illumination and low light decay during long-term use. With CRI≥90 high color rendering index, it restores the true color and delicate texture of objects perfectly. UGR＜10 anti-glare design brings gentle and comfortable lighting experience.

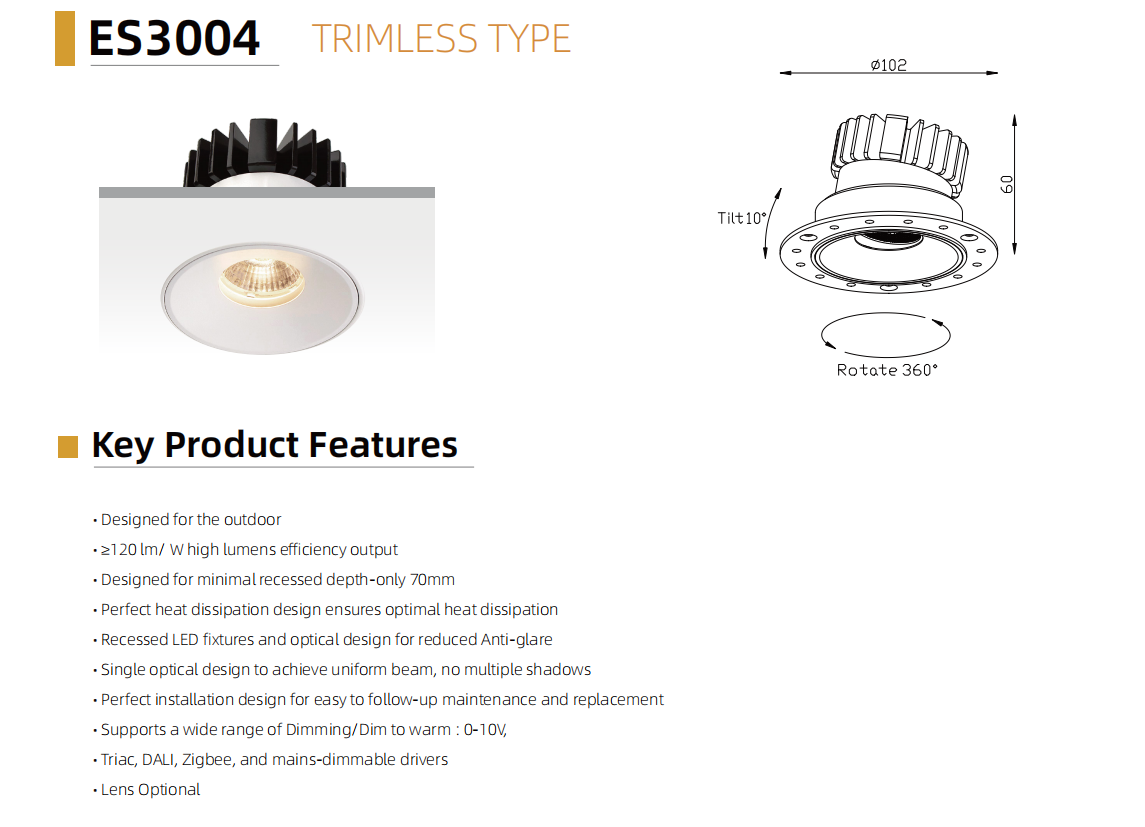

- It supports 360° full horizontal rotation plus 10° tilt angle adjustment. The lighting direction can be freely adjusted without ceiling modification to aim at paintings, ornaments and exhibits for directional accent lighting, perfectly matching various personalized no-main-light lighting layouts.
- Four color temperatures (2700K/3000K/4000K/5000K) and multiple narrow beam angles of 18°/25°/40° are optional for precise spotlighting. The minimum ceiling recess depth is only 70mm and the lamp height is 60mm with ultra-thin body. It is compatible with cutout sizes from Φ70mm to Φ75mm, enabling easy installation even for shallow ceilings with limited space.
- The integrated multi-fin die-cast aluminum heat sink on the back has large heat dissipation area and fast thermal conductivity to rapidly dissipate operating heat and prevent LED chip aging damage caused by heat accumulation. The single-lens optical design outputs even and tidy light spot without multiple overlapping shadows and stray light for premium and neat light effect.
- It works with AC220-240V mains electricity and supports various dimming drivers including 0-10V, Triac, DALI, Zigbee, Bluetooth and mains dimming, as well as dual CCT switching, preset dimming and tunable white functions. It is IP44 dustproof & splash-proof with CE certification. The pre-embedded structure allows convenient disassembly, maintenance and lamp replacement in later stage, suitable for bulk application in home decoration and small outdoor commercial projects.

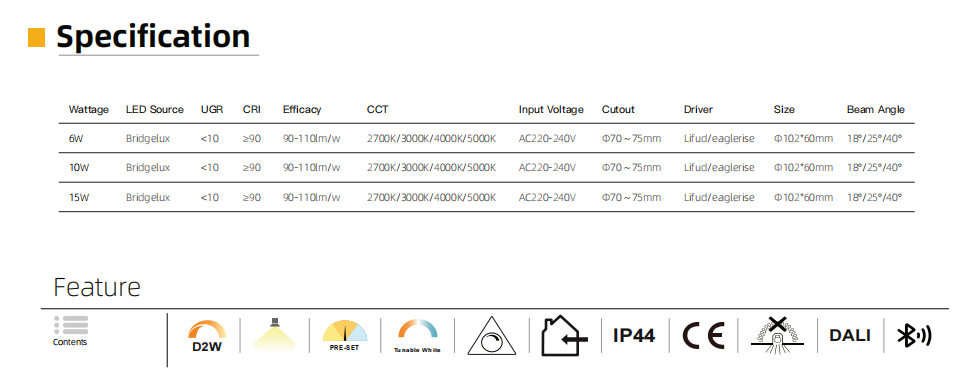

Technical information
