MEGA 100S 6W/10W/15W
Product ID: ES3002
Product description
- Three power options of 6W/10W/15W are available. It is equipped with standard Bridgelux LED and can be upgraded to CREE LED. The luminous efficacy ranges from 90 to 110lm/w, and the upgraded version achieves maximum luminous flux up to 900lm with high efficiency and energy saving as well as tiny light decay during long-term use. The regular model has CRI≥90, while the CREE version reaches CRI 93 to faithfully restore the true color and delicate texture of objects.
- The core structure is precisely machined from 316 stainless steel and anodized aluminum, which is resistant to salt spray and moisture corrosion. It is specially developed for harsh high-humidity and salt-containing outdoor scenarios such as yachts, ships and marine environments. It comes with standard gunmetal grey anti-glare inner baffle and UGR＜10 anti-glare structure. The single-lens optical system outputs even and tidy beam without multiple ghost shadows and stray light for gentle and comfortable vision.

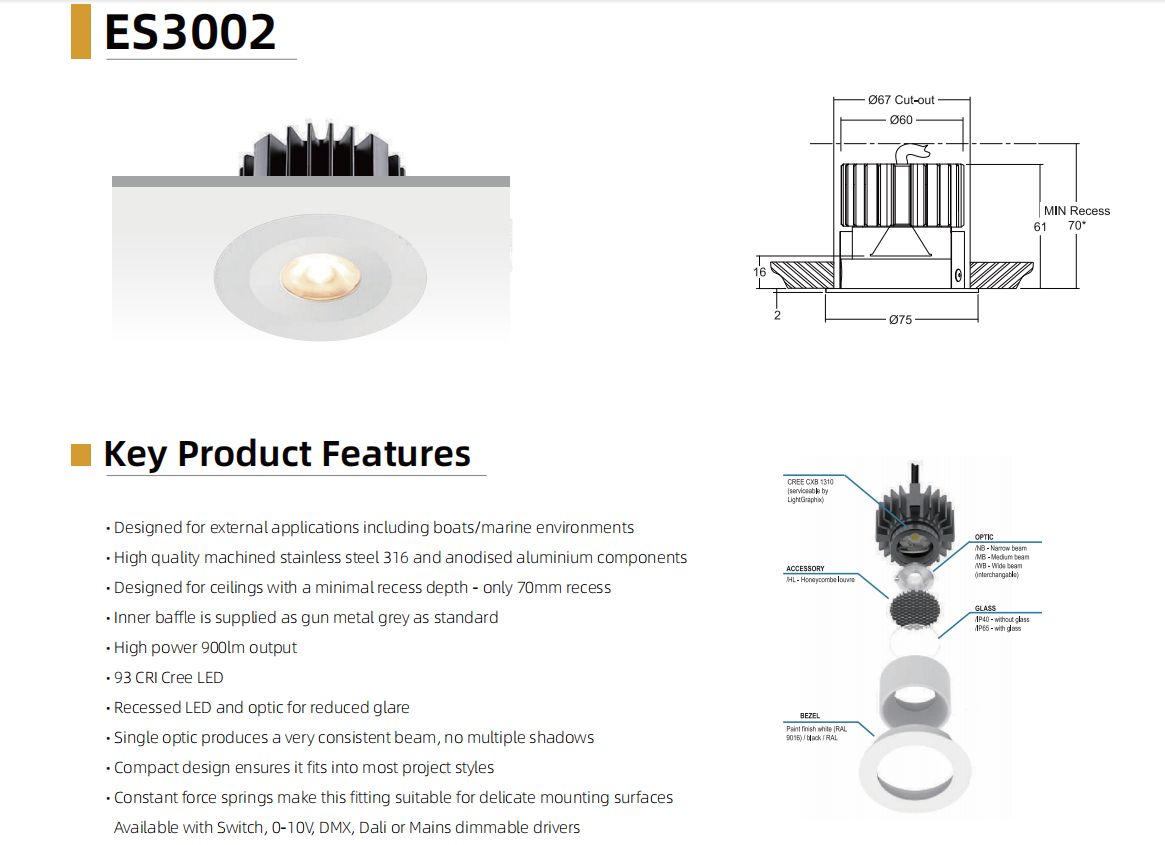

- Four color temperatures (2700K/3000K/4000K/5000K) and three narrow beam angles (18°/25°/40°) are optional for precise targeted spotlighting. The lamp height is only 58mm with a minimum ceiling recess depth of 70mm. The ultra-thin body fits shallow ceilings with limited installation space, and it is compatible with two standard cutout sizes Φ68mm and Φ70mm for excellent universality in engineering installation.
- It is rated IP44 dustproof and splash-proof to block dust and splashing water, suitable for dusty and wet areas including bathrooms, balconies, coastal spaces and ship cabins. Constant-force spring clips are adopted with even and gentle clamping force, which avoids cracking and edge damage when installing on fragile ceiling materials such as gypsum board and decorative thin panels, ensuring firm fixation without damaging the ceiling structure.
- It accepts AC220-240V mains input and supports multiple dimming drivers including on-off control, 0-10V, DMX, DALI and Bluetooth smart driver, realizing intelligent functions like dual CCT switching, preset dimming and tunable white. With CE certification, the integrated fin aluminum heat sink on the rear dissipates operating heat rapidly to prevent premature light source damage caused by heat accumulation. It can be purchased in bulk for residential decoration, commercial construction and marine vessel projects.

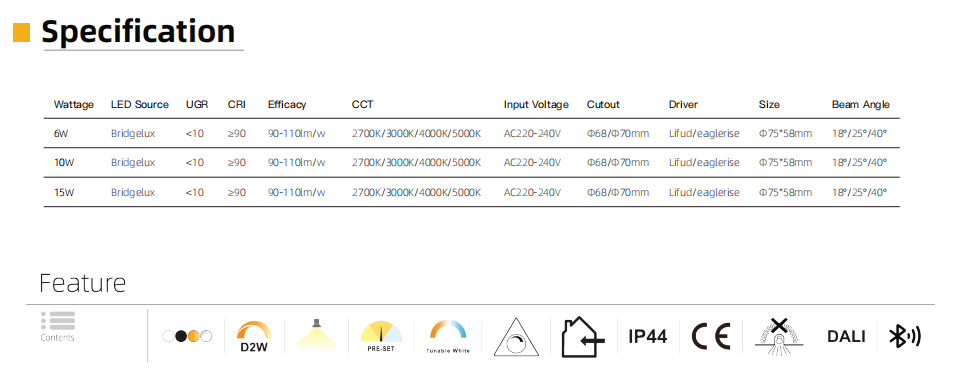

Technical information
