MEGA 100S 6W/10W/15W
Product ID: ES3001
Product description
- Multiple power options of 6W/10W/15W are available. It adopts dual mainstream LED source solutions including Bridgelux and CREE, with luminous efficacy ranging from 90 to 110lm/w and maximum light output up to 900lm. It features high photoelectric conversion efficiency, energy-saving bright illumination and low light decay for long stable service life, with a maximum CRI of 93 for top-tier color rendering.
- The main body is precisely machined from 316 stainless steel and anodized aluminum with excellent corrosion and moisture resistance, specially designed for harsh damp outdoor environments such as ships and marine applications. It comes with a standard gunmetal grey anti-glare inner baffle, UGR＜10 for deep glare reduction. The single optical lens delivers even and tidy beam without multiple shadows or stray light for comfortable vision.

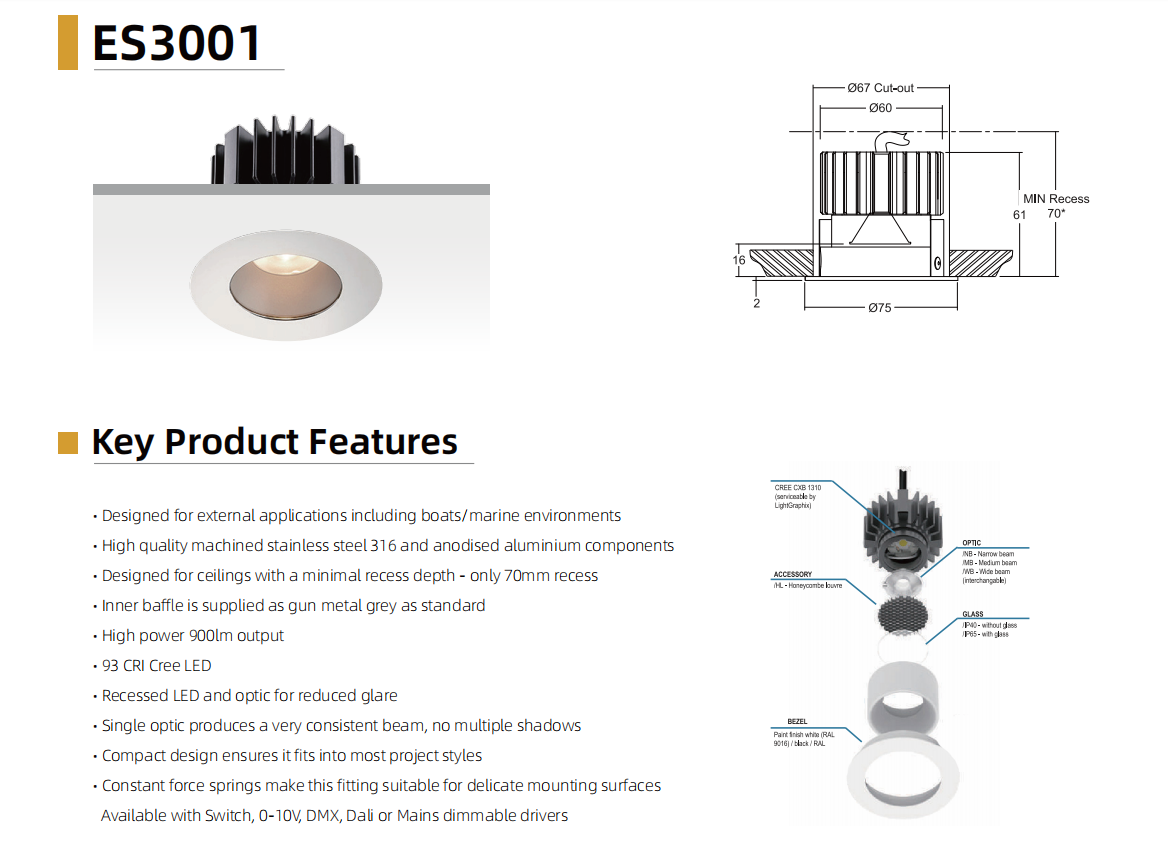

- Four color temperatures (2700K/3000K/4000K/5000K) and narrow beam angles of 18°/25°/40° are optional for precise fixed-point spotlighting. The minimum ceiling recess depth is only 70mm with an ultra-thin recessed structure, fitting narrow shallow ceiling installation space. It is compatible with two standard cutout sizes Φ68mm and Φ70mm for great construction adaptability.
- It reaches IP44 dustproof and splash-proof rating with moisture and dust resistance, suitable for humid and dusty areas such as bathrooms, yacht cabins and coastal spaces. Equipped with constant-force spring clips with gentle and even clamping force, it can be mounted on fragile ceiling materials like gypsum board and decorative panels without cracking or damage during installation.
- It works with AC220-240V mains electricity, and supports multiple dimming driver options including On/Off switch, 0-10V, DMX, DALI and Bluetooth smart control, as well as dual CCT switching, preset dimming and tunable white function. With CE certification, the integrated fin aluminum housing accelerates heat dissipation to avoid light source damage from overheating. It can be bulk ordered for residential decoration, commercial engineering and marine vessel projects.

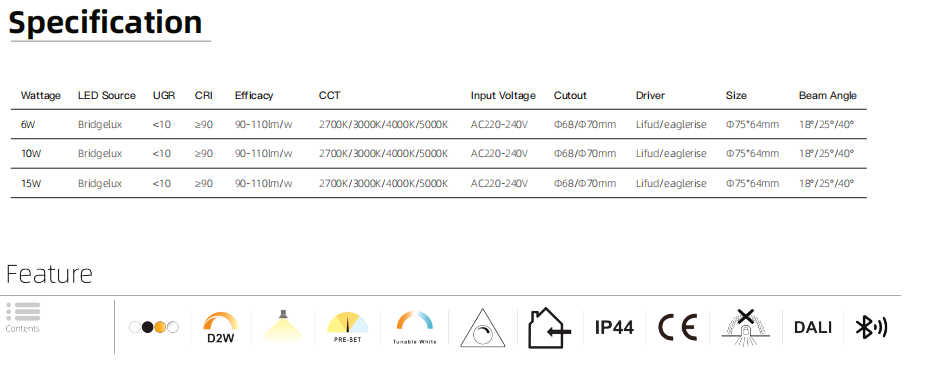

Technical information
